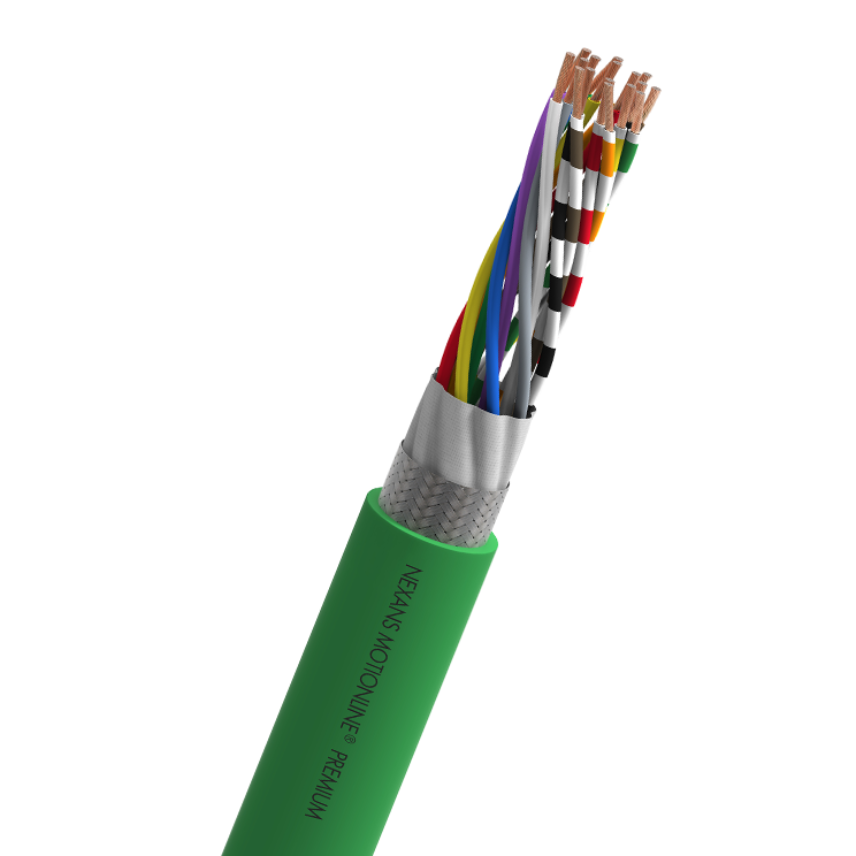

Measuring systems cables acc. to SIEMENS® standard 6FX8008PLUS for extremely dynamic applications, PUR jacket, shielded, oil resistant, flame retardant, halogen free
Read more13-MBS ((4x2x0,3)C+4x0,50)C
Product ref. 10553606 - Country ref. 13-MBS21Z12P-V1
- Packaging: Cut to length (m)
- Construction type: ((4x2x0.34)C + 4x0.50)C
- Nominal outer diameter: 8.9 mm
- Copper content: 79 kg/km
- Approximate weight: 116 kg/km
13-MBS (4x2x0.18)c
Product ref. 10553613 - Country ref. 13-MBS25P04P-V1
- Packaging: Cut to length (m)
- Construction type: (4x2x0.18)C
- Nominal outer diameter: 6.4 mm
- Copper content: 28 kg/km
- Approximate weight: 53 kg/km
13-MBS (8x2x0.18)C
Product ref. 10553616 - Country ref. 13-MBS25P08P-V1
- Packaging: Cut to length (m)
- Construction type: (8x2x0.18) C
- Nominal outer diameter: 7.8 mm
- Copper content: 55 kg/km
- Approximate weight: 82 kg/km
13-MYS (3x(2x0.14)C+(2x0.5)C)C
Product ref. 10554349 - Country ref. 13-MYS21Z08P-V1
- Packaging: Cut to length (m)
- Construction type: (3x(2x0.14)D+(2x0.5)D)C
- Nominal outer diameter: 9.0 mm
- Copper content: 68 kg/km
- Approximate weight: 107 kg/km
13-MYS (3x2x0.14)C+4x0.14+2x0.5)C
Product ref. 10554353 - Country ref. 13-MYS21Z12P-V1
- Packaging: Cut to length (m)
- Construction type: ((3x2x0.14)C+4x0.14+2x0.5)C
- Nominal outer diameter: 8.6 mm
- Copper content: 65 kg/km
- Approximate weight: 100 kg/km
13-MYS ((3x2x0.14)D+2x0.5+4x0.14+4x0.22)
Product ref. 10554360 - Country ref. 13-MYS21Z16P-V1
- Packaging: m
- Construction type: ((3x2x0.14)C+2x0.50+4x0.14+4x0.22)C
- Nominal outer diameter: 9.5 mm
- Copper content: 82 kg/km
- Approximate weight: 118 kg/km
13-MYS (12x0.22)C
Product ref. 10554182 - Country ref. 13-MYS24X12P-V1
- Packaging: Cut to length (m)
- Construction type: (12x0.22)C
- Nominal outer diameter: 6.9 mm
- Copper content: 48 kg/km
- Approximate weight: 69 kg/km
13-MBS (2x2x0.18)c
Product ref. 10558927 - Country ref. 6FX8008-1BD71
- Packaging: Cut to length (m)
- Construction type: (2x2x0.18)C
- Nominal outer diameter: 5.0 mm
- Copper content: 25 kg/km
- Approximate weight: 33 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
UL Recognized / CSA Approval
UL AWM 80°C 30V
CSA AWM I/II A/B 75°C 30V
Oil resistance:
IEN 60811-2-1
Flame retardant:
IEC 60332-1-2, CSA FT1, UL1581, EN 50265-2-1
Toxicity:
Halogen free
Design
- Conductor: Tinned copper
- Insulation: PP
- Stranding: See product table
- Shield: Tinned copper braid
- Jacket: PUR
- Colour: Green, RAL 6018
