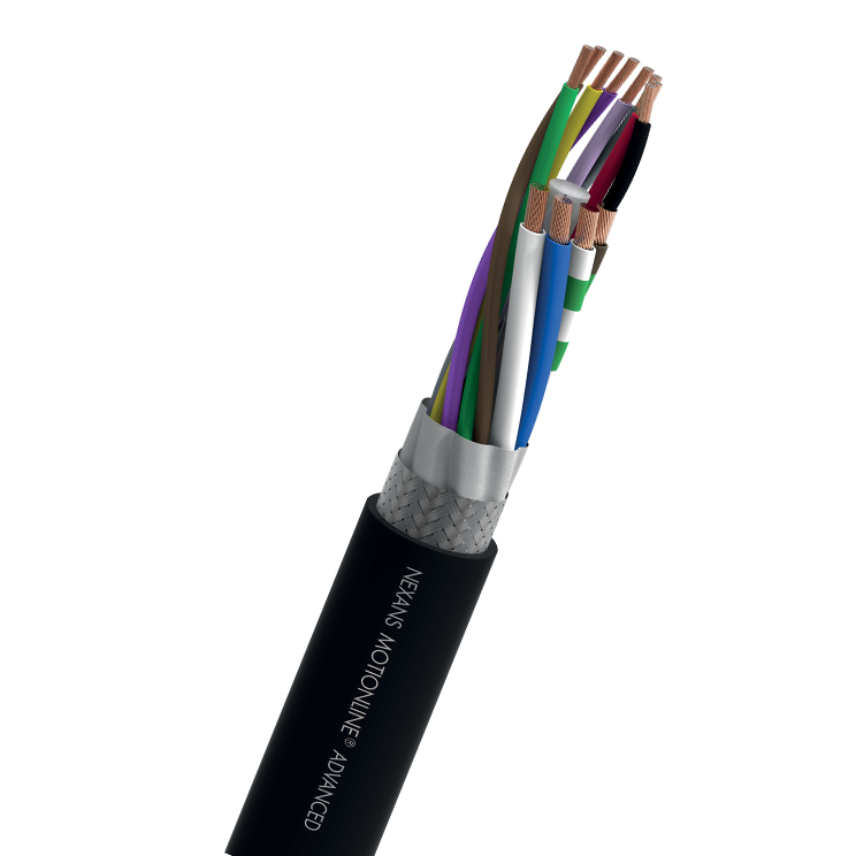

Measuring systems cables according to Heidenhain standard for dynamic applications, PUR jacket, shielded, resistant to oils, flame retardant, halogen-free
Read more13-MY (3x(2x0.14)D+2x(1)D)C
Product ref. 10554327 - Country ref. 13-MY17Z08P
- Packaging: Cut to length (m)
- Construction type: (3x(2x0.14)C+2x(1)C)C
- Sheath colour: Black
- Nominal outer diameter: 9.1 mm
- Copper content: 72 kg/km
- Approximate weight: 72 kg/km
13-MY (3x(2x0.14)D+2x(0.5)D)C
Product ref. 10554330 - Country ref. 13-MY21Z08P
- Packaging: Cut to length (m)
- Construction type: (3x(2x0.14)D+(2x0.5)D)C
- Sheath colour: Black
- Nominal outer diameter: 8.3 mm
- Copper content: 64 kg/km
- Approximate weight: 129 kg/km
13-MY (3x(2x0.14)D+2x(0.5)D)C Green
Product ref. 10554333 - Country ref. 13-MY21Z08P-V2
- Packaging: Cut to length (m)
- Construction type: (3x(2x0.14)D+(2x0.5)D)C
- Sheath colour: Green RAL 6018
- Nominal outer diameter: 8.3 mm
- Copper content: 64 kg/km
- Approximate weight: 129 kg/km
13-MY (4x2x0.14+4x0.5)C Black
Product ref. 10554274 - Country ref. 13-MY21Z12P-N1
- Packaging: Cut to length (m)
- Construction type: (4x2x0.14+4x0.5)C
- Sheath colour: Black
- Nominal outer diameter: 8.5 mm
- Copper content: 53 kg/km
- Approximate weight: 83 kg/km
13-MY (4x2x0.14+4x0.5)C Green
Product ref. 10554277 - Country ref. 13-MY21Z12P-V1
- Packaging: Cut to length (m)
- Construction type: (4x2x0.14+4x0.5)C
- Sheath colour: Green RAL 6018
- Nominal outer diameter: 8.5 mm
- Copper content: 53 kg/km
- Approximate weight: 83 kg/km
13-MY (4x2x0.14+4x0.5+(4x0.14)C)C
Product ref. 10554279 - Country ref. 13-MY21Z16P-N1
- Packaging: Cut to length (m)
- Construction type: (4x2x0.14+4x0.5+(4x0.14)C)C
- Sheath colour: Black
- Nominal outer diameter: 8.3 mm
- Copper content: 75 kg/km
- Approximate weight: 75 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
Normative References:
UL-CSA approval
Oil resistance:
IEC 50363-10-2
Flame retardant:
IEC 60332-1-2
FT1
UL 1581
EN 50265-2-1
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Tinned copper
Insulation
TPE-E
Insulation colour
See Tab
Taping
Soft tape
Shielding
≥85% tinned copper braid coverage
Outer sheath
PUR
Halogen free
Yes
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U
30 V
Test voltage
1500 V
Mechanical characteristics
Mechanical characteristics
Maximum acceleration
20 m/s²
Bending cycles
5 Mio.
Speed
240 m/min
Usage characteristics
Usage characteristics
Field of application
Dynamic
Minimum dynamic operating bending radius
10 (xD)
Storage temperature, range
-40 ... 80 °C
Operating temperature, range
-30 ... 80 °C
Oil resistance
EN 50363-10-2
Flame retardant
IEC/EN 60332-1-2; FT1; UL 1581 FT1
