MEASURING SYSTEMS PUR CABLES ACC. TO FANUC STD.
MEASURING SYSTEMS PUR CABLES ACC. TO FANUC STD.

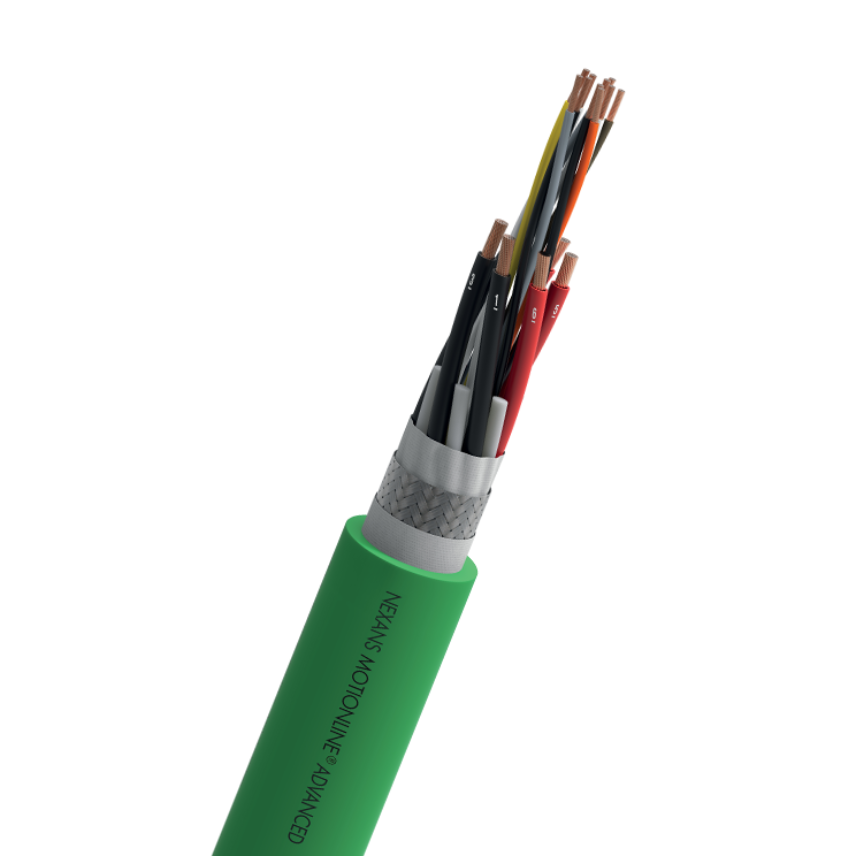

Measuring systems cables according to FANUC standard for dynamic applications, PUR jacket, shielded, resistant to oils, flame retardant, halogen free
Read more13-MYF - 3X2X0.18 + 6X1.0
Product ref. 10554367 - Country ref. 13-MYF17Z12P-V1
- Packaging: Cut to length (m)
- Construction type: (3x2x0.18+6x1)C
- Nominal outer diameter: 8.7 mm
- Copper content: 88 kg/km
- Approximate weight: 129 kg/km
13-MYF - 1x2x0.18 + 5x0.5
Product ref. 10554368 - Country ref. 13-MYF21Z07P-V1
- Packaging: Cut to length (m)
- Construction type: (1x2x0.18+5x0.5)C
- Nominal outer diameter: 7.6 mm
- Copper content: 45 kg/km
- Approximate weight: 83 kg/km
13-MYF - 5x0.50 + 2x2x0.18
Product ref. 10554370 - Country ref. 13-MYF21Z09P-V1
- Packaging: Cut to length (m)
- Construction type: (2x2x0.18+5x0.5)C
- Nominal outer diameter: 7.7 mm
- Copper content: 47 kg/km
- Approximate weight: 83 kg/km
13-MYF - 4X2X0.22 + 2X0.5
Product ref. 10554372 - Country ref. 13-MYF21Z10P-V1
- Packaging: Cut to length (m)
- Construction type: (4x2x0.22+2x0.5)C
- Nominal outer diameter: 7.6 mm
- Copper content: 72 kg/km
- Approximate weight: 85 kg/km
13-MYF - 3X2X0.18 + 6X0.5
Product ref. 10554373 - Country ref. 13-MYF21Z12P-V1
- Packaging: Cut to length (m)
- Construction type: (3x2x0.18+6x0.5)C
- Nominal outer diameter: 8.7 mm
- Copper content: 64 kg/km
- Approximate weight: 100 kg/km
13-MYF - 5X2X0.18 + 6X0.5
Product ref. 10554376 - Country ref. 13-MYF21Z16P-V1
- Packaging: Cut to length (m)
- Construction type: (5x2x0.18+6x0.5)C
- Nominal outer diameter: 8.7 mm
- Copper content: 71 kg/km
- Approximate weight: 110 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
Design
Insulation colour code:
1x2x0.18 mmq:
Brown + White
5x0.5 mmq:
Blue + Pink + Green + Yellow + Grey
2x2x0.18 mmq :
(Brown + White) + (Violet + Black)
5x0.5 mmq:
Blue + Pink + Green + Yellow + Grey
4x2x0.22 mmq:
(Brown + Black) + (Brown/Red)
(Yellow + Black) + (Yellow/Red)
(Green/Black) + (Green/Red)
(Grey/Black) + (Grey/Red)
2x0.5 mmq:
Brown + Yellow
3x2x0.18 mmq:
(Red + White) + (Red + Black)
(Black + White)
6x0.5 mmq:
3 x Red num. 4-6 + 3 x Black num. 1-3
5x2x0.18 mmq:
(Black + Orange) + (Black + Grey)
(White + Yellow) + (White + Grey) + (White + Brown)
6x0.5 mmq:
3 x Red num. 4-6 + 3 x Black num. 1-3
