MEASURING SYSTEM CABLES ACC. TO BOSCH REXROTH® STANDARD
MEASURING SYSTEM CABLES ACC. TO BOSCH REXROTH® STANDARD

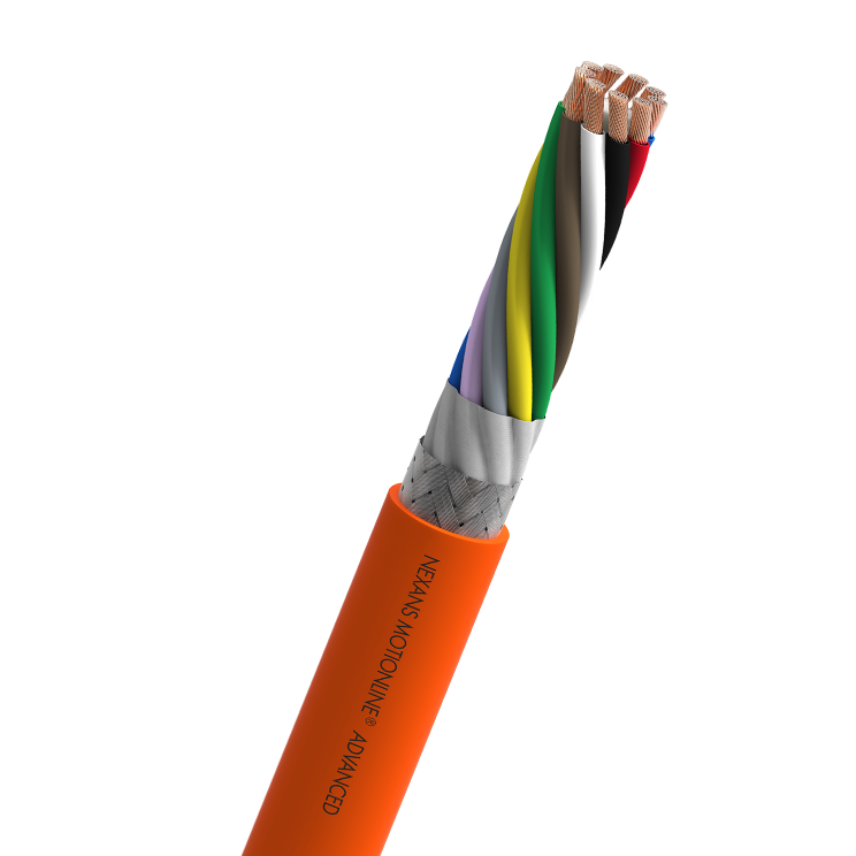

Measuring systems cables for very dynamic applications. MOTIONLINE® ADVANCED
Read moreMEASURING SYSTEM CABLES BOSCH REXROTH® IN 750
Nexans ref. 49387760 - Country ref. IN 750
- Packaging: Drum (1000m)
- Construction type: (2x2x0,25+2x0,5)C
- Outer Diameter: 7.8 mm
- Copper content: 40 kg/km
- Approximate weight: 82 kg/km
MEASURING SYSTEM CABLES BOSCH REXROTH® IN 209
Nexans ref. 49387060 - Country ref. IN 209
- Packaging: Drum (1000m)
- Construction type: (4x2x0.25+2x1)C
- Outer Diameter: 8.1 mm
- Copper content: 59 kg/km
- Approximate weight: 90 kg/km
MEASURING SYSTEM CABLES BOSCH REXROTH® IN 448
Nexans ref. 49389060 - Country ref. IN 448
- Packaging: Drum (1000m)
- Construction type: (4x2x0.25+2x0.5)C
- Outer Diameter: 8.2 mm
- Copper content: 50 kg/km
- Approximate weight: 85 kg/km
MEASURING SYSTEM CABLES BOSCH REXROTH® IN 208
Nexans ref. 49386960 - Country ref. IN 208
- Packaging: Drum (1000m)
- Construction type: (9x0.5)C
- Outer Diameter: 8.9 mm
- Copper content: 68 kg/km
- Approximate weight: 111 kg/km
MEASURING SYSTEM CABLES BOSCH REXROTH® IN 532
Nexans ref. 49389260 - Country ref. IN 532
- Packaging: Drum (1000m)
- Construction type: (4x2x0,14+4x1,0+(4x0,14)C)C
- Outer Diameter: 9.1 mm
- Copper content: 88 kg/km
- Approximate weight: 131 kg/km
MEASURING SYSTEM CABLES BOSCH REXROTH® IN 280
Nexans ref. 49389960 - Country ref. IN 280
- Packaging: Drum (1000m)
- Construction type: (3x0,25+3x(2x0,25)+2x1,0)C
- Outer Diameter: 9.3 mm
- Copper content: 87 kg/km
- Approximate weight: 127 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
For very dynamic applications; PUR Jacket, screened, resistant to oils and coolants, notch resistant, flame retardant, resistant to hydrolysis and microbes, PVC- and halogen-free.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Bending-resistant conductor with tinned copper wires
Insulation
TPM with very low capacitance
Insulation colour
See Tab
Screen
Tinned copper braid, coverage ≥ 80%
Outer sheath
PUR
Sheath colour
Orange RAL 2003
Halogen free
Yes
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U
30 V
Test voltage
300 V
Mechanical characteristics
Mechanical characteristics
Bending cycles
10 Mio.
Speed
180 m/min
Maximum acceleration
20 m/s²
Usage characteristics
Usage characteristics
Field of application
Dynamic
Minimum dynamic operating bending radius
10 (xD)
Operating temperature, range
-15 ... 80 °C
Storage temperature, range
-40 ... 80 °C
Flame retardant
IEC 60332-1-2; UL 1581 FT1
Oil resistance
DIN EN 50363-10-2 & DIN EN 60811-404
