MOTIONLINE® PREMIUM 90° WITH PAIR
MOTIONLINE® PREMIUM 90° WITH PAIR

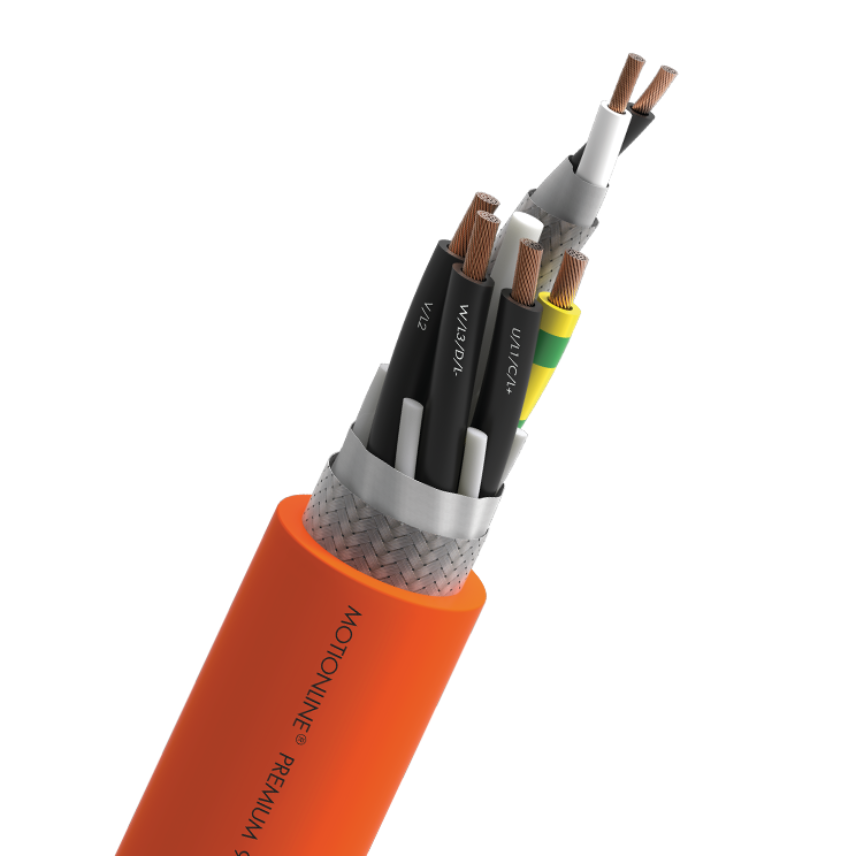

Servo cables for high demanding applications in terms of temperature and mechanical stress.
Read moreP90° (4G1,5+(2x1,5)C)C
Nexans ref. 10561457
- Packaging: Cut to length (m)
- Construction type: (4G1.5 + (2x1.5)C)C
- Nominal outer diameter: 11.6 mm
- Copper content: 165 kg/km
- Approximate weight: 230 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
P90° (4G2,5+(2x1,5)C)C
Nexans ref. 10565713
- Packaging: Cut to length (m)
- Construction type: (4G2.5 + (2x1.5)C)C
- Nominal outer diameter: 13.4 mm
- Copper content: 208 kg/km
- Approximate weight: 300 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
P90° (4G4+(2x1,5)C)C
Nexans ref. 10565714
- Packaging: Cut to length (m)
- Construction type: (4G4 + (2x1.5)C)C
- Nominal outer diameter: 14.8 mm
- Copper content: 286 kg/km
- Approximate weight: 380 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
P90° (4G6+(2x1,5)C)C
Nexans ref. 10561458
- Packaging: Cut to length (m)
- Construction type: (4G6 + (2x1.5)C)C
- Nominal outer diameter: 16.8 mm
- Copper content: 402 kg/km
- Approximate weight: 530 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
P90° (4G10+(2x1,5)C)C
Nexans ref. 10565715
- Packaging: Cut to length (m)
- Construction type: (4G10 + (2x1.5)C)C
- Nominal outer diameter: 19.4 mm
- Copper content: 615 kg/km
- Approximate weight: 765 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
P90° (4G16+(2x1,5)C)C
Nexans ref. 10565716
- Packaging: Cut to length (m)
- Construction type: (4G16 + (2x1.5)C)C
- Nominal outer diameter: 23.1 mm
- Copper content: 890 kg/km
- Approximate weight: 1090 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
P90° (4G25+(2x1,5)C)C
Nexans ref. 10561459
- Packaging: Cut to length (m)
- Construction type: (4G25 +(2x1.5)C)C
- Nominal outer diameter: 26.6 mm
- Copper content: 1276 kg/km
- Approximate weight: 1530 kg/km
- Minimum dynamic operating bending radius: 10 (xD)
P90° (4G35+(2x1,5)C)C
Nexans ref. 10565717
- Packaging: Cut to length (m)
- Construction type: (4G35 +(2x1.5)C)C
- Nominal outer diameter: 30.9 mm
- Copper content: 1701 kg/km
- Approximate weight: 2040 kg/km
- Minimum dynamic operating bending radius: 10 (xD)
P90° (4G50+(2x1,5)C)C
Nexans ref. 10565718
- Packaging: Cut to length (m)
- Construction type: (4G50 + (2x1.5)C)C
- Nominal outer diameter: 34.0 mm
- Copper content: 2387 kg/km
- Approximate weight: 2760 kg/km
- Minimum dynamic operating bending radius: 10 (xD)
Description
Description
Standards
-
ProductUL and CSA approval
Servo cables suitable for high demanding applications in terms of temperature and mechanical stress. Flame retardant, oil resistand, PVC- and halogen free. Conform to Reach and RoHs. These cables can withstand operating temperatures up to 90°.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Bare copper
Insulation
Polyolefin-based compound
Insulation colour
Power: U/L1/C/L+ V/L2 W/L3/D/L- Ye/GN; Signal: Black - White
Lay Up
The elements are assembled to form cable core, with fillers if necessary
Taping
Non woven tape
Shielding
80% tinned copper braid coverage
Outer sheath
PUR
Sheath colour
Orange RAL 2003
Halogen free
Yes
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U
0.6/1 kV
Test voltage
4000 V
Mechanical characteristics
Mechanical characteristics
Maximum acceleration
50 m/s²
Bending cycles
10 Mio.
Speed
300 m/min
Usage characteristics
Usage characteristics
Field of application
Dynamic
Operating temperature, range
-30 ... 90 °C
Storage temperature, range
-50 ... 90 °C
Oil resistance
EN 50363-10-2 , EN 60811-2-1
Flame retardant
IEC 60332-1-2 , UL Cable Flame , CSA , FT1
