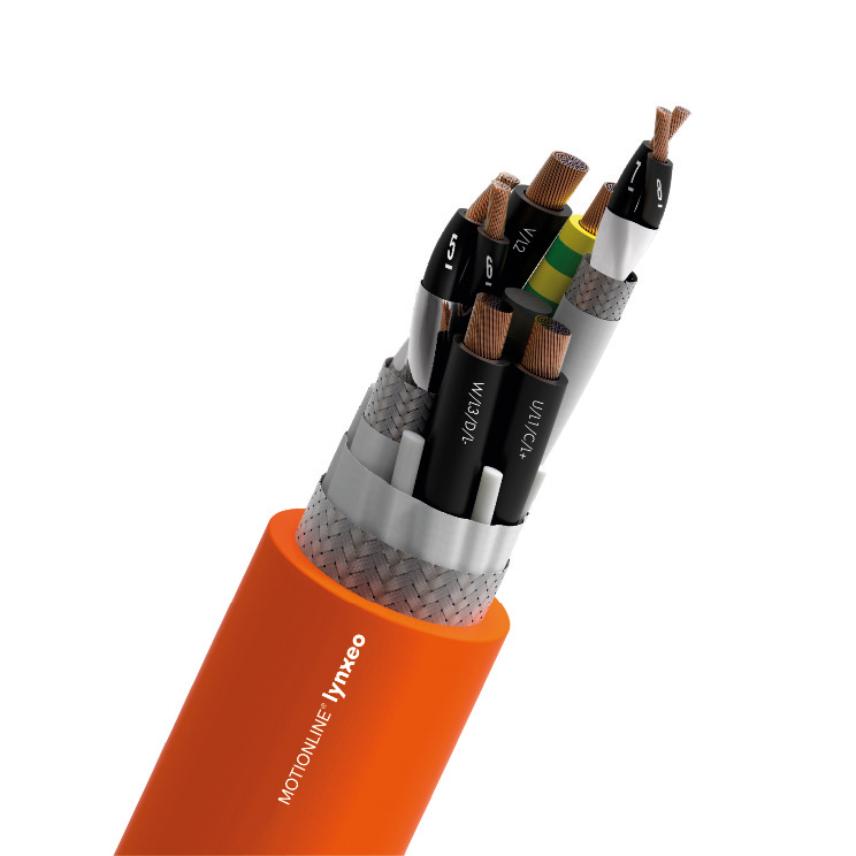

MOTIONLINE® PREMIUM SERVO 90 - BOSCH REXROTH STANDARD
MOTIONLINE® PREMIUM SERVO 90 - BOSCH REXROTH STANDARD
Servo motor cables with enhanced performance, suitable for BOSCH REXROTH standard, for extremely dynamic applications, PUR jacket, shielded, resistant to oils, flame retardant, halogen-free
Read more(4G0,75+(2x0,5))
Product ref. 10580821
- Packaging: Cut to length (m)
- Construction type: (4G0.75+(2x0.5)C)C
- Nominal outer diameter: 9.4 mm
- Copper content: - kg/km
- Approximate weight: - kg/km
(4G0,75+2x(2x0,34))
Product ref. 10580483
- Packaging: Cut to length (m)
- Construction type: (4G0.75 + 2x(2x0.34)C)C
- Nominal outer diameter: 9.6 mm
- Copper content: 93 kg/km
- Approximate weight: 140 kg/km
(4G1+2x(2x0,75))
Product ref. 10580421
- Packaging: m
- Construction type: (4G1.0 + 2x(2x0.75)C)C
- Nominal outer diameter: 11.6 mm
- Copper content: 170 kg/km
- Approximate weight: 210 kg/km
(4G1,5+2x(2x0,75))
Product ref. 10580422
- Packaging: m
- Construction type: (4G1.5 + 2x(2x0.75)C)C
- Nominal outer diameter: 12.2 mm
- Copper content: 189 kg/km
- Approximate weight: 240 kg/km
(4G2,5+2x(2x1))
Product ref. 10580423
- Packaging: m
- Construction type: (4G2.5 + 2x(2x1.0)C)C
- Nominal outer diameter: 14.6 mm
- Copper content: 234 kg/km
- Approximate weight: 300 kg/km
(4G4+(2x1)+(2x1,5))
Product ref. 10580424
- Packaging: m
- Construction type: (4G4 + (2x1.5)C + (2x1.0)C)C
- Nominal outer diameter: 16.3 mm
- Copper content: 320 kg/km
- Approximate weight: 450 kg/km
(4G6+(2x1)+(2x1,5))
Product ref. 10580477
- Packaging: Cut to length (m)
- Construction type: (4G6 +(2x1.5)C + (2x1.0)C)C
- Nominal outer diameter: 18.1 mm
- Copper content: 395 kg/km
- Approximate weight: 555 kg/km
(4G10+(2x1)+(2x1,5))
Product ref. 10580476
- Packaging: Cut to length (m)
- Construction type: (4G10 + (2x1.5)C + (2x1.0)C)C
- Nominal outer diameter: 21.8 mm
- Copper content: 620 kg/km
- Approximate weight: 810 kg/km
(4G16+2x(2x1,5))
Product ref. 10580475
- Packaging: Cut to length (m)
- Construction type: (4G16 + 2x(2x1.5)C)C
- Nominal outer diameter: 25.5 mm
- Copper content: 903 kg/km
- Approximate weight: 1150 kg/km
(4G25+2x(2x1,5))
Product ref. 10580474
- Packaging: Cut to length (m)
- Construction type: (4G25 + 2x(2x1.5)C)C
- Nominal outer diameter: 28.8 mm
- Copper content: 1310 kg/km
- Approximate weight: 1630 kg/km
(4G35+2x(2x1,5))
Product ref. 10580473
- Packaging: Cut to length (m)
- Construction type: (4G35 + 2x(2x1.5)C)C
- Nominal outer diameter: 30.9 mm
- Copper content: - kg/km
- Approximate weight: - kg/km
(4G50+2x(2x2,5))
Product ref. 10580472
- Packaging: Cut to length (m)
- Construction type: (4G50 +2x(2x2.5)C)C
- Nominal outer diameter: 36.3 mm
- Copper content: - kg/km
- Approximate weight: - kg/km
Description
Description
Standards
-
ProductUL and CSA approval
UL Recognized / CSA
UL AWM 90°C, 1000V
CSA AWM I/II A/B 90°C, 1000V
Oil Resistance:
EN 50363-10-2, EN 60811-2-1
Flame Resistance:
IEC 60331-1-2; CSA FT1
Toxicity:
Halogen free
Design
Conductor
Bare copper class 6
Core insulation
XLPE
Core stranding
Power cores stranded with fillers
Core identification
Power:
U/L1/C/L+; V/L2; W/L3/D/L; GN/YE
Signal:
Black numbered 5-6; 7-8
Shield
Total shield:
Tinned copper braid, coverage ≥ 85%
Pairs shield:
Tinned copper braid, coverage ≥ 85%
Jacket
PUR
Colour:
Orange RAL 2003
(available also in Green RAL 6018)
