SERVO CABLES PVC HIGH PERFORMANCE WITH PAIR
SERVO CABLES PVC HIGH PERFORMANCE WITH PAIR

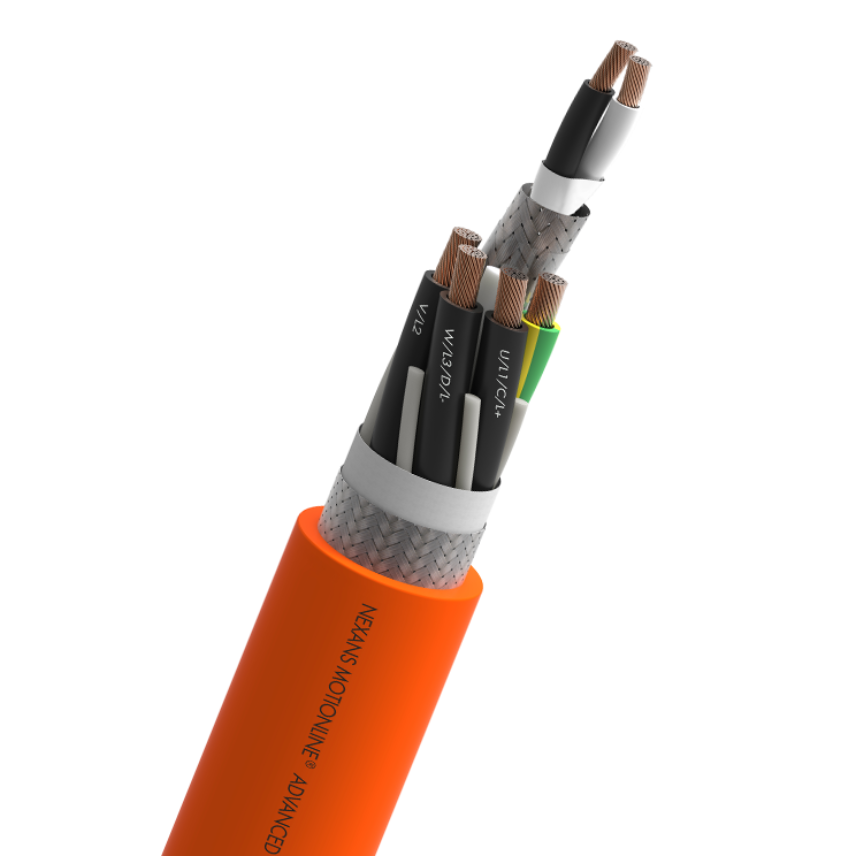

Servo cables with control pair for dynamic applications, PVC jacket, shielded, resistant to oils, flame retardant
Read more13-EYS (4G50 + (2x1,5)C)C
Product ref. 13-EYS01Z06R-A5 - Country ref. 13-EYS01Z06R-A5
- Packaging: Drum (1000m)
- Construction type: (4G50 + (2x1.5)C)C
- Nominal outer diameter: 34.0 mm
- Copper content: 2299 kg/km
- Approximate weight: 3040 kg/km
13-EYS (4G35 + (2x1,5)C)C
Product ref. 13-EYS02Z06R-A5 - Country ref. 13-EYS02Z06R-A5
- Packaging: Drum (1000m)
- Construction type: (4G35 +(2x1.5)C)C
- Nominal outer diameter: 30.9 mm
- Copper content: 1570 kg/km
- Approximate weight: 2025 kg/km
13-EYS (4G25 + (2x1,5)C)C
Product ref. 10553259 - Country ref. 13-EYS03Z06R-A5
- Packaging: Cut to length (m)
- Construction type: (4G2.5 + (2x1.5)C)C
- Nominal outer diameter: 26.6 mm
- Copper content: 1166 kg/km
- Approximate weight: 1430 kg/km
13-EYS (4G16 + (2x1,5)C)C
Product ref. 10553265 - Country ref. 13-EYS05Z06R-A5
- Packaging: Cut to length (m)
- Construction type: (4G16 + (2x1.5)C)C
- Nominal outer diameter: 23.1 mm
- Copper content: 803 kg/km
- Approximate weight: 990 kg/km
13-EYS (4G10 + (2x1,5)C)C
Product ref. 10553272 - Country ref. 13-EYS07Z06R-A5
- Packaging: Cut to length (m)
- Construction type: (4G10 + (2x1.5)C)C
- Nominal outer diameter: 19.4 mm
- Copper content: 560 kg/km
- Approximate weight: 692 kg/km
13-EYS (4G6 + (2x1,5)C)C
Product ref. 10553274 - Country ref. 13-EYS09Z06R-A5
- Packaging: Cut to length (m)
- Construction type: (4G6 + (2x1.5)C)C
- Nominal outer diameter: 16.8 mm
- Copper content: 364 kg/km
- Approximate weight: 488 kg/km
13-EYS (4G4 + (2x1,5)C)C
Product ref. 10553277 - Country ref. 13-EYS11Z06R-A5
- Packaging: Cut to length (m)
- Construction type: (4G4 + (2x1.5)C)C
- Nominal outer diameter: 14.8 mm
- Copper content: 272 kg/km
- Approximate weight: 362 kg/km
13-EYS (4G2,50 + (2x1,5)C)C
Product ref. 10553281 - Country ref. 13-EYS13Z06R-A5
- Packaging: Cut to length (m)
- Construction type: (4G2.5 + (2x1.5)C)C
- Nominal outer diameter: 13.4 mm
- Copper content: 204 kg/km
- Approximate weight: 283 kg/km
13-EYS (4G1,50 + (2x1,5)C)C
Product ref. 10553284 - Country ref. 13-EYS15Z06R-A5
- Packaging: Cut to length (m)
- Construction type: (4G1.5 + (2x1.5)C)C
- Nominal outer diameter: 11.6 mm
- Copper content: 155 kg/km
- Approximate weight: 223 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
Normative references:
UL recognised / CSA
AWM 80°C - 600V/1000V
AWM 80°C - 600V/1000V FT1
Oil resistance
IEC 50363-4-1
Flame retardant
IEC 60331-1-2; FT1; UL 1581; EN 50265-2-1
