SERVO CABLES ACC. TO SIEMENS STANDARD 6FX8008PLUS
SERVO CABLES ACC. TO SIEMENS STANDARD 6FX8008PLUS

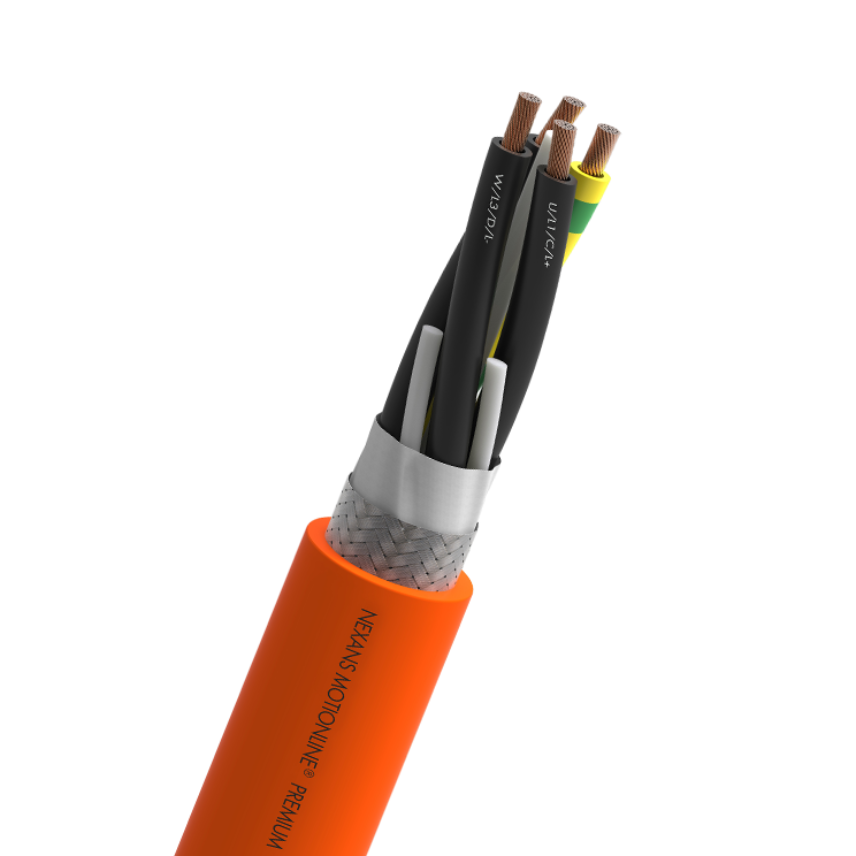

servo motor cables according to SIEMENS standard 6FX8008PLUS for extremely dynamic applications, PUR jacket, shielded, resistant to oils, flame retardant, halogen free
Read more13-EBU (4G1,0)C
Product ref. 10553112 - Country ref. 13-EBU17G04P
- Packaging: Cut to length (m)
- Construction type: (4G1)C
- Nominal outer diameter: 8.1 mm
- Copper content: 69 kg/km
- Approximate weight: 104 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
13-EBU (4G1,5)C
Product ref. 10553102 - Country ref. 13-EBU15G04P
- Packaging: Cut to length (m)
- Construction type: (4G1,5)C
- Nominal outer diameter: 9.1 mm
- Copper content: 98 kg/km
- Approximate weight: 150 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
13-EBU (4G2,5)C
Product ref. 10553094 - Country ref. 13-EBU13G04P
- Packaging: Cut to length (m)
- Construction type: (4G2,5)C
- Nominal outer diameter: 10.6 mm
- Copper content: 145 kg/km
- Approximate weight: 220 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
13-EBU (4G4)C
Product ref. 10553087 - Country ref. 13-EBU11G04P
- Packaging: Cut to length (m)
- Construction type: (4G4)C
- Nominal outer diameter: 11.7 mm
- Copper content: 215 kg/km
- Approximate weight: 300 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
13-EBU (4G6)C
Product ref. 10553080 - Country ref. 13-EBU09G04P
- Packaging: Cut to length (m)
- Construction type: (4G6)C
- Nominal outer diameter: 14.4 mm
- Copper content: 345 kg/km
- Approximate weight: 450 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
13-EBU (4G10)C
Product ref. 10553073 - Country ref. 13-EBU07G04P
- Packaging: Cut to length (m)
- Construction type: (4G10)C
- Nominal outer diameter: 17.5 mm
- Copper content: 531 kg/km
- Approximate weight: 660 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
13-EBU (4G16)C
Product ref. 10553069 - Country ref. 13-EBU05G04P
- Packaging: Cut to length (m)
- Construction type: (4G16)C
- Nominal outer diameter: 21.6 mm
- Copper content: 832 kg/km
- Approximate weight: 1010 kg/km
- Minimum dynamic operating bending radius: 7.5 (xD)
13-EBU (4G25)C
Product ref. 10553065 - Country ref. 13-EBU03G04P
- Packaging: Cut to length (m)
- Construction type: (4G25)C
- Nominal outer diameter: 25.2 mm
- Copper content: 1215 kg/km
- Approximate weight: 1420 kg/km
- Minimum dynamic operating bending radius: 10 (xD)
13-EBU (4G35)C
Product ref. 13-EBU02G04P - Country ref. 13-EBU02G04P
- Packaging: Drum (1000m)
- Construction type: (4G35)C
- Nominal outer diameter: 28.6 mm
- Copper content: 1506 kg/km
- Approximate weight: 1960 kg/km
- Minimum dynamic operating bending radius: 10 (xD)
13-EBU (4G50)C
Product ref. 13-EBU01G04P - Country ref. 13-EBU01G04P
- Packaging: Drum (1000m)
- Construction type: (4G50)C
- Nominal outer diameter: 33.4 mm
- Copper content: 2153 kg/km
- Approximate weight: 2700 kg/km
- Minimum dynamic operating bending radius: 10 (xD)
Description
Description
Standards
-
ProductUL and CSA approval
Design
Conductor
Standed Bare copper
Core insulation
Polyolefin
Core stranding
Power cores stranded with fillers
Core identification
Power:
U/L1/C/L+ V/L2
W/L3/D/L- Ye/Gr
Shield
Total Shield:
Tinned coppe braid, coverage ≥ 80%
Jacket
PUR
Colour: Orange RAL 2003
(available also in black)
Characteristics
Normative Reference
UL recognised / CSA
AWM 80°C - 600V/1000V
AWM 80°C - 600V/1000V FT1
Oil Resistance:EN 50363-10-2
Flame Resistance: IEC 60331-1-2; FT1; UL1581; EN 50265-2-1
Toxicity: Halogen free
