MOTIONLINE® PREMIUM SERVO - BOSCH REXROTH STANDARD
MOTIONLINE® PREMIUM SERVO - BOSCH REXROTH STANDARD

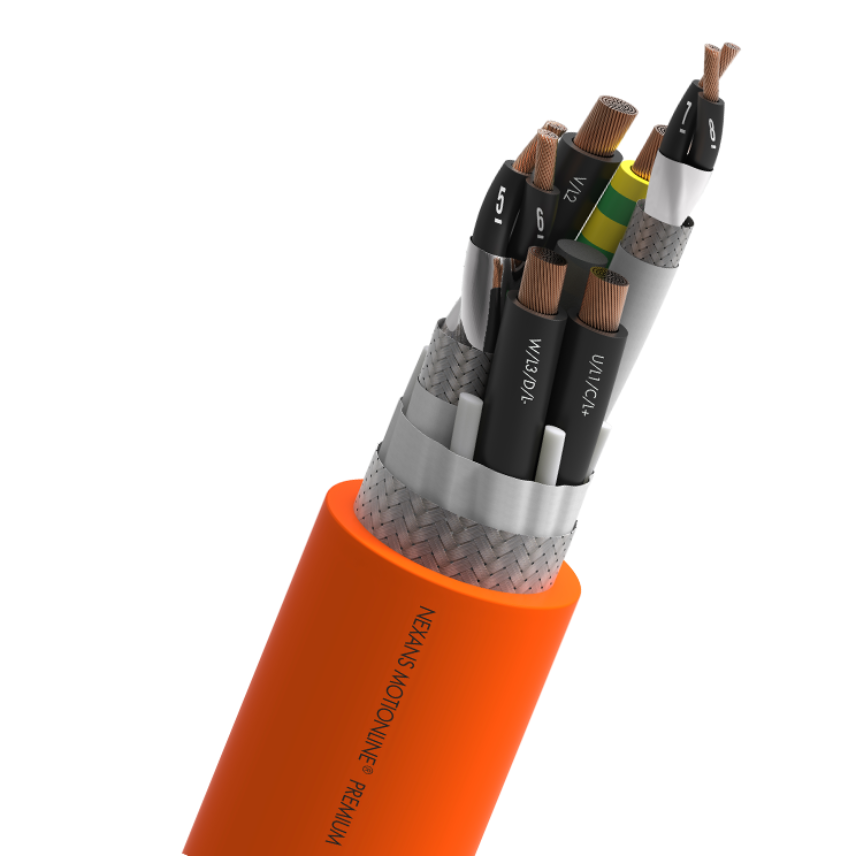

Servo cables according to BOSCH REXROTH standard for extremely dynamic applications, PUR jacket, shielded, resistant to oils, flame retardant, halogen-free
Read more(4G0,75 + 2x(2x0,34 )C)C
Product ref. 10553152 - Country ref. 13-EBY19Z08P-A5
- Packaging: Cut to length (m)
- Construction type: (4G0.75 + 2x(2x0.34)C)C
- Nominal outer diameter: 9.6 mm
- Copper content: 93 kg/km
- Approximate weight: 140 kg/km
(4G1,00 + 2x(2x0,75 )C)C
Product ref. 10553151 - Country ref. 13-EBY17Z08P-A5
- Packaging: Cut to length (m)
- Construction type: (4G1.0 + 2x(2x0.75)C)C
- Nominal outer diameter: 11.6 mm
- Copper content: 170 kg/km
- Approximate weight: 210 kg/km
(4G1,50 + 2x(2x0,75 )C)C
Product ref. 10553147 - Country ref. 13-EBY15Z08P-A5
- Packaging: Cut to length (m)
- Construction type: (4G1.5 + 2x(2x0.75)C)C
- Nominal outer diameter: 11.8 mm
- Copper content: 189 kg/km
- Approximate weight: 240 kg/km
(4G2,50 + 2x(2x1 )C)C
Product ref. 10553144 - Country ref. 13-EBY13Z08P-A5
- Packaging: Cut to length (m)
- Construction type: (4G2.5 + 2x(2x1.0)C)C
- Nominal outer diameter: 13.0 mm
- Copper content: 234 kg/km
- Approximate weight: 300 kg/km
(4G4 + (2x1)C+(2x1,5 )C)C
Product ref. 10553142 - Country ref. 13-EBY11Z08P-A5
- Packaging: Cut to length (m)
- Construction type: (4G4 + (2x1.5)C + (2x1.0)C)C
- Nominal outer diameter: 16.0 mm
- Copper content: 320 kg/km
- Approximate weight: 450 kg/km
(4G6 + (2x1)C+(2x1,5 )C)C
Product ref. 10553141 - Country ref. 13-EBY09Z08P-A5
- Packaging: m
- Construction type: (4G6 +(2x1.5)C + (2x1.0)C)C
- Nominal outer diameter: 18.1 mm
- Copper content: 395 kg/km
- Approximate weight: 555 kg/km
(4G10 + (2x1)C+(2x1,5 )C)C
Product ref. 10553140 - Country ref. 13-EBY07Z08P-A5
- Packaging: Cut to length (m)
- Construction type: (4G10 + (2x1.5)C + (2x1.0)C)C
- Nominal outer diameter: 20.4 mm
- Copper content: 620 kg/km
- Approximate weight: 810 kg/km
(4G16 + 2x(2x1,5)C)C
Product ref. 10553139 - Country ref. 13-EBY05Z08P-A5
- Packaging: Cut to length (m)
- Construction type: (4G16 + 2x(2x1.5)C)C
- Nominal outer diameter: 23.6 mm
- Copper content: 903 kg/km
- Approximate weight: 1150 kg/km
(4G25 + 2x(2x1,5 )C)C
Product ref. 10553138 - Country ref. 13-EBY03Z08P-A5
- Packaging: Cut to length (m)
- Construction type: (4G25 + 2x(2x1.5)C)C
- Nominal outer diameter: 27.6 mm
- Copper content: 1310 kg/km
- Approximate weight: 1630 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
UL Recognized / CSA
UL AWM 80°C 1000V
CSA AWM I/II A/B 80°C 1000V
Oil Resistance:
EN 60811-2-1
Flame Resistance:
EN 50265-2-1, CSA FT1, UL 1581
Toxicity:
Halogen free
Design
- Conductor: Stranded bare copper
- Core insulation: Polyolefin
- Core stranding: Power cores stranded with fillers
- Core identification:
Power: U/L1/C/L+; V/L2; W/L3/D/L-; GN/YE
Signal: Black numbered 5-6; 7-8 - Shield:
Total shield: Tinned copper braid,coverage ≥85%
Pairs shield: ALU/PET foil + Tinned copper braid,coverage ≥85% - Jacket: PUR
- Colour: Orange, RAL 2003
(available also in Green RAL 6018)
