SERVO CABLES ACC. TO DANAHER STANDARD
SERVO CABLES ACC. TO DANAHER STANDARD

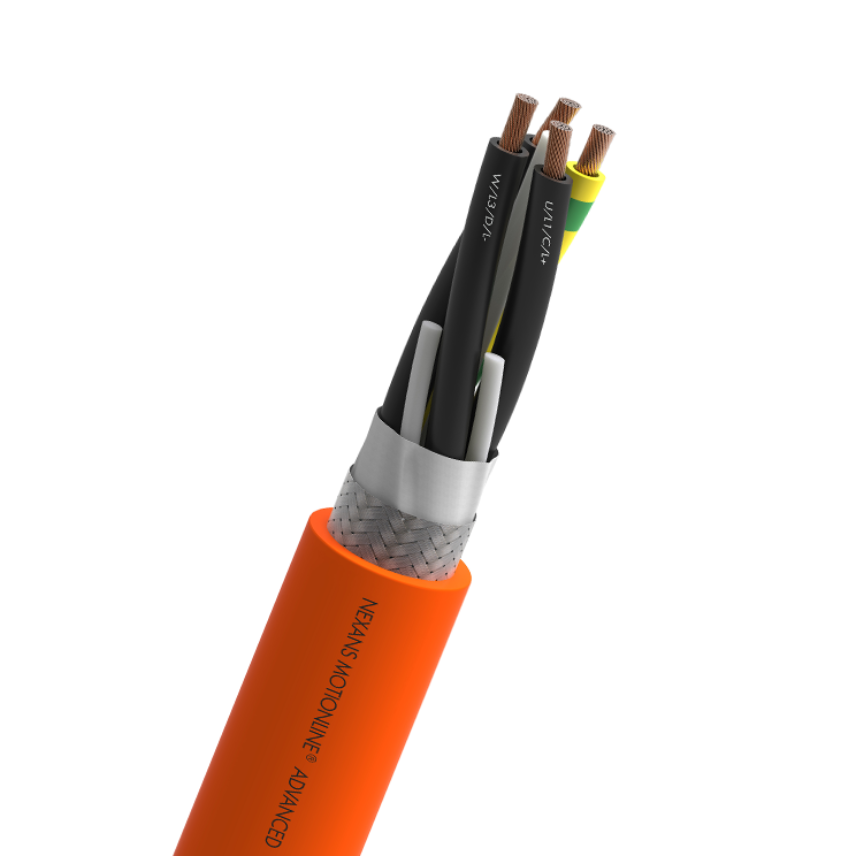

Servo cables according to DANAHER standard fpr dynamic applications, PUR jacket, shielded, resistant to oils, flame retardant, halogen free
Read more13-EBA (4G16)C
Product ref. 13-EBA05G04P-A3 - Country ref. 13-EBA05G04P-A3
- Packaging: Drum (1000m)
- Construction type: (4G16)C
- Nominal outer diameter: 21.4 mm
- Copper content: 736 kg/km
- Approximate weight: 910 kg/km
13-EBA (4G10)C
Product ref. 13-EBA07G04P-A3 - Country ref. 13-EBA07G04P-A3
- Packaging: Drum (1000m)
- Construction type: (4G10)C
- Nominal outer diameter: 18.1 mm
- Copper content: 469 kg/km
- Approximate weight: 603 kg/km
13-EBA (4G6)C
Product ref. 10552872 - Country ref. 13-EBA09G04P-A3
- Packaging: Cut to length (m)
- Construction type: (4G6)C
- Nominal outer diameter: 14.8 mm
- Copper content: 306 kg/km
- Approximate weight: 381 kg/km
13-EBA (4G4)C
Product ref. 10552874 - Country ref. 13-EBA11G04P-A3
- Packaging: Cut to length (m)
- Construction type: (4G4)C
- Nominal outer diameter: 13.2 mm
- Copper content: 203 kg/km
- Approximate weight: 290 kg/km
13-EBA (4G2,5)C
Product ref. 10552875 - Country ref. 13-EBA13G04P-A3
- Packaging: Cut to length (m)
- Construction type: (4G2,5)C
- Nominal outer diameter: 12.2 mm
- Copper content: 144 kg/km
- Approximate weight: 220 kg/km
13-EBA (4G1,5)C
Product ref. 10552879 - Country ref. 13-EBA15G04P-A3
- Packaging: Cut to length (m)
- Construction type: (4G1,5)C
- Nominal outer diameter: 10.6 mm
- Copper content: 96 kg/km
- Approximate weight: 147 kg/km
13-EBA (4G1,0)C
Product ref. 13-EBA17G04P-A3 - Country ref. 13-EBA17G04P-A3
- Packaging: Drum (1000m)
- Construction type: (4G1)C
- Nominal outer diameter: 8.8 mm
- Copper content: 62 kg/km
- Approximate weight: 110 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
Power
Rated voltage:
1000 V
Conductors:
Bare copper
Insulation material:
Polyolefin
Core identification:
(Black num. 1+3 + Green/Yellow)
Round cables
The conductors must be twisted with filler,if necessary, under tape
Shield:
Tinned copper braid covering > 85%
Binder tape:
Textile no textile
Jacket:
PUR
Colour:
ORANGE RAL 2003 (-A3)
BLACK (N3)
