AP32 VGRE MOTIONLINE® ADVANCED - SERVO CABLES ACC. TO LENZE STANDARD
AP32 VGRE MOTIONLINE® ADVANCED - SERVO CABLES ACC. TO LENZE STANDARD

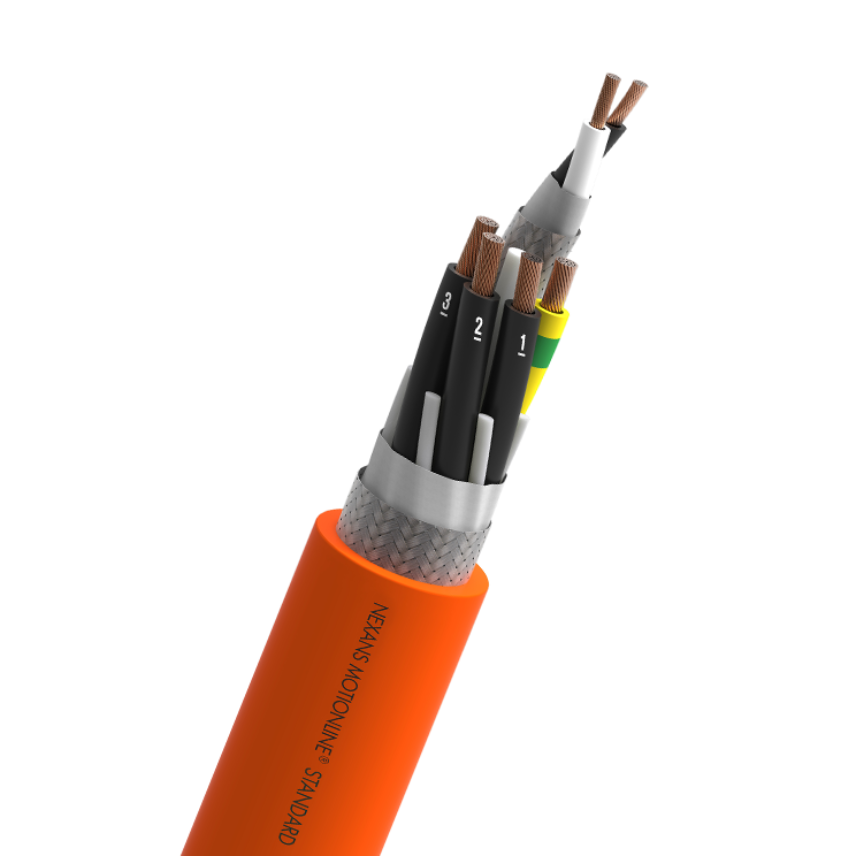

servo cables according to Lenze standard for dynamic applicatios, PUR jacket, shielded, resistant to oils, flame retardant
Read more(4G1,0 + (2x0,5)C)C
Product ref. 10552707 - Country ref. 13-EBE17Z06P-A1
- Packaging: Cut to length (m)
- Construction type: (4G1 + (2x0.5)C)C
- Insulation: Polyolefin
- Outer Diameter: 10 mm
- Copper content: 91 kg/km
- Approximate weight: 141 kg/km
(4G1,5 + (2x0,5)C)C
Product ref. 10552703 - Country ref. 13-EBE15Z06P-A1
- Packaging: Cut to length (m)
- Construction type: (4G1.5 + (2x0.5)C)C
- Insulation: Polyolefin
- Outer Diameter: 11.5 mm
- Copper content: 106 kg/km
- Approximate weight: 186 kg/km
(4G2,5 + (2x0,5)C)C
Product ref. - Country ref. 13-EBE13Z06P-A1
- Packaging: Drum (1000m)
- Construction type: (4G2.5 + (2x0.5)C)C
- Insulation: Polyolefin
- Outer Diameter: 13.2 mm
- Copper content: 153 kg/km
- Approximate weight: 246 kg/km
(4G4 + (2x1,0)C)C
Product ref. - Country ref. 13-EBE11Z06P-A1
- Packaging: Drum (1000m)
- Construction type: (4G4 + (2x1.0)C)C
- Insulation: Polyester
- Outer Diameter: 14.6 mm
- Copper content: 235 kg/km
- Approximate weight: 373 kg/km
(4G6 + (2x1,0)C)C
Product ref. - Country ref. 13-EBE09Z06P-A1
- Packaging: Drum (1000m)
- Construction type: (4G6 + (2x1.0)C)C
- Insulation: Polyester
- Outer Diameter: 16.8 mm
- Copper content: 349 kg/km
- Approximate weight: 477 kg/km
(4G10 + (2x1,0)C)C
Product ref. - Country ref. 13-EBE07Z06P-A1
- Packaging: Drum (1000m)
- Construction type: (4G10 + (2x1.0)C)C
- Insulation: Polyester
- Outer Diameter: 20.1 mm
- Copper content: 537 kg/km
- Approximate weight: 710 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
Design
Conductor
Bare copper
Core insulation
from 1 to 2,5 mm²:
Polyolefin
from 4 to 10 mm²:
Polyester
Core stranding
Power cores and
signal pair stranded
with fillers
Core identification
Power: Black num
+ Yellow/Green
Signal: Black + White
Shield
Total shield:
Tinned copper braid,
coverage >= 80%
Jacket
PUR
Colour:
Orange RAL 2003
Normative references
Oil resistant
IEC 50363-4-1
Flame retardant
IEC 60331-1-2; FT1; UL 1581; EN 50265-2-1
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Bare copper
Insulation colour
Power: Black num 1-3 + Green/Yellow; Signal: Black-White
Lay Up
power cores and control pairs stranded with filler
Taping
Non woven tape
Shielding
80% tinned copper braid coverage
Outer sheath
PUR
Sheath colour
Orange RAL 2003
Halogen free
Yes
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U
0.6/1 kV
Test voltage
4000 V
Mechanical characteristics
Mechanical characteristics
Bending cycles
2.5 Mio.
Speed
180 m/min
Maximum acceleration
10 m/s²
Usage characteristics
Usage characteristics
Field of application
Dynamic
Operating temperature, range
-5 ... 80 °C
Storage temperature, range
-30 ... 80 °C
Minimum dynamic operating bending radius
10 (xD)
Oil resistance
EN 50363-10-2
Flame retardant
IEC/EN 60332-1-2; FT1; UL 1581 FT1
