SERVO CABLES WITH INNER JACKET ACC. TO NEXANS MOTIONLINE® STANDARD
SERVO CABLES WITH INNER JACKET ACC. TO NEXANS MOTIONLINE® STANDARD
Servo cables for extremely dynamic applications. MOTIONLINE® PREMIUM
Read moreSERVO CABLE WITH INNER JACKET (4G1,5)C
Nexans ref.
- Packaging: Drum (1000m)
- Construction type: 4G1.5 C
- Outer Diameter: 10.4 mm
- Copper content: 86 kg/km
- Approximate weight: 160 kg/km
SERVO CABLE WITH INNER JACKET (4G2,5)C
Nexans ref.
- Packaging: Drum (1000m)
- Construction type: 4G2.5 C
- Outer Diameter: 11.9 mm
- Copper content: 129 kg/km
- Approximate weight: 219 kg/km
SERVO CABLE WITH INNER JACKET (4G4)C
Nexans ref.
- Packaging: Drum (1000m)
- Construction type: 4G4 C
- Outer Diameter: 13.6 mm
- Copper content: 206 kg/km
- Approximate weight: 314 kg/km
SERVO CABLE WITH INNER JACKET (4G6)C
Nexans ref.
- Packaging: Drum (1000m)
- Construction type: 4G6 C
- Outer Diameter: 15.7 mm
- Copper content: 269 kg/km
- Approximate weight: 414 kg/km
SERVO CABLE WITH INNER JACKET (4G10)C
Nexans ref.
- Packaging: Drum (1000m)
- Construction type: 4G10 C
- Outer Diameter: 18.6 mm
- Copper content: 450 kg/km
- Approximate weight: 633 kg/km
SERVO CABLE WITH INNER JACKET (4G16)C
Nexans ref.
- Packaging: Drum (1000m)
- Construction type: 4G16 C
- Outer Diameter: 22.6 mm
- Copper content: 731 kg/km
- Approximate weight: 978 kg/km
SERVO CABLE WITH INNER JACKET (4G25)C
Nexans ref.
- Packaging: Drum (1000m)
- Construction type: 4G25 C
- Outer Diameter: 27.3 mm
- Copper content: 1060 kg/km
- Approximate weight: 1398 kg/km
Description
Description

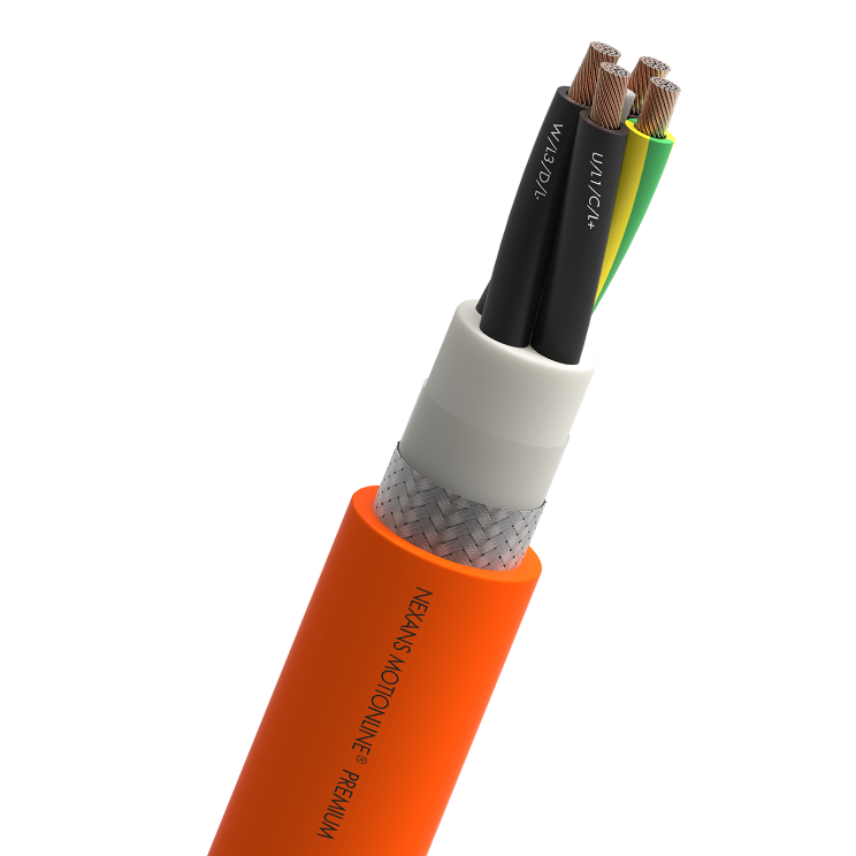

Servo cables for extremely dynamic applications; PUR jacket, TPE inner jacket, screened, resistant to oils and coolants, notch resistant, flame retardant, resistant to hydrolysis and microbes, PVC- and halogen-free.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Bending-resistant conductor with bare copper wires
Insulation
TPM with very low capacitance
Lay Up
Power cores stranded with filler
Insulation colour
Black - white marking U/L1/C/L + V/L2 W/L3/D/L - Yellow/Green
Inner sheath
TPE compound, optimized for drag chain use
Outer sheath
PUR
Sheath colour
Orange RAL 2003
Halogen free
Yes
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U
0.6/1 kV
Test voltage
4000 V
Mechanical characteristics
Mechanical characteristics
Bending cycles
10 Mio.
Speed
300 m/min
Maximum acceleration
50 m/s²
Usage characteristics
Usage characteristics
Field of application
Dynamic
Minimum dynamic operating bending radius
7.5 (xD)
Operating temperature, range
-30 ... 80 °C
Storage temperature, range
-50 ... 80 °C
Flame retardant
IEC 60332-1-2; UL 1581 FT1
Oil resistance
DIN EN 50363-10-2 & DIN EN 60811-404
