SERVO CABLES WITH INNER JACKET ACC. TO NEXANS MOTIONLINE® STANDARD WITH STAR QUAD
SERVO CABLES WITH INNER JACKET ACC. TO NEXANS MOTIONLINE® STANDARD WITH STAR QUAD

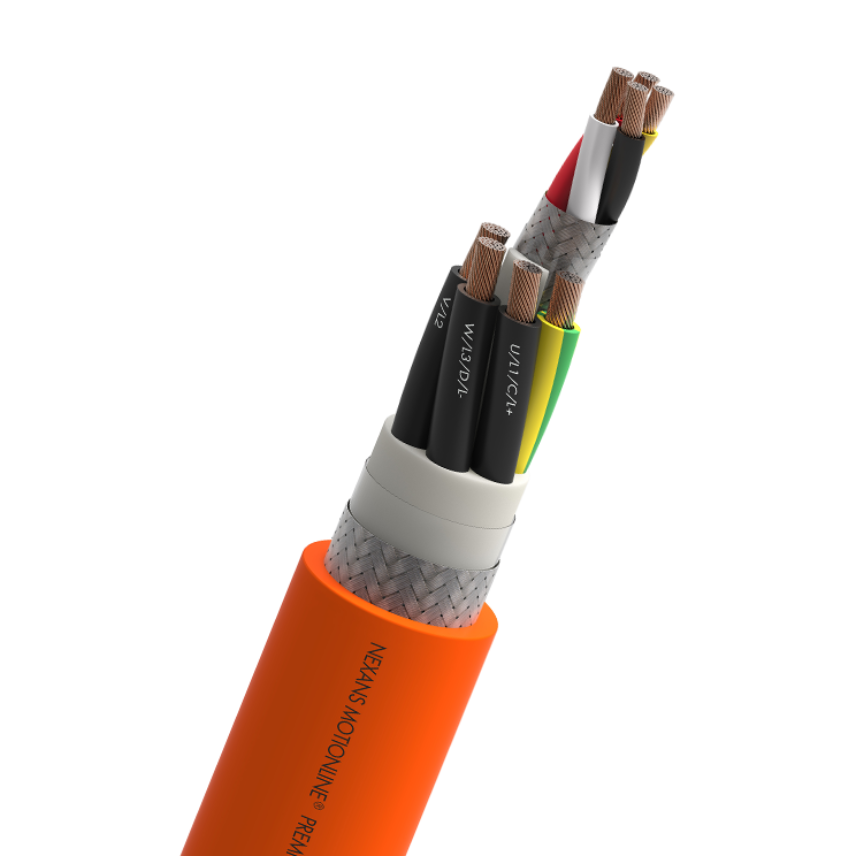

Servo cables for extremely dynamic applications with star quad MOTIONLINE® PREMIUM
Read moreSERVO CABLE WITH INNER JACKET (4G1,5+(4x0,5)C)C
Nexans ref. 49470760
- Packaging: Drum (1000m)
- Construction type: (4G1,5+(4x0,5)C)C
- Outer Diameter: 12.4 mm
- Copper content: 131 kg/km
- Approximate weight: 236 kg/km
SERVO CABLE WITH INNER JACKET (4G2,5+(4x0,5)C)C
Nexans ref. 49470860
- Packaging: Drum (1000m)
- Construction type: (4G2,5+(4x0,5)C)C
- Outer Diameter: 13.9 mm
- Copper content: 174 kg/km
- Approximate weight: 293 kg/km
SERVO CABLE WITH INNER JACKET (4G4+(4x0,5)C)C
Nexans ref. 49470960
- Packaging: Drum (1000m)
- Construction type: (4G4,0+(4x0,5)C)C
- Outer Diameter: 15.7 mm
- Copper content: 260 kg/km
- Approximate weight: 386 kg/km
SERVO CABLE WITH INNER JACKET (4G6+(4x0,5)C)C
Nexans ref. 49471060
- Packaging: Drum (1000m)
- Construction type: (4G6,0+(4x0,5)C)C
- Outer Diameter: 17.4 mm
- Copper content: 335 kg/km
- Approximate weight: 493 kg/km
SERVO CABLE WITH INNER JACKET (4G10+(4x0,5)C)C
Nexans ref. 49471160
- Packaging: Drum (1000m)
- Construction type: (4G10,0+(4x0,5)C)C
- Outer Diameter: 20.4 mm
- Copper content: 518 kg/km
- Approximate weight: 737 kg/km
SERVO CABLE WITH INNER JACKET (4G16+(4x0,5)C)C
Nexans ref. 49471260
- Packaging: Drum (1000m)
- Construction type: (4G16,0+(4x0,5)C)C
- Outer Diameter: 22.5 mm
- Copper content: 750 kg/km
- Approximate weight: 1020 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
Servo cables with star-quad for extremely dynamic applications; PUR jacket, TPE inner jacket, screened, resistant to oils and coolants, notch resistant, flame retardant, resistant to
hydrolysis and microbes, PVC- and halogen-free.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Bending-resistant conductor with bare copper wires
Insulation
TPM with very low capacitance
Lay Up
power cores and control pairs stranded with filler
Insulation colour
Power: 3 black cores with marking, 1 core green-yellow Power: U/L1/C/L+ // V/L2 // W/L3/D/L- // Ye/Gn Star-quad: black - white - red - yellow
Individual screen
Signal shield: Tinned copper braid, coverage >=80%
Screen
Tinned copper braid, coverage ≥ 80%
Inner sheath
TPE compound, optimized for drag chain use
Outer sheath
PUR
Sheath colour
Orange RAL 2003
Halogen free
Yes
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U
0.6/1 kV
Test voltage
4000 V
Mechanical characteristics
Mechanical characteristics
Bending cycles
5 Mio.
Speed
300 m/min
Maximum acceleration
50 m/s²
Usage characteristics
Usage characteristics
Field of application
Dynamic
Minimum dynamic operating bending radius
7.5 (xD)
Operating temperature, range
-30 ... 80 °C
Storage temperature, range
-50 ... 80 °C
Flame retardant
IEC 60332-1-2; UL 1581 FT1
Oil resistance
DIN EN 50363-10-2 & DIN EN 60811-404
