SERVO CABLES WITH INNER JACKET ACC. TO SEW® STANDARD WITH TRIPLE
SERVO CABLES WITH INNER JACKET ACC. TO SEW® STANDARD WITH TRIPLE
Servo cables for extremely dynamic applications with control triple MOTIONLINE® PREMIUM
Read moreSERVO CABLES WITH INNER JACKET ACC. TO SEW® STANDARD (4G1,5+(3x1,0)C)C
Nexans ref. 49308561
- Packaging: Drum (1000m)
- Construction type: (4G1.5+(3x1.0)C)C
- Outer Diameter: 12.7 mm
- Copper content: 139 kg/km
- Approximate weight: 234 kg/km
SERVO CABLES WITH INNER JACKET ACC. TO SEW® STANDARD (4G2,5+(3x1,0)C)C
Nexans ref. 49308661
- Packaging: Drum (1000m)
- Construction type: (4G2.5+(3x1.0)C)C
- Outer Diameter: 14.2 mm
- Copper content: 183 kg/km
- Approximate weight: 303 kg/km
SERVO CABLES WITH INNER JACKET ACC. TO SEW® STANDARD (4G4+(3x1,0)C)C
Nexans ref. 49308761
- Packaging: Drum (1000m)
- Construction type: (4G4+(3x1.0)C)C
- Outer Diameter: 15.8 mm
- Copper content: 262 kg/km
- Approximate weight: 403 kg/km
SERVO CABLES WITH INNER JACKET ACC. TO SEW® STANDARD (4G6+(3x1,0)C)C
Nexans ref. 49308861
- Packaging: Drum (1000m)
- Construction type: (4G6+(3x1.5)C)C
- Outer Diameter: 18 mm
- Copper content: 354 kg/km
- Approximate weight: 526 kg/km
SERVO CABLES WITH INNER JACKET ACC. TO SEW® STANDARD (4G10+(3x1,0)C)C
Nexans ref. 49308961
- Packaging: Drum (1000m)
- Construction type: (4G10+(3x1.5)C)C
- Outer Diameter: 20.5 mm
- Copper content: 522 kg/km
- Approximate weight: 722 kg/km
SERVO CABLES WITH INNER JACKET ACC. TO SEW® STANDARD (4G16+(3x1,0)C)C
Nexans ref. 49309160
- Packaging: Drum (1000m)
- Construction type: (4G16+(3x1.5)C)C
- Outer Diameter: 24.7 mm
- Copper content: 801 kg/km
- Approximate weight: 1061 kg/km
Description
Description
Standards
-
ProductUL and CSA approval

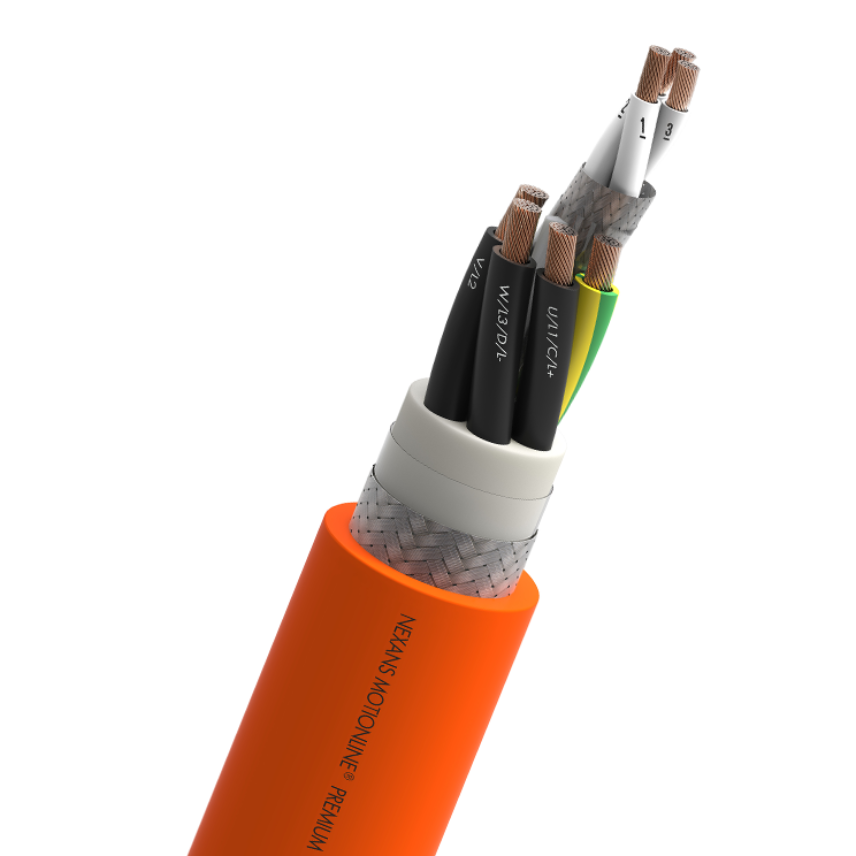

Servo cables with control triple for extremely dynamic applications; PUR jacket, TPE inner jacket, screened, resistant to oils and coolants, notch resistant, flame retardant, resistant to hydrolysis and microbes, PVC- and halogen-free.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Bending-resistant conductor with bare copper wires
Insulation
TPM with very low capacitance
Lay Up
power cores and control triple stranded with filler
Insulation colour
Power: U/L1/C/L+ // V/L2 // W/L3/D/L- // Ye/Gn Control triple: black cores, white numbered 1-2-3
Inner sheath
TPE compound, optimized for drag chain use
Individual screen
Signal screen: Tinned copper braid, coverage ≥85%
Screen
Tinned copper braid, coverage ≥ 85%
Outer sheath
PUR
Sheath colour
Orange RAL 2003
Halogen free
-
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U
0.6/1 kV
Test voltage
4000 V
Mechanical characteristics
Mechanical characteristics
Bending cycles
5 Mio.
Speed
300 m/min
Maximum acceleration
50 m/s²
Usage characteristics
Usage characteristics
Field of application
Dynamic
Minimum dynamic operating bending radius
7.5 (xD)
Operating temperature, range
-30 ... 80 °C
Storage temperature, range
-50 ... 80 °C
Flame retardant
IEC 60332-1-2; UL 1581 FT1
Oil resistance
DIN EN 50363-10-2 & DIN EN 60811-404
