SERVO MOTOR CABLES ACC. TO NEXANS MOTIONLINE® STANDARD 800ratio
SERVO MOTOR CABLES ACC. TO NEXANS MOTIONLINE® STANDARD 800ratio

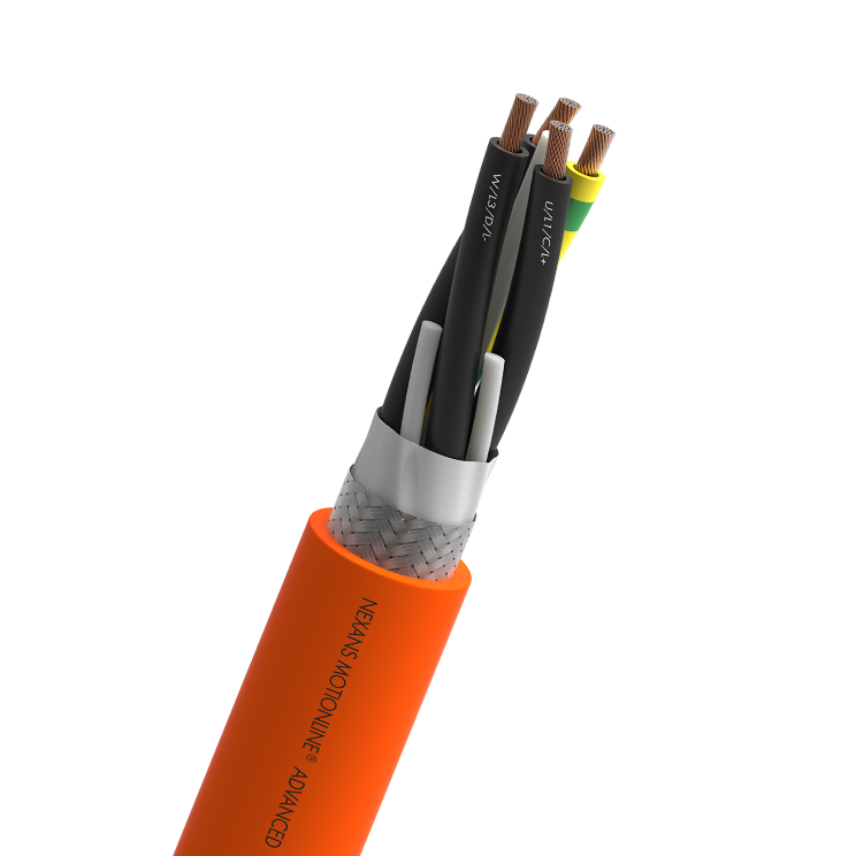

Servo cables for extremely dynamic applications. MOTIONLINE® ADVANCED
Read moreSERVO MOTOR CABLES 800ratio (4G1,5)C
Nexans ref. 49475060
- Packaging: Drum (1000m)
- Construction type: 4G1.5 C
- Outer Diameter: 8.3 mm
- Copper content: 79 kg/km
- Approximate weight: 112 kg/km
SERVO MOTOR CABLES 800ratio (4G2,5)C
Nexans ref. 49475160
- Packaging: Drum (1000m)
- Construction type: 4G2.5 C
- Outer Diameter: 9.9 mm
- Copper content: 120 kg/km
- Approximate weight: 165 kg/km
SERVO MOTOR CABLES 800ratio (4G4)C
Nexans ref. 49475260
- Packaging: Drum (1000m)
- Construction type: 4G4 C
- Outer Diameter: 11.5 mm
- Copper content: 193 kg/km
- Approximate weight: 245 kg/km
SERVO MOTOR CABLES 800ratio (4G6)C
Nexans ref. 49475360
- Packaging: Drum (1000m)
- Construction type: 4G6 C
- Outer Diameter: 13.8 mm
- Copper content: 290 kg/km
- Approximate weight: 349 kg/km
SERVO MOTOR CABLES 800ratio (4G10)C
Nexans ref. 49475460
- Packaging: Drum (1000m)
- Construction type: 4G10 C
- Outer Diameter: 17.1 mm
- Copper content: 452 kg/km
- Approximate weight: 532 kg/km
SERVO MOTOR CABLES 800ratio (4G16)C
Nexans ref. 49475560
- Packaging: Drum (1000m)
- Construction type: 4G16 C
- Outer Diameter: 20.5 mm
- Copper content: 721 kg/km
- Approximate weight: 810 kg/km
SERVO MOTOR CABLES 800ratio (4G25)C
Nexans ref. 49475660
- Packaging: Drum (1000m)
- Construction type: 4G25 C
- Outer Diameter: 25.5 mm
- Copper content: 1100 kg/km
- Approximate weight: 1293 kg/km
SERVO MOTOR CABLES 800ratio (4G35)C
Nexans ref. 49475760
- Packaging: Drum (1000m)
- Construction type: 4G35 C
- Outer Diameter: 28.5 mm
- Copper content: 1510 kg/km
- Approximate weight: 1708 kg/km
SERVO MOTOR CABLES 800ratio (4G50)C
Nexans ref. 49475860
- Packaging: Drum (1000m)
- Construction type: 4G50 C
- Outer Diameter: 34 mm
- Copper content: 2130 kg/km
- Approximate weight: 2387 kg/km
Description
Description
Standards
-
ProductUL and CSA approval
Servo cables for very dynamic applications; PUR Jacket; screened, resistant to oils and coolants, notch resistant, flame retardant, resistant to hydrolysis and microbes, PVC- and halogen-free.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Bending-resistant conductor with bare copper wires
Insulation
TPM with very low capacitance
Lay Up
Power cores stranded with filler
Insulation colour
Black - white marking U/L1/C/L + V/L2 W/L3/D/L - Yellow/Green
Screen
Tinned copper braid, coverage ≥ 85%
Outer sheath
PUR
Sheath colour
Orange RAL 2003
Halogen free
Yes
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U
0.6/1 kV
Test voltage
4000 V
Mechanical characteristics
Mechanical characteristics
Bending cycles
10 Mio.
Speed
180 m/min
Maximum acceleration
20 m/s²
Usage characteristics
Usage characteristics
Field of application
Dynamic
Minimum dynamic operating bending radius
10 (xD)
Operating temperature, range
-15 ... 80 °C
Storage temperature, range
-50 ... 80 °C
Flame retardant
IEC 60332-1-2; UL 1581 FT1
Oil resistance
DIN EN 50363-10-2 & DIN EN 60811-404
