SERVO TRAY CABLES UL LISTED UNSHIELDED
SERVO TRAY CABLES UL LISTED UNSHIELDED

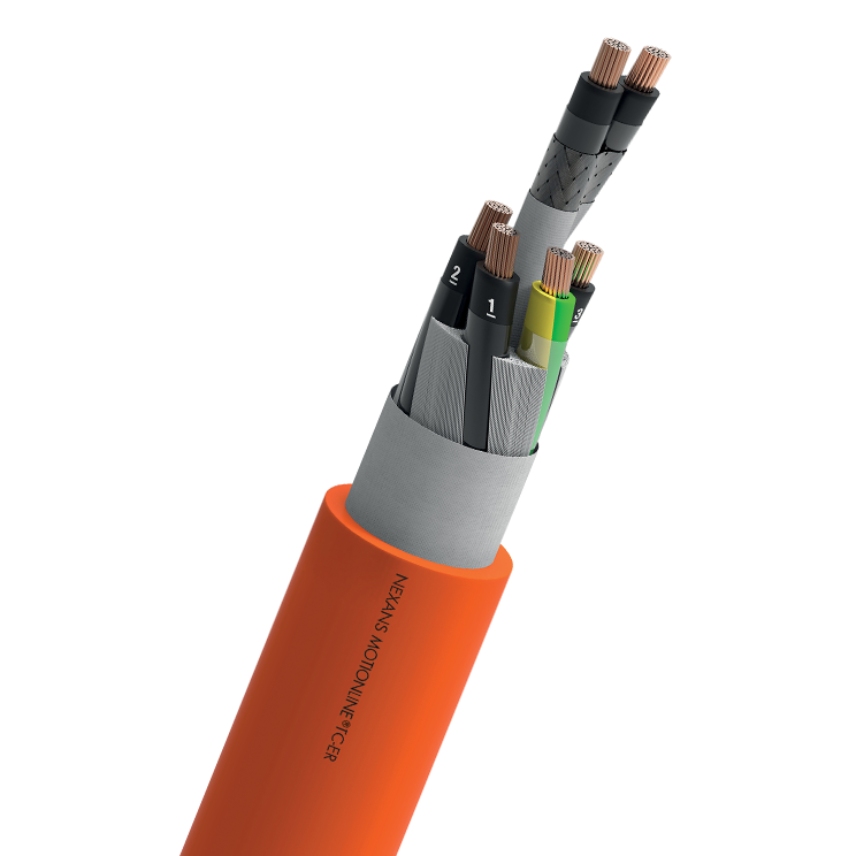

Servo Tray cables with control pair, UL Listed for dynamic application, Special PVC compound jacket, unshielded, resistant to oils, flame retardant, suitable for direct burial
Read moreSERVO TRAY CABLES 4G35+(2x1,0)C
Nexans ref. 13-ETU02Z06R-11 - Country ref. 13-ETU02Z06R-11
- Packaging: Drum (1000m)
- Construction type: 4G35 + (2x1,0)C
- Nominal outer diameter: 32.0 mm
- Copper content: 1451 kg/km
- Approximate weight: 2235 kg/km
- Maximum acceleration: 5 m/s²
- Speed: 180 m/min
- Minimum dynamic operating bending radius: 10 (xD)
SERVO TRAY CABLES 4G25+(2x1,0)C
Nexans ref. 13-ETU03Z06R-11 - Country ref. 13-ETU03Z06R-11
- Packaging: Drum (1000m)
- Construction type: 4G25 + (2x1,0)C
- Nominal outer diameter: 28.4 mm
- Copper content: 1051 kg/km
- Approximate weight: 1375 kg/km
- Maximum acceleration: 5 m/s²
- Speed: 180 m/min
- Minimum dynamic operating bending radius: 10 (xD)
SERVO TRAY CABLES 4G16+(2x1,0)C
Nexans ref. 13-ETU05Z06R-11 - Country ref. 13-ETU05Z06R-11
- Packaging: Drum (1000m)
- Construction type: 4G16 + (2x1,0)C
- Nominal outer diameter: 22.1 mm
- Copper content: 691 kg/km
- Approximate weight: 973 kg/km
- Maximum acceleration: 5 m/s²
- Speed: 180 m/min
- Minimum dynamic operating bending radius: 10 (xD)
SERVO TRAY CABLES 4G10+(2x1,0)C
Nexans ref. 13-ETU07Z06R-11 - Country ref. 13-ETU07Z06R-11
- Packaging: Drum (1000m)
- Construction type: 4G10 + (2x1,0)C
- Nominal outer diameter: 19.9 mm
- Copper content: 451 kg/km
- Approximate weight: 649 kg/km
- Maximum acceleration: 10 m/s²
- Speed: 240 m/min
- Minimum dynamic operating bending radius: 7.5 (xD)
SERVO TRAY CABLES 4G6+(2x1,0)C
Nexans ref. 13-ETU09Z06R-11 - Country ref. 13-ETU09Z06R-11
- Packaging: Drum (1000m)
- Construction type: 4G6 + (2x1,0)C
- Nominal outer diameter: 15.7 mm
- Copper content: 291 kg/km
- Approximate weight: 447 kg/km
- Maximum acceleration: 10 m/s²
- Speed: 240 m/min
- Minimum dynamic operating bending radius: 7.5 (xD)
SERVO TRAY CABLES 4G4+(2x1,0)C
Nexans ref. 13-ETU11Z06R-11 - Country ref. 13-ETU11Z06R-11
- Packaging: Drum (1000m)
- Construction type: 4G4 + (2x1,0)C
- Nominal outer diameter: 13.4 mm
- Copper content: 211 kg/km
- Approximate weight: 318 kg/km
- Maximum acceleration: 10 m/s²
- Speed: 240 m/min
- Minimum dynamic operating bending radius: 7.5 (xD)
SERVO TRAY CABLES 4G2,5+(2x0,5)C
Nexans ref. 13-ETU13Z06R-11 - Country ref. 13-ETU13Z06R-11
- Packaging: Drum (1000m)
- Construction type: 4G2,5 + (2x0,5)C
- Nominal outer diameter: 12.1 mm
- Copper content: 151 kg/km
- Approximate weight: 253 kg/km
- Maximum acceleration: 10 m/s²
- Speed: 240 m/min
- Minimum dynamic operating bending radius: 7.5 (xD)
SERVO TRAY CABLES 4G1,5+(2x1,5)C
Nexans ref. 13-ETU15Z06R-11 - Country ref. 13-ETU15Z06R-11
- Packaging: Drum (1000m)
- Construction type: 4G1,5 + (2x1,5)C
- Nominal outer diameter: 11.2 mm
- Copper content: 111 kg/km
- Approximate weight: 205 kg/km
- Maximum acceleration: 10 m/s²
- Speed: 240 m/min
- Minimum dynamic operating bending radius: 7.5 (xD)
SERVO TRAY CABLES 4G1,0+(2x1,5)C
Nexans ref. 13-ETU17Z06R-11 - Country ref. 13-ETU17Z06R-11
- Packaging: Drum (1000m)
- Construction type: 4G1 + (2x1,5)C
- Nominal outer diameter: 10.8 mm
- Copper content: 91 kg/km
- Approximate weight: 166 kg/km
- Maximum acceleration: 10 m/s²
- Speed: 240 m/min
- Minimum dynamic operating bending radius: 7.5 (xD)
Description
Description
Standards
-
ProductUL and CSA listing
Approvals
UL MTW
UL TC-ER 90°C 600V
UL WTTC 90°C 1000V
UL DP-1
UL AWM 600V
C(UL) CIC/TC (where required)
Oil resistance
Oil resistant I
Flame retardant
UL 1581 section 1160 and CSA FT4
Nominal Voltage
UL AWM 600V
UL TC-ER / MTW 600V
UL WTTC 1000V
