74C068 SH C 500V ... Cu2/5 K1 EG NA
74C068 SH C 500V ... Cu2/5 K1 EG NA
- CST 74C068
- Quality insurance according to RCC-E
- Zero halogen (SH)
- Control cables 0.3/0.5 (0.6) kV
- Cables installed inside of the containment area (K1)
- Overall Screen (EG)
- Unarmoured (NA)
74C068 SH C 500V 27x0,5 Cu5 K1 EG NA
Nexans ref. 10176402
- Packaging: Cut to length (m)
- Type of conductor: Flexible, Classe 5
- Conductor cross-section: 0.5 mm²
- Number of cores: 27
- Max. DC resistance of the conductor at 20°C: 39 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 49.700 Ohm/km
- Reactance at 50 Hz: 0.112 Ohm/km
- Short Circuit Current 0,3 s Max : 0.13 kA
- Short Circuit Current 1 s Max : 0.07 kA
- Impedance at 50 Hz : 39 Ohm
- Voltage Drop: 69.0 V/A.km
- Calorific Power: 7.2 MJ/m
- Rated Voltage Uo/U (Um): 0.3/0.5(0.6)kV
74C068 SH C 500V 2x1 Cu2 K1 EG NA
Nexans ref. 10176306
- Packaging: Cut to length (m)
- Type of conductor: Stranded, class 2
- Conductor cross-section: 1 mm²
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 32.0 V/A.km
- Calorific Power: 2.1 MJ/m
- Rated Voltage Uo/U (Um): 0.3/0.5(0.6)kV
74C068 SH C 500V 2x1 Cu5 K1 EG NA
Nexans ref. 10263790
- Packaging: Cut to length (m)
- Type of conductor: Flexible, Classe 5
- Conductor cross-section: 1 mm²
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 24.800 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 19.5 Ohm
- Voltage Drop: 34.5 V/A.km
- Calorific Power: 1.8 MJ/m
- Rated Voltage Uo/U (Um): 0.3/0.5(0.6)kV
74C068 SH C 500V 3x1 Cu2 K1 EG NA
Nexans ref. 10176308
- Packaging: Cut to length (m)
- Type of conductor: Stranded, class 2
- Conductor cross-section: 1 mm²
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 32.0 V/A.km
- Calorific Power: 2.1 MJ/m
- Rated Voltage Uo/U (Um): 0.3/0.5(0.6)kV
74C068 SH C 500V 3x1 Cu5 K1 EG NA
Nexans ref. 10243990
- Packaging: Cut to length (m)
- Type of conductor: Flexible, Classe 5
- Conductor cross-section: 1 mm²
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 19.5 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 24.800 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 19.5 Ohm
- Voltage Drop: 34.5 V/A.km
- Calorific Power: 2 MJ/m
- Rated Voltage Uo/U (Um): 0.3/0.5(0.6)kV
74C068 SH C 500V 4x1 Cu2 K1 EG NA
Nexans ref. 10176310
- Packaging: Cut to length (m)
- Type of conductor: Stranded, class 2
- Conductor cross-section: 1 mm²
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 32.0 V/A.km
- Calorific Power: 2.2 MJ/m
- Rated Voltage Uo/U (Um): 0.3/0.5(0.6)kV
74C068 SH C 500V 7x1 Cu2 K1 EG NA
Nexans ref. 10176314
- Packaging: Cut to length (m)
- Type of conductor: Stranded, class 2
- Conductor cross-section: 1 mm²
- Number of cores: 7
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 32.0 V/A.km
- Calorific Power: 3.1 MJ/m
- Rated Voltage Uo/U (Um): 0.3/0.5(0.6)kV
74C068 SH C 500V 9x1 Cu2 K1 EG NA
Nexans ref. 10176316
- Packaging: Cut to length (m)
- Type of conductor: Stranded, class 2
- Conductor cross-section: 1 mm²
- Number of cores: 9
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 32.0 V/A.km
- Calorific Power: 4.2 MJ/m
- Rated Voltage Uo/U (Um): 0.3/0.5(0.6)kV
74C068 SH C 500V 12x1 Cu2 K1 EG NA
Nexans ref. 10176318
- Packaging: Cut to length (m)
- Type of conductor: Stranded, class 2
- Conductor cross-section: 1 mm²
- Number of cores: 12
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 32.0 V/A.km
- Calorific Power: 5 MJ/m
- Rated Voltage Uo/U (Um): 0.3/0.5(0.6)kV
74C068 SH C 500V 14x1 Cu2 K1 EG NA
Nexans ref. 10176320
- Packaging: Cut to length (m)
- Type of conductor: Stranded, class 2
- Conductor cross-section: 1 mm²
- Number of cores: 14
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 32.0 V/A.km
- Calorific Power: 5.7 MJ/m
- Rated Voltage Uo/U (Um): 0.3/0.5(0.6)kV
74C068 SH C 500V 2x1,5 Cu2 K1 EG NA
Nexans ref. 10176330
- Packaging: Cut to length (m)
- Type of conductor: Stranded, class 2
- Conductor cross-section: 1.5 mm²
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 15.400 Ohm/km
- Reactance at 50 Hz: 0.096 Ohm/km
- Short Circuit Current 0,3 s Max : 0.39 kA
- Short Circuit Current 1 s Max : 0.21 kA
- Impedance at 50 Hz : 12.1 Ohm
- Voltage Drop: 21.4 V/A.km
- Calorific Power: 2.1 MJ/m
- Rated Voltage Uo/U (Um): 0.3/0.5(0.6)kV
74C068 SH C 500V 3x1,5 Cu2 K1 EG NA
Nexans ref. 10176332
- Packaging: Cut to length (m)
- Type of conductor: Stranded, class 2
- Conductor cross-section: 1.5 mm²
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 15.400 Ohm/km
- Reactance at 50 Hz: 0.096 Ohm/km
- Short Circuit Current 0,3 s Max : 0.39 kA
- Short Circuit Current 1 s Max : 0.21 kA
- Impedance at 50 Hz : 12.1 Ohm
- Voltage Drop: 21.4 V/A.km
- Calorific Power: 2.3 MJ/m
- Rated Voltage Uo/U (Um): 0.3/0.5(0.6)kV
74C068 SH C 500V 4x1.5 Cu2 K1 EG NA
Nexans ref. 10176334
- Packaging: Cut to length (m)
- Type of conductor: Stranded, class 2
- Conductor cross-section: 1.5 mm²
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: - Ohm/km
- Maximum DC resistance of the conductor at 90°C: - Ohm/km
- Reactance at 50 Hz: - Ohm/km
- Short Circuit Current 0,3 s Max : - kA
- Short Circuit Current 1 s Max : - kA
- Impedance at 50 Hz : - Ohm
- Voltage Drop: - V/A.km
- Calorific Power: - MJ/m
- Rated Voltage Uo/U (Um): 300/500 V
74C068 SH C 500V 12x1,5 Cu2 K1 EG NA
Nexans ref. 10176342
- Packaging: Cut to length (m)
- Type of conductor: Stranded, class 2
- Conductor cross-section: 1.5 mm²
- Number of cores: 12
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 15.400 Ohm/km
- Reactance at 50 Hz: 0.096 Ohm/km
- Short Circuit Current 0,3 s Max : 0.39 kA
- Short Circuit Current 1 s Max : 0.21 kA
- Impedance at 50 Hz : 12.1 Ohm
- Voltage Drop: 21.4 V/A.km
- Calorific Power: 5.8 MJ/m
- Rated Voltage Uo/U (Um): 0.3/0.5(0.6)kV
74C068 SH C 500V 19x1,5 Cu2 K1 EG NA
Nexans ref. 10176346
- Packaging: Cut to length (m)
- Type of conductor: Stranded, class 2
- Conductor cross-section: 1.5 mm²
- Number of cores: 19
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 15.400 Ohm/km
- Reactance at 50 Hz: 0.096 Ohm/km
- Short Circuit Current 0,3 s Max : 0.39 kA
- Short Circuit Current 1 s Max : 0.21 kA
- Impedance at 50 Hz : 12.1 Ohm
- Voltage Drop: 21.4 V/A.km
- Calorific Power: 8 MJ/m
- Rated Voltage Uo/U (Um): 0.3/0.5(0.6)kV
Description
Description
Standards
-
ProductIEC 60228
-
TestIEC 60332-3-23; IEC 60754-1; IEC 60754-2; IEC 61034-2; NF C32-070/C1
Applications
These control cables allow connection to a variety of industrial equipement from control room. Many of them require anti-inductive screen (EMI).

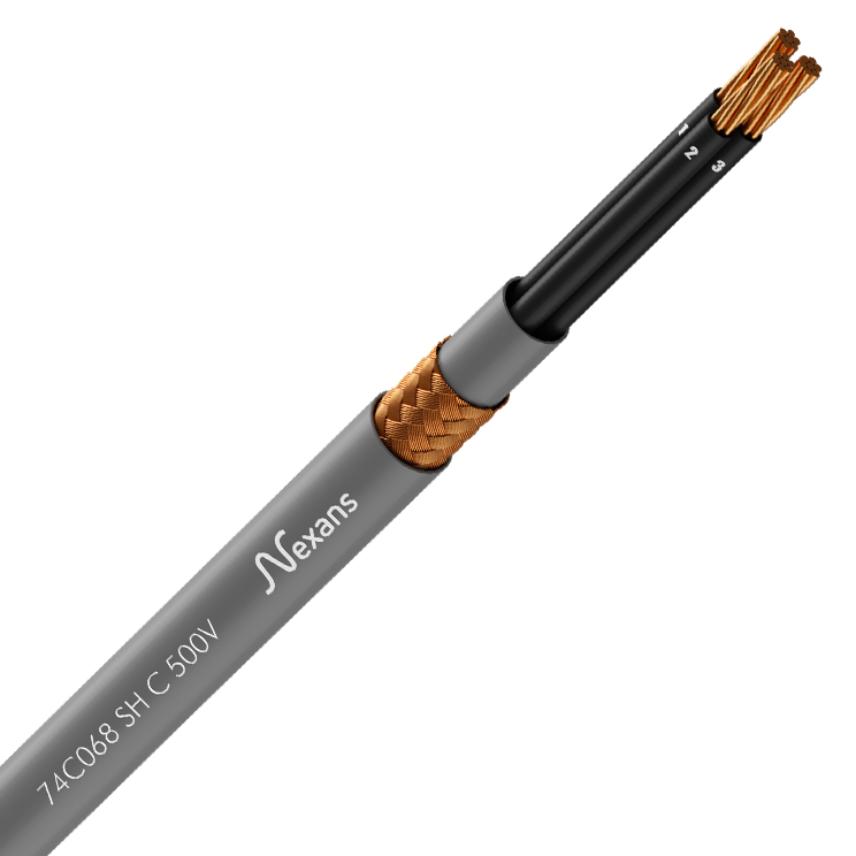

Construction
Conductor:
- Stranded (class 2) or flexible (class 5) plain copper
Insulation:
- Zero halogen (SH), cross-linked
Assembling:
- Polyester tape (optional)
Inner sheath:
- Low smoke, zero halogen (LSZH)
Overall screen:
- Copper wire braid (CWB) R ≥ 80%
Outer sheath:
- Low smoke, zero halogen (LSZH)
- Colour: Grey
Core identification
Black cores printed with white numbers
Optional: with G/Y core
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Plain copper
Insulation
Halogen-free
Inner sheath
LSZH
Screen
Copper Braid
Outer sheath
LSZH
Halogen free
IEC 60754-1; IEC 60754-2
Usage characteristics
Usage characteristics
Operating temperature, range
-20 ... 60 °C
Smoke density
-
Fire retardant
NF C 32070 C1; IEC 60332-3-24 (cat.B)
Electro magnetic interference resistance
Yes
Life cycle 60years
Yes
Radiation resistant
Yes
Loss of coolant accident resistant
Yes
U.V resistance
Yes
Max. conductor temperature in service
90 °C
Nuclear Classification
Class 1 E LOCA /K1
Resources
Resources
Documentation
Selling & delivery Information
Minimum bending radius:
10 x outer diameter
To be doubled during laying operations
Marking
NEXANS 279 Nber of cores & cross-section Cu EG CST 74 C 068 K1 SH 0.3/0.5 (0.6) kV YYYY Manufacturing number + metric marking
