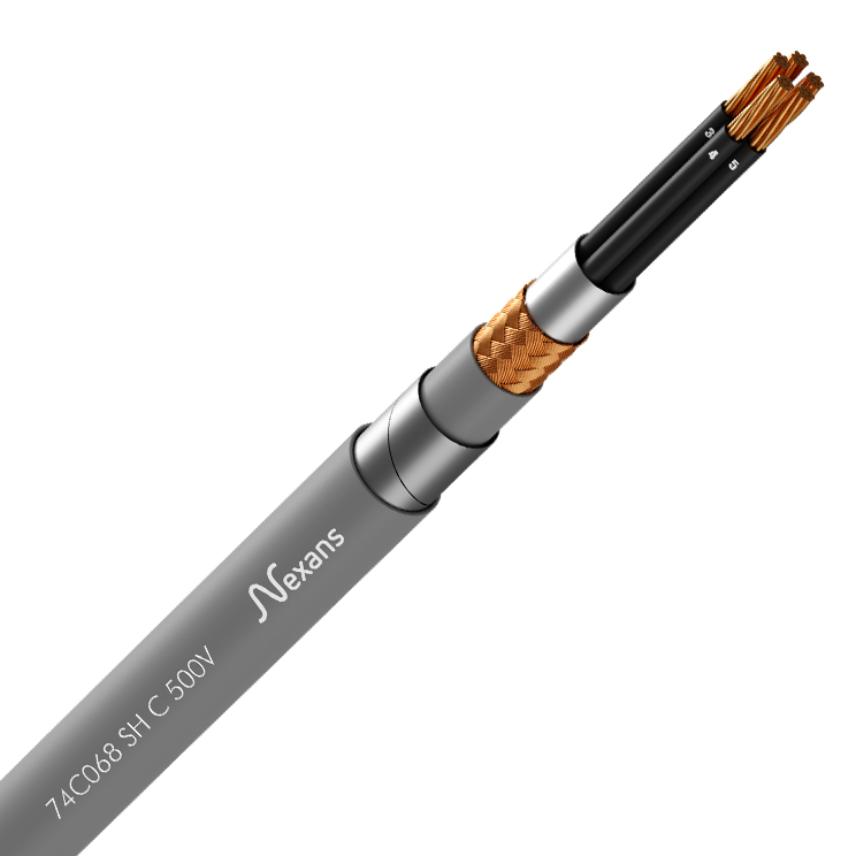

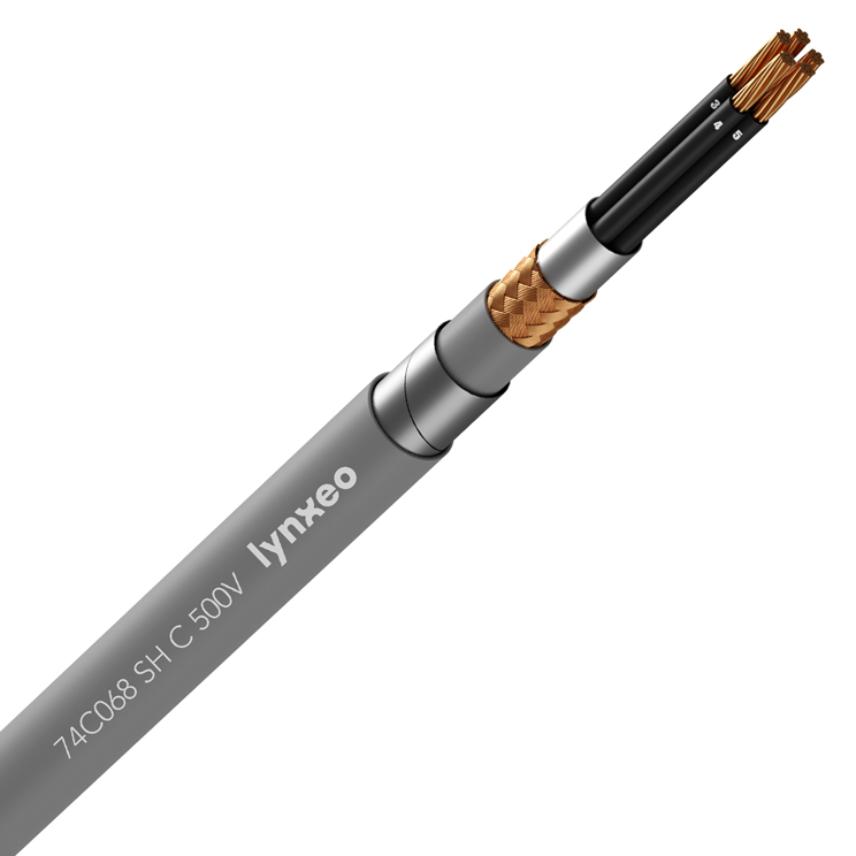

74C068 SH C 500V ... Cu2 K3 EG TZ/AR
74C068 SH C 500V ... Cu2 K3 EG TZ/AR
- CST 74C068
- Quality insurance according to RCC-E
- Zero halogen (SH)
- Control cables 0.3/0.5(0.6)kV
- Cables installed outside of the containment area (K3)
- Overall Screen (EG)
- Armoured by braid (TZ) or tapes (AR)
74C068 SH C 500V 4x0.5 Cu2 K3 EG Tz
Nexans ref. 10262014
- Packaging: Cut to length (m)
- Armour type: Galvanized Steel Braid
- With Green/Yellow core: No
- Conductor cross-section: 0.5 mm²
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 36 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 45.900 Ohm/km
- Reactance at 50 Hz: 0.112 Ohm/km
- Short Circuit Current 0,3 s Max : 0.13 kA
- Short Circuit Current 1 s Max : 0.07 kA
- Impedance at 50 Hz : 36 Ohm
- Voltage Drop: 63.7 V/A.km
- Calorific Power: 2.3 MJ/m
74C068 SH C 500V 2x0.75 Cu2 K3 EG Tz
Nexans ref. 10230519
- Packaging: Cut to length (m)
- Armour type: Galvanized Steel Braid
- With Green/Yellow core: No
- Conductor cross-section: 0.75 mm²
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 24.5 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 31.200 Ohm/km
- Reactance at 50 Hz: 0.106 Ohm/km
- Short Circuit Current 0,3 s Max : 0.2 kA
- Short Circuit Current 1 s Max : 0.11 kA
- Impedance at 50 Hz : 24.5 Ohm
- Voltage Drop: 43.3 V/A.km
- Calorific Power: 2.3 MJ/m
74C068 SH C 500V 2x1 Cu2 K3 EG Tz
Nexans ref. 10220646 - Country ref. 01270447
- Packaging: Cut to length (m)
- Armour type: Galvanized Steel Braid
- With Green/Yellow core: No
- Conductor cross-section: 1 mm²
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 32.0 V/A.km
- Calorific Power: 2.3 MJ/m
74C068 SH C 500V 3x1 Cu2 K3 EG Tz
Nexans ref. 10220647 - Country ref. 01270448
- Packaging: Cut to length (m)
- Armour type: Galvanized Steel Braid
- With Green/Yellow core: No
- Conductor cross-section: 1 mm²
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 32.0 V/A.km
- Calorific Power: 2.3 MJ/m
74C068 SH C 500V 4x1 Cu2 K3 EG Tz
Nexans ref. 10220648 - Country ref. 01270449
- Packaging: Cut to length (m)
- Armour type: Galvanized Steel Braid
- With Green/Yellow core: No
- Conductor cross-section: 1 mm²
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 32.0 V/A.km
- Calorific Power: 2.8 MJ/m
74C068 SH C 500V 7x1 Cu2 K3 EG Ar
Nexans ref. 10219597 - Country ref. 01270450
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- With Green/Yellow core: No
- Conductor cross-section: 1 mm²
- Number of cores: 7
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 36.9 V/A.km
- Calorific Power: 3.1 MJ/m
74C068 SH C 500V 9x1 Cu2 K3 EG Ar
Nexans ref. 10233671
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- With Green/Yellow core: No
- Conductor cross-section: 1 mm²
- Number of cores: 9
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 36.9 V/A.km
- Calorific Power: 3.6 MJ/m
74C068 SH C 500V 12x1 Cu2 K3 EG Ar
Nexans ref. 10219596 - Country ref. 01270451
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- With Green/Yellow core: No
- Conductor cross-section: 1 mm²
- Number of cores: 12
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 36.9 V/A.km
- Calorific Power: 4.1 MJ/m
74C068 SH C 500V 19x1 Cu2 K3 EG Ar
Nexans ref. 10220651 - Country ref. 01270452
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- With Green/Yellow core: No
- Conductor cross-section: 1 mm²
- Number of cores: 19
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 36.9 V/A.km
- Calorific Power: 5.3 MJ/m
74C068 SH C 500V 27x1 Cu2 K3 EG Ar
Nexans ref. 10220652 - Country ref. 01270453
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- With Green/Yellow core: No
- Conductor cross-section: 1 mm²
- Number of cores: 27
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 36.9 V/A.km
- Calorific Power: 6.6 MJ/m
74C068 SH C 500V 37x1 Cu2 K3 EG Ar
Nexans ref. 10220653 - Country ref. 01270454
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- With Green/Yellow core: No
- Conductor cross-section: 1 mm²
- Number of cores: 37
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 36.9 V/A.km
- Calorific Power: 6.9 MJ/m
74C068 SH C 500V 2x1.5 Cu2 K3 EG Tz
Nexans ref. 10220684 - Country ref. 01270455
- Packaging: Cut to length (m)
- Armour type: Galvanized Steel Braid
- With Green/Yellow core: No
- Conductor cross-section: 1.5 mm²
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 15.400 Ohm/km
- Reactance at 50 Hz: 0.096 Ohm/km
- Short Circuit Current 0,3 s Max : 0.39 kA
- Short Circuit Current 1 s Max : 0.21 kA
- Impedance at 50 Hz : 12.1 Ohm
- Voltage Drop: 21.4 V/A.km
- Calorific Power: 2.4 MJ/m
74C068 SH C 500V 3x1.5 Cu2 K3 EG Tz
Nexans ref. 10220685 - Country ref. 01270456
- Packaging: Cut to length (m)
- Armour type: Galvanized Steel Braid
- With Green/Yellow core: No
- Conductor cross-section: 1.5 mm²
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 15.400 Ohm/km
- Reactance at 50 Hz: 0.096 Ohm/km
- Short Circuit Current 0,3 s Max : 0.39 kA
- Short Circuit Current 1 s Max : 0.21 kA
- Impedance at 50 Hz : 12.1 Ohm
- Voltage Drop: 21.4 V/A.km
- Calorific Power: 2.8 MJ/m
74C068 SH C 500V 4x1.5 Cu2 K3 EG Tz
Nexans ref. 10220686 - Country ref. 01270457
- Packaging: Cut to length (m)
- Armour type: Galvanized Steel Braid
- With Green/Yellow core: No
- Conductor cross-section: 1.5 mm²
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 15.400 Ohm/km
- Reactance at 50 Hz: 0.096 Ohm/km
- Short Circuit Current 0,3 s Max : 0.39 kA
- Short Circuit Current 1 s Max : 0.21 kA
- Impedance at 50 Hz : 12.1 Ohm
- Voltage Drop: 21.4 V/A.km
- Calorific Power: 3 MJ/m
74C068 SH C 500V 7x1.5 Cu2 K3 EG Ar
Nexans ref. 10220687 - Country ref. 01270458
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- With Green/Yellow core: No
- Conductor cross-section: 1.5 mm²
- Number of cores: 7
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 15.400 Ohm/km
- Reactance at 50 Hz: 0.096 Ohm/km
- Short Circuit Current 0,3 s Max : 0.39 kA
- Short Circuit Current 1 s Max : 0.21 kA
- Impedance at 50 Hz : 12.1 Ohm
- Voltage Drop: 24.8 V/A.km
- Calorific Power: 3.2 MJ/m
74C068 SH C 500V 8x1.5 Cu2 K3 EG Ar
Nexans ref. 10260238
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- With Green/Yellow core: No
- Conductor cross-section: 1.5 mm²
- Number of cores: 8
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 15.400 Ohm/km
- Reactance at 50 Hz: 0.096 Ohm/km
- Short Circuit Current 0,3 s Max : 0.39 kA
- Short Circuit Current 1 s Max : 0.21 kA
- Impedance at 50 Hz : 12.1 Ohm
- Voltage Drop: 24.8 V/A.km
- Calorific Power: 3.6 MJ/m
74C068 SH C 500V 12x1.5 Cu2 K3 EG Ar
Nexans ref. 10220688 - Country ref. 01270459
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- With Green/Yellow core: No
- Conductor cross-section: 1.5 mm²
- Number of cores: 12
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 15.400 Ohm/km
- Reactance at 50 Hz: 0.096 Ohm/km
- Short Circuit Current 0,3 s Max : 0.39 kA
- Short Circuit Current 1 s Max : 0.21 kA
- Impedance at 50 Hz : 12.1 Ohm
- Voltage Drop: 24.8 V/A.km
- Calorific Power: 4.4 MJ/m
74C068 SH C 500V 19x1.5 Cu2 K3 EG Ar
Nexans ref. 10220689 - Country ref. 01270460
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- With Green/Yellow core: No
- Conductor cross-section: 1.5 mm²
- Number of cores: 19
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 15.400 Ohm/km
- Reactance at 50 Hz: 0.096 Ohm/km
- Short Circuit Current 0,3 s Max : 0.39 kA
- Short Circuit Current 1 s Max : 0.21 kA
- Impedance at 50 Hz : 12.1 Ohm
- Voltage Drop: 24.8 V/A.km
- Calorific Power: 5.3 MJ/m
74C068 SH C 500V 27x1.5 Cu2 K3 EG Ar
Nexans ref. 10220690 - Country ref. 01270461
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- With Green/Yellow core: No
- Conductor cross-section: 1.5 mm²
- Number of cores: 27
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 15.400 Ohm/km
- Reactance at 50 Hz: 0.096 Ohm/km
- Short Circuit Current 0,3 s Max : 0.39 kA
- Short Circuit Current 1 s Max : 0.21 kA
- Impedance at 50 Hz : 12.1 Ohm
- Voltage Drop: 24.8 V/A.km
- Calorific Power: 7.2 MJ/m
74C068 SH C 500V 37x1.5 Cu2 K3 EG Ar
Nexans ref. 10220691 - Country ref. 01270462
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- With Green/Yellow core: No
- Conductor cross-section: 1.5 mm²
- Number of cores: 37
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 15.400 Ohm/km
- Reactance at 50 Hz: 0.096 Ohm/km
- Short Circuit Current 0,3 s Max : 0.39 kA
- Short Circuit Current 1 s Max : 0.21 kA
- Impedance at 50 Hz : 12.1 Ohm
- Voltage Drop: 24.8 V/A.km
- Calorific Power: 7.8 MJ/m
74C068 SH C 500V 48x1.5 Cu2 K3 EG Ar
Nexans ref. 10267220
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- With Green/Yellow core: No
- Conductor cross-section: 1.5 mm²
- Number of cores: 48
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 15.400 Ohm/km
- Reactance at 50 Hz: 0.096 Ohm/km
- Short Circuit Current 0,3 s Max : 0.39 kA
- Short Circuit Current 1 s Max : 0.21 kA
- Impedance at 50 Hz : 12.1 Ohm
- Voltage Drop: 24.8 V/A.km
- Calorific Power: 8.3 MJ/m
74C068 SH C 500V 3x2.5 Cu2 K3 EG Tz
Nexans ref. 10230168
- Packaging: Cut to length (m)
- Armour type: Galvanized Steel Braid
- With Green/Yellow core: No
- Conductor cross-section: 2.5 mm²
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 9.440 Ohm/km
- Reactance at 50 Hz: 0.09 Ohm/km
- Short Circuit Current 0,3 s Max : 0.65 kA
- Short Circuit Current 1 s Max : 0.36 kA
- Impedance at 50 Hz : 7.41 Ohm
- Voltage Drop: 13.2 V/A.km
- Calorific Power: 3.2 MJ/m
74C068 SH C 500V 4G2.5 Cu2 K3 EG Ar
Nexans ref. 10236497
- Packaging: Cut to length (m)
- Armour type: Steel tapes
- With Green/Yellow core: Yes
- Conductor cross-section: 2.5 mm²
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 7.41 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 9.440 Ohm/km
- Reactance at 50 Hz: 0.09 Ohm/km
- Short Circuit Current 0,3 s Max : 0.65 kA
- Short Circuit Current 1 s Max : 0.36 kA
- Impedance at 50 Hz : 7.41 Ohm
- Voltage Drop: 15.2 V/A.km
- Calorific Power: 3.2 MJ/m
Description
Description
Standards
-
ProductIEC 60228
-
TestIEC 60332-3-23; IEC 60754-1; IEC 60754-2; IEC 61034-2; NF C32-070/C1
Applications
These control cables alllow connection to a variety of industrial equipement from control room. Many of them require anti-inductive screen (EMI). They are well adapted to underground use.
Construction
Conductor:
- Stranded plain copper (class 2)
Insulation:
- Zero halogen (SH), cross-linked
Assembling:
- Polyester tape (optional)
Overall screen:
- Copper wire braid (CWB) R ≥ 80%
Inner sheath:
- Low smoke, zero halogen (LSZH)
Armour:
- Galvanized steel braid (Tz) ≤ 4 conductors
- Steel tapes (Ar) > 4 conductors
Outer sheath:
- Low smoke, zero halogen (LSZH)
- Colour: grey
Core identification
Black cores printed with white numbers
Optional: with Y/G core
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Plain copper
Type of conductor
Stranded, class 2
Insulation
Halogen-free
Screen
Bare copper braid
Inner sheath
LSZH
Outer sheath
LSZH
Halogen free
IEC 60754-1; IEC 60754-2
Mechanical characteristics
Mechanical characteristics
Mechanical resistance to impacts
Good
Usage characteristics
Usage characteristics
Operating temperature, range
-20 ... 60 °C
Smoke density
-
Fire retardant
NF C 32070 C1; IEC 60332-3-24 (cat.B)
Electro magnetic interference resistance
Yes
U.V resistance
Yes
Life cycle 60years
Yes
Max. conductor temperature in service
90 °C
Nuclear Classification
Class 1 E Non LOCA/K3
Resources
Resources
Documentation
Selling & delivery Information
Minimum bending radius:
10 x outer diameter
To be doubled during laying operations
Marking
NEXANS 279 Nber of cores & cross-section Cu EG ARME CST 74 C 068 K3 SH 0.3/0.5 (0.6) kV YYYY Manufacturing number + metric marking
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
