74C068 SH C 500V ... Cu2/5 K2 EG NA
74C068 SH C 500V ... Cu2/5 K2 EG NA
- CST 74C068
- Quality insurance according to RCC-E
- Zero halogen (SH)
- Control cables 0.3/0.5 (0.6) kV
- Cables installed inside of the containment area (K2)
- Overall screened (EG)
- Unarmoured (NA)
74C068 SH C 500V 2x0.5 Cu2 K2 EG NA
Nexans ref. 10213050
- Packaging: Cut to length (m)
- Conductor cross-section: 0.5 mm²
- Number of cores: 2
- Max. DC resistance of the conductor at 20°C: 36 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 45.900 Ohm/km
- Reactance at 50 Hz: 0.112 Ohm/km
- Short Circuit Current 0,3 s Max : 0.13 kA
- Short Circuit Current 1 s Max : 0.07 kA
- Impedance at 50 Hz : 36 Ohm
- Voltage Drop: 73.6 V/A.km
- Calorific Power: 1.7 MJ/m
74C068 SH C 500V 27x0,5 Cu2 K2 EG NA
Nexans ref. 10219518
- Packaging: Cut to length (m)
- Conductor cross-section: 0.5 mm²
- Number of cores: 27
- Max. DC resistance of the conductor at 20°C: 36 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 45.900 Ohm/km
- Reactance at 50 Hz: 0.112 Ohm/km
- Short Circuit Current 0,3 s Max : 0.13 kA
- Short Circuit Current 1 s Max : 0.07 kA
- Impedance at 50 Hz : 36 Ohm
- Voltage Drop: 73.6 V/A.km
- Calorific Power: 4.7 MJ/m
74C068 SH C 500V 37x0,5 Cu2 K2 EG NA
Nexans ref. 10213052
- Packaging: Cut to length (m)
- Conductor cross-section: 0.5 mm²
- Number of cores: 37
- Max. DC resistance of the conductor at 20°C: 36 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 45.900 Ohm/km
- Reactance at 50 Hz: 0.112 Ohm/km
- Short Circuit Current 0,3 s Max : 0.13 kA
- Short Circuit Current 1 s Max : 0.07 kA
- Impedance at 50 Hz : 36 Ohm
- Voltage Drop: 73.6 V/A.km
- Calorific Power: 5.8 MJ/m
74C068 SH C 500V 48x0,5 Cu2 K2 EG NA
Nexans ref. 10213053
- Packaging: Cut to length (m)
- Conductor cross-section: 0.5 mm²
- Number of cores: 48
- Max. DC resistance of the conductor at 20°C: 36 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 45.900 Ohm/km
- Reactance at 50 Hz: 0.112 Ohm/km
- Short Circuit Current 0,3 s Max : 0.13 kA
- Short Circuit Current 1 s Max : 0.07 kA
- Impedance at 50 Hz : 36 Ohm
- Voltage Drop: 73.6 V/A.km
- Calorific Power: 6.9 MJ/m
74C068 SH C 500V 3x1 Cu2 K2 EG NA
Nexans ref. 10254509
- Packaging: Cut to length (m)
- Conductor cross-section: 1 mm²
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 36.9 V/A.km
- Calorific Power: 1.8 MJ/m
74C068 SH C 500V 7x1 Cu2 K2 EG NA
Nexans ref. 10266098
- Packaging: Cut to length (m)
- Conductor cross-section: 1 mm²
- Number of cores: 7
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 36.9 V/A.km
- Calorific Power: 2.2 MJ/m
74C068 SH C 500V 9x1 Cu2 K2 EG NA
Nexans ref. 10260490
- Packaging: Cut to length (m)
- Conductor cross-section: 1 mm²
- Number of cores: 9
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 36.9 V/A.km
- Calorific Power: 3.2 MJ/m
74C068 SH C 500V 12x1 Cu2 K2 EG NA
Nexans ref. 10260491
- Packaging: Cut to length (m)
- Conductor cross-section: 1 mm²
- Number of cores: 12
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 36.9 V/A.km
- Calorific Power: 3.4 MJ/m
74C068 SH C 500V 14x1 Cu2 K2 EG NA
Nexans ref. 10254510
- Packaging: Cut to length (m)
- Conductor cross-section: 1 mm²
- Number of cores: 14
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 36.9 V/A.km
- Calorific Power: 3.7 MJ/m
74C068 SH C 500V 27x1 Cu2 K2 EG NA
Nexans ref. 10260492
- Packaging: Cut to length (m)
- Conductor cross-section: 1 mm²
- Number of cores: 27
- Max. DC resistance of the conductor at 20°C: 18.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 23.000 Ohm/km
- Reactance at 50 Hz: 0.1 Ohm/km
- Short Circuit Current 0,3 s Max : 0.26 kA
- Short Circuit Current 1 s Max : 0.14 kA
- Impedance at 50 Hz : 18.1 Ohm
- Voltage Drop: 36.9 V/A.km
- Calorific Power: 5.7 MJ/m
74C068 SH C 500V 3x1,5 Cu2 K2 EG NA
Nexans ref. 10213106
- Packaging: Cut to length (m)
- Conductor cross-section: 1.5 mm²
- Number of cores: 3
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 15.400 Ohm/km
- Reactance at 50 Hz: 0.094 Ohm/km
- Short Circuit Current 0,3 s Max : 0.39 kA
- Short Circuit Current 1 s Max : 0.21 kA
- Impedance at 50 Hz : 12.1 Ohm
- Voltage Drop: 24.8 V/A.km
- Calorific Power: 2 MJ/m
74C068 SH C 500V 4x1,5 Cu2 K2 EG NA
Nexans ref. 10213104
- Packaging: Cut to length (m)
- Conductor cross-section: 1.5 mm²
- Number of cores: 4
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 15.400 Ohm/km
- Reactance at 50 Hz: 0.094 Ohm/km
- Short Circuit Current 0,3 s Max : 0.39 kA
- Short Circuit Current 1 s Max : 0.21 kA
- Impedance at 50 Hz : 12.1 Ohm
- Voltage Drop: 24.8 V/A.km
- Calorific Power: 2.1 MJ/m
74C068 SH C 500V 20x1,5 Cu2 K2 EG NA
Nexans ref. 10213107
- Packaging: Cut to length (m)
- Conductor cross-section: 1.5 mm²
- Number of cores: 20
- Max. DC resistance of the conductor at 20°C: 12.1 Ohm/km
- Maximum DC resistance of the conductor at 90°C: 15.400 Ohm/km
- Reactance at 50 Hz: 0.094 Ohm/km
- Short Circuit Current 0,3 s Max : 0.39 kA
- Short Circuit Current 1 s Max : 0.21 kA
- Impedance at 50 Hz : 12.1 Ohm
- Voltage Drop: 24.8 V/A.km
- Calorific Power: 5.5 MJ/m
Description
Description
Standards
-
ProductIEC 60228
-
TestIEC 60332-3-23; IEC 60754-1; IEC 61034-2; NF C32-070/C1
Applications
These control cables allow connection to a variety of industrial equipement from control room. Many of them require anti-inductive screen (EMI).

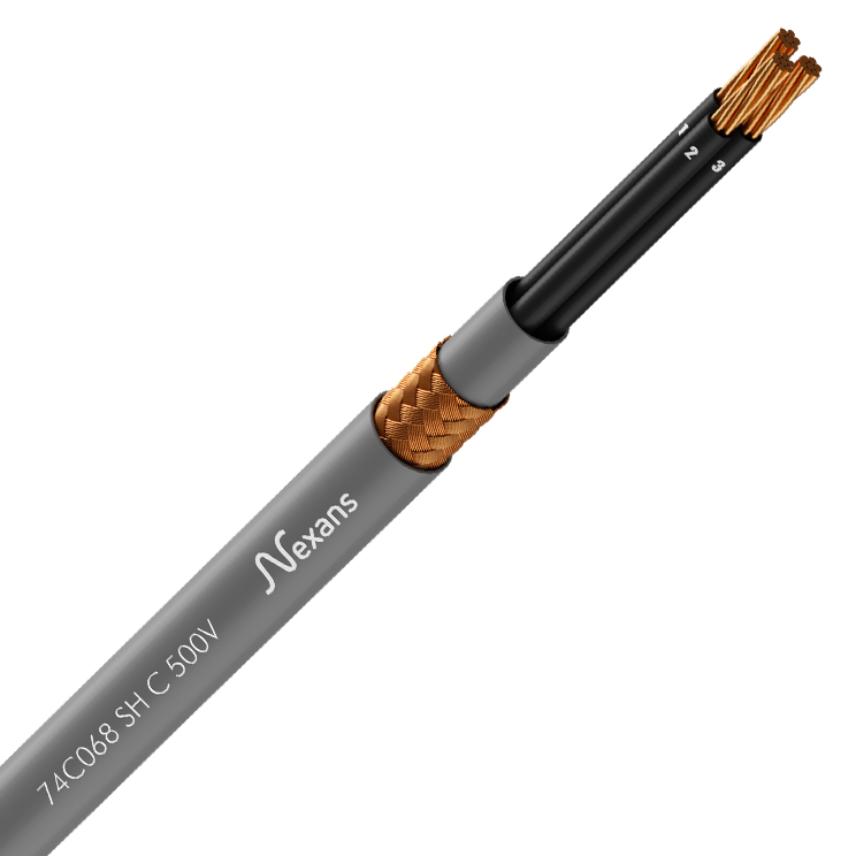

Construction
Conductor:
- Stranded (class 2) or flexible (class 5) plain copper
Insulation:
- Zero halogen (SH), cross-linked
Assembling:
- Polyester tape (optional)
Inner sheath:
- Low smoke, zero halogen (LSZH)
- Colour: grey
Screen:
- Copper wire braid (CWB) R ≥ 80 %
Outer sheath:
- Low smoke, zero halogen (LSZH)
- Colour: grey
Core identification
Black cores printed with white numbers
Optional: with G/Y core.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Plain copper
Type of conductor
Stranded, class 2
Insulation
Halogen-free
Inner sheath
-
Screen
Bare copper braid
Outer sheath
LSZH
Halogen free
IEC 60754-1; IEC 60754-2
Usage characteristics
Usage characteristics
Operating temperature, range
-20 ... 60 °C
Smoke density
IEC 61034-2
Fire retardant
NF C 32070 C1; IEC 60332-3-24 (cat.B)
Electro magnetic interference resistance
Yes
U.V resistance
Yes
Life cycle 60years
Yes
Radiation resistant
Yes
Max. conductor temperature in service
90 °C
Nuclear Classification
K2
Resources
Resources
Documentation
Selling & delivery Information
Minimum bending radius:
10 x outer diameter
To be doubled during laying operations
Marking
NEXANS 279 Nber of cores & cross-section Cu EG CST 74 C 068 K2 SH 0.3/0.5 (0.6) kV YYYY Manufacturing number + metric marking
