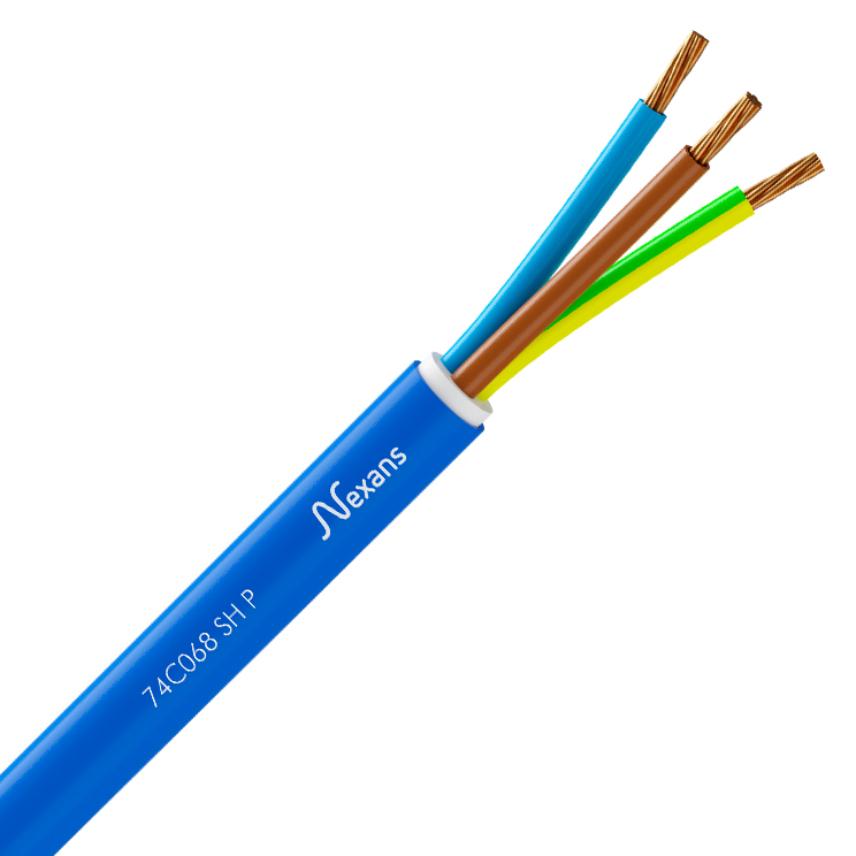

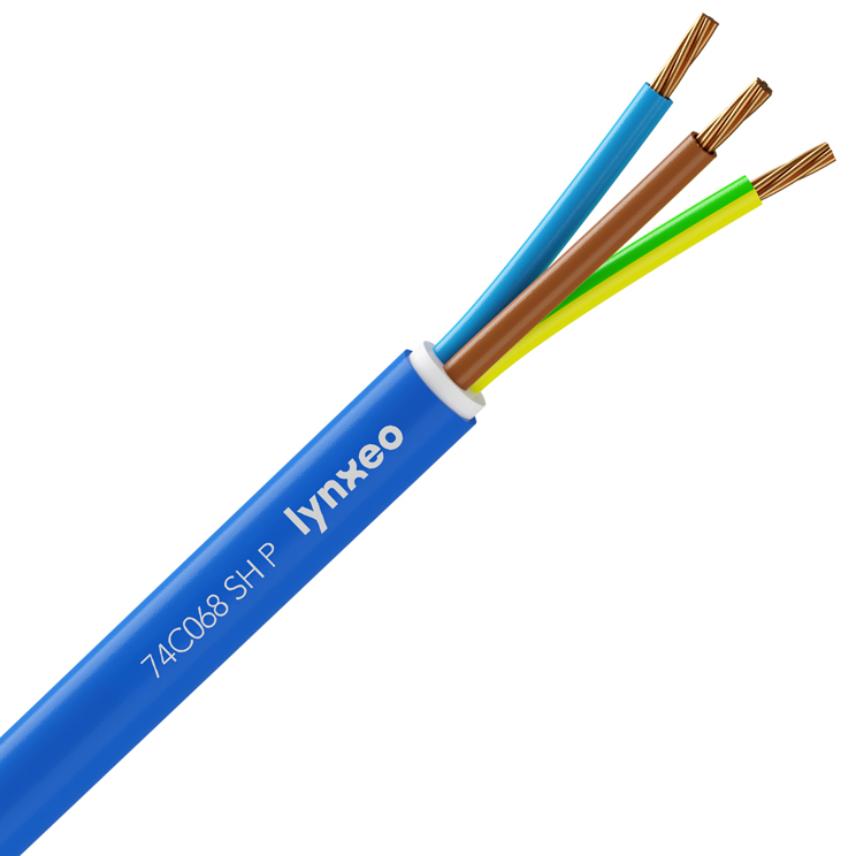

74C068 SH P ... K3 NA
74C068 SH P ... K3 NA
- Low voltage cables 0.6/1 (1.2) V
- CST 74C068
- Zero halogen (SH)
- Cables installed outside of the containment area (K3)
- Unarmoured (NA)
74C068 SH P 2x1.5 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 1.5 mm²
- Number of cores: 2
74C068 SH P 3X1.5 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 1.5 mm²
- Number of cores: 3
74C068 SH P 3G1.5 Cu2 K3 NA
Nexans ref. 10189886 - Country ref. 01272413
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: Yes
- Conductor cross-section: 1.5 mm²
- Number of cores: 3
74C068 SH P 4X1.5 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 1.5 mm²
- Number of cores: 4
74C068 SH P 2X2.5 Cu2 K3 NA
Nexans ref. 10176102 - Country ref. 01272401
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 2.5 mm²
- Number of cores: 2
74C068 SH P 3X2.5 Cu2 K3 NA
Nexans ref. 10176101 - Country ref. 01272402
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 2.5 mm²
- Number of cores: 3
74C068 SH P 3G2.5 Cu2 K3 NA
Nexans ref. 10204303 - Country ref. 01272414
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: Yes
- Conductor cross-section: 2.5 mm²
- Number of cores: 3
74C068 SH P 4X2.5 Cu2 K3 NA
Nexans ref. 10176100 - Country ref. 01272403
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 2.5 mm²
- Number of cores: 4
74C068 SH P 2X4 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 4 mm²
- Number of cores: 2
74C068 SH P 3X4 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 4 mm²
- Number of cores: 3
74C068 SH P 4X4 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 4 mm²
- Number of cores: 4
74C068 SH P 2X6 Cu2 K3 NA
Nexans ref. 10176096 - Country ref. 01272404
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 6 mm²
- Number of cores: 2
74C068 SH P 3X6 Cu2 K3 NA
Nexans ref. 10176095 - Country ref. 01272405
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 6 mm²
- Number of cores: 3
74C068 SH P 4X6 Cu2 K3 NA
Nexans ref. 10176094 - Country ref. 01272406
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 6 mm²
- Number of cores: 4
74C068 SH P 2X10 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 10 mm²
- Number of cores: 2
74C068 SH P 3X10 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 10 mm²
- Number of cores: 3
74C068 SH P 4X10 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 10 mm²
- Number of cores: 4
74C068 SH P 2X16 Cu2 K3 NA
Nexans ref. 10176106 - Country ref. 01272407
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 16 mm²
- Number of cores: 2
74C068 SH P 3X16 Cu2 K3 NA
Nexans ref. 10176107 - Country ref. 01272408
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 16 mm²
- Number of cores: 3
74C068 SH P 4X16 Cu2 K3 NA
Nexans ref. 10176108 - Country ref. 01272409
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 16 mm²
- Number of cores: 4
74C068 SH P 2X25 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 25 mm²
- Number of cores: 2
74C068 SH P 3X25 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 25 mm²
- Number of cores: 3
74C068 SH P 4X25 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 25 mm²
- Number of cores: 4
74C068 SH P 2X35 Cu2 K3 NA
Nexans ref. 10176112 - Country ref. 01272410
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 35 mm²
- Number of cores: 2
74C068 SH P 3X35 Cu2 K3 NA
Nexans ref. 10176113 - Country ref. 01272411
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 35 mm²
- Number of cores: 3
74C068 SH P 4X35 Cu2 K3 NA
Nexans ref. 10176114 - Country ref. 01272412
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 35 mm²
- Number of cores: 4
74C068 SH P 1X50 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 50 mm²
- Number of cores: 1
74C068 SH P 2X50 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 50 mm²
- Number of cores: 2
74C068 SH P 3X50 Alu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 50 mm²
- Number of cores: 3
74C068 SH P 3X50 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 50 mm²
- Number of cores: 3
74C068 SH P 4X50 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 50 mm²
- Number of cores: 4
74C068 SH P 1X70 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 70 mm²
- Number of cores: 1
74C068 SH P 2X70 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 70 mm²
- Number of cores: 2
74C068 SH P 3X70 Alu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 70 mm²
- Number of cores: 3
74C068 SH P 3X70 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 70 mm²
- Number of cores: 3
74C068 SH P 4X70 Alu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 70 mm²
- Number of cores: 4
74C068 SH P 4X70 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 70 mm²
- Number of cores: 4
74C068 SH P 1X95 Cu2 K3 NA
Nexans ref. 10176123
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 95 mm²
- Number of cores: 1
74C068 SH P 2X95 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 95 mm²
- Number of cores: 2
74C068 SH P 3X95 Alu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 95 mm²
- Number of cores: 3
74C068 SH P 3X95 Cu2 K3 NA
Nexans ref. 10176125
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 95 mm²
- Number of cores: 3
74C068 SH P 4X95 Alu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 95 mm²
- Number of cores: 4
74C068 SH P 4X95 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 95 mm²
- Number of cores: 4
74C068 SH P 4X95 SC Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Sector-shaped, stranded
- With Green/Yellow core: No
- Conductor cross-section: 95 mm²
- Number of cores: 4
74C068 SH P 3X120 Alu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 120 mm²
- Number of cores: 3
74C068 SH P 3X120 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 120 mm²
- Number of cores: 3
74C068 SH P 3X120 SC Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Sector-shaped, stranded
- With Green/Yellow core: No
- Conductor cross-section: 120 mm²
- Number of cores: 3
74C068 SH P 4X120 Alu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 120 mm²
- Number of cores: 4
74C068 SH P 4X120 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 120 mm²
- Number of cores: 4
74C068 SH P 4X120 SC Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Sector-shaped, stranded
- With Green/Yellow core: No
- Conductor cross-section: 120 mm²
- Number of cores: 4
74C068 SH P 1x150Cu2 K3 NA
Nexans ref.
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 150 mm²
- Number of cores: 1
74C068 SH P 2X150 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 150 mm²
- Number of cores: 2
74C068 SH P 3X150 Alu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 150 mm²
- Number of cores: 3
74C068 SH P 3X150 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 150 mm²
- Number of cores: 3
74C068 SH P 4X150 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 150 mm²
- Number of cores: 4
74C068 SH P 1X185 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 185 mm²
- Number of cores: 1
74C068 SH P 1X240 Alu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 240 mm²
- Number of cores: 1
74C068 SH P 1X240 Cu2 K3 NA
Nexans ref. 10176138
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 240 mm²
- Number of cores: 1
74C068 SH P 2X240 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 240 mm²
- Number of cores: 2
74C068 SH P 3X240 Alu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 240 mm²
- Number of cores: 3
74C068 SH P 3X240 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 240 mm²
- Number of cores: 3
74C068 SH P 4X240 Alu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 240 mm²
- Number of cores: 4
74C068 SH P 1X300 Alu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 300 mm²
- Number of cores: 1
74C068 SH P 1X300 Cu2 K3 NA
Nexans ref. 10176141
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 300 mm²
- Number of cores: 1
74C068 SH P 3X300 Alu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 300 mm²
- Number of cores: 3
74C068 SH P 4X300 Alu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 300 mm²
- Number of cores: 4
74C068 SH P 1X400 Alu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 400 mm²
- Number of cores: 1
74C068 SH P 1X500 Alu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 400 mm²
- Number of cores: 1
74C068 SH P 1X400 Cu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 400 mm²
- Number of cores: 1
74C068 SH P 3X400 Alu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 400 mm²
- Number of cores: 3
74C068 SH P 1X630 Alu2 K3 NA
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- Type of conductor: Stranded, class 2
- With Green/Yellow core: No
- Conductor cross-section: 630 mm²
- Number of cores: 1
Description
Description
Standards
-
ProductIEC 60228
-
TestIEC 60332-3-23; IEC 60754-1; IEC 61034-2; NF C32-070/C1
Applications
These low voltage cables are used for lighting system power supply, engine power supply and solenoid valve power supply.
Design
Conductor: Stranded bare copper or aluminium (class 2)
Insulation: Cross-linked halogen free (SH)
Covering (optional): Halogen free
Outer sheath: Low smoke, zero halogen (LSZH)
Colour: Blue
Core identification
According to HD308 S2
Standard
IEC 60332-3-23(B)
Quality insurance according to RCC-E
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Insulation
Halogen-free
Outer sheath
Halogen-free
Halogen free
IEC 60754-1
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
0.6/ 1 (1.2) kV
Usage characteristics
Usage characteristics
Fire retardant
NF C 32070 C1; IEC 60332-3-24 (cat.B)
Smoke density
EN/IEC 61034-2
Operating temperature, range
-20 ... 60 °C
Max. conductor temperature in service
90 °C
Nuclear Classification
Class 1 E Non LOCA/K3
Resources
Resources
Selling & delivery Information
Minimum bending radius:
8 x outer diameter
To be doubled during laying operations
Marking
NEXANS 279 Nber of cores & cross-section Cu/Al CST 74 C 068 00 K3 SH 0.6/1 (1.2) kV YYYY Manufacturing number + metric marking
Our websites
Select your country to find our products and solutions
-
Africa
- Africa
- Ghana
- Ivory Coast
- Morocco
- North West Africa
- Americas
- Asia
- Europe
- Oceania
