74C068 SH MT 6/10kV ... K3 NA
74C068 SH MT 6/10kV ... K3 NA
- Medium voltage cables 6/10 (12) kV
- CST 74C068
- Zero halogen (SH)
- Cables installed outside of the containment area (K3)
- Unarmoured (NA)

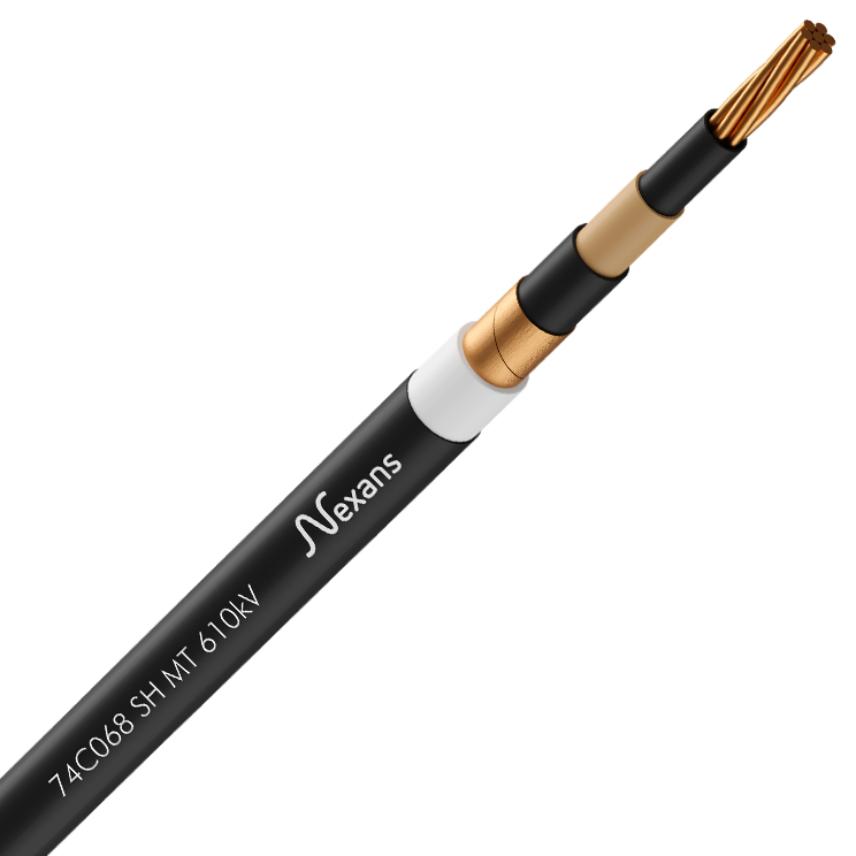

74C068 SH MT 6/10kV 1x400 Alu2 K3 NA
Nexans ref. 10195741
- Conductor material: Aluminum
- Conductor cross-section: 400 mm²
- Number of cores: 1
74C068 SH MT 6/10kV 1x630 Alu2 K3 NA
Nexans ref.
- Conductor material: Aluminum
- Conductor cross-section: 630 mm²
- Number of cores: 1
74C068 SH MT 6/10kV 1x400 Cu2 K3 NA
Nexans ref.
- Conductor material: Plain copper
- Conductor cross-section: 400 mm²
- Number of cores: 1

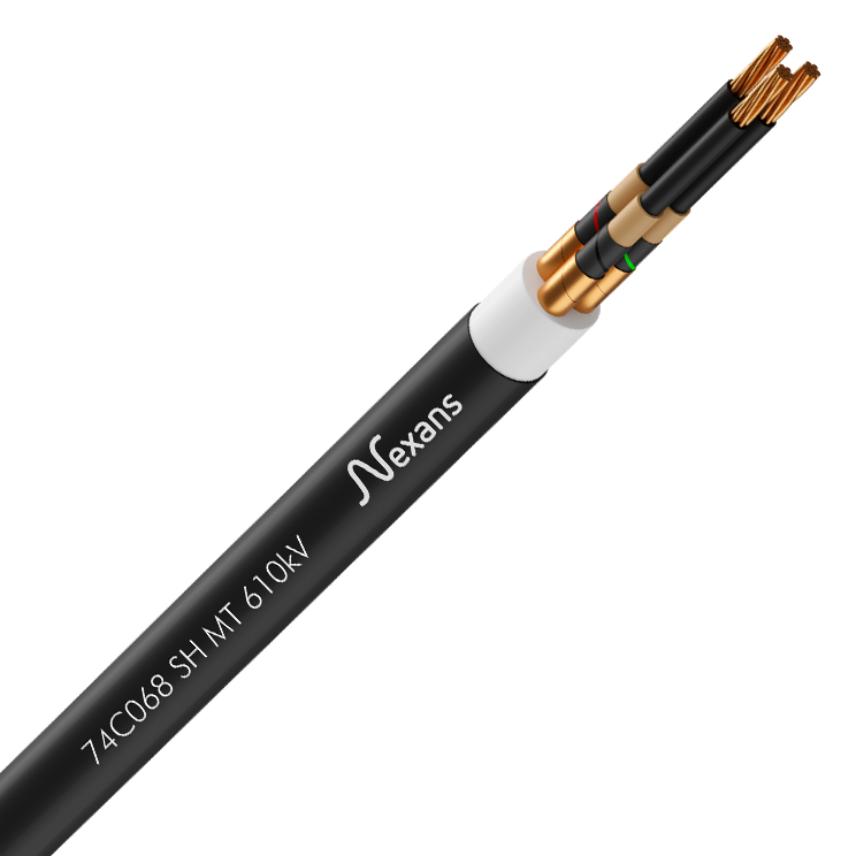

74C068 SH MT 6/10kV 3x50 Cu2 K3 NA
Nexans ref.
- Conductor material: Plain copper
- Conductor cross-section: 50 mm²
- Number of cores: 3
Description
Description
Standards
-
ProductIEC 60228; IEC 60502-2
-
TestIEC 60332-3-23; IEC 60754-1; IEC 61034-2; NF C32-070/C1
Applications
These medium voltage cables are used for medium voltage power supply,
Design
Conductor:
Stranded bare copper or aluminium (class 2)
Screen:
Semi-conductor
Insulation:
Ethylene Propylene Rubber (EPR)
Insulation screen:
Semi-conductor
Copper tape
Assembling sheath:
Halogen free
Outer sheath:
Low smoke, zero halogen (LSZH)
Colour: Black
Core identification
1x: natural
3x: black - green - brown (by tape under copper screen)
Marking
NEXANS 279 Nber of cores & cross-section Cu/Al CST 74 C 068 00 K3 SH 6/10(12) kV YYYY Manufacturing number + metric marking
Standard
IEC 60332-3-23(B)
Quality insurance according ot RCC-E
Assembling sheath:
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
Minimum bending radius:
1 core: 10 x outer diameter
Multi: 8 x outer diameter
To be doubled during laying operations
