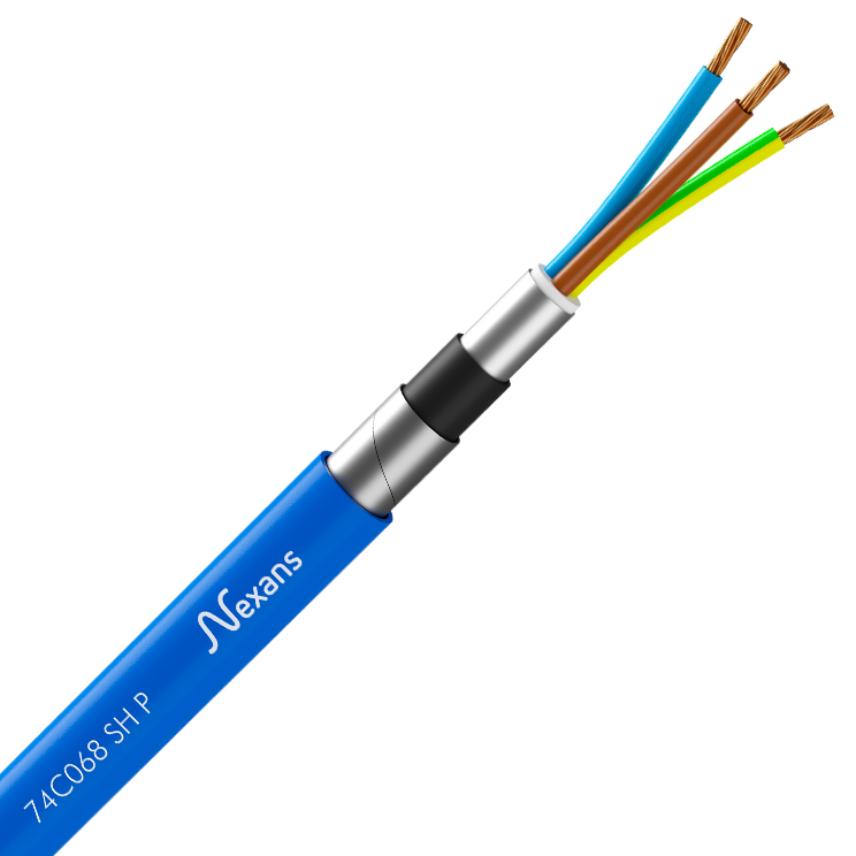

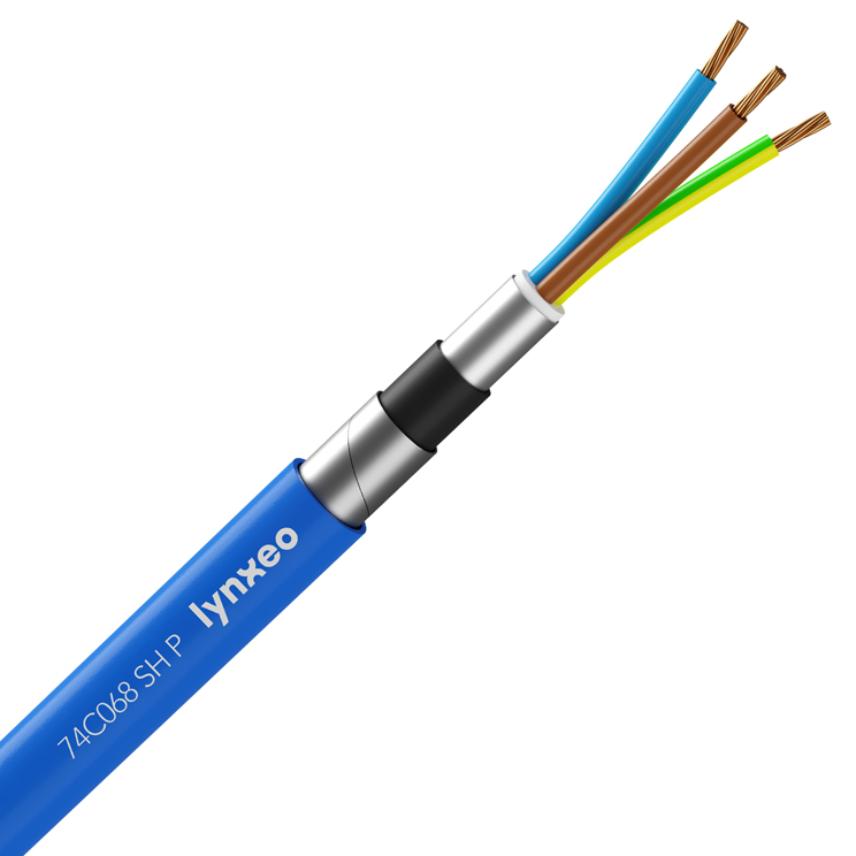

74C068 SH P ... K3 AR
74C068 SH P ... K3 AR
- Low voltage cables 0.6/1 (1.2) V
- CST 74C068
- Zero halogen (SH)
- Cables installed outside of the containment area (K3)
- Armoured (NA)
74C068 SH P 2x2,5 Cu2 K3 AR
Nexans ref. 10176143
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- With Green/Yellow core: No
- Conductor cross-section: 2.5 mm²
- Number of cores: 2
74C068 SH P 3x2,5 Cu2 K3 AR
Nexans ref. 10176144
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- With Green/Yellow core: No
- Conductor cross-section: 2.5 mm²
- Number of cores: 3
74C068 SH P 3G2,5 Cu2 K3 AR
Nexans ref. 10219595
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- With Green/Yellow core: Yes
- Conductor cross-section: 2.5 mm²
- Number of cores: 3
74C068 SH P 4G2,5 Cu2 k3 AR
Nexans ref. 10224741
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- With Green/Yellow core: Yes
- Conductor cross-section: 2.5 mm²
- Number of cores: 4
74C068 SH P 4x2,5 Cu2 K3 AR
Nexans ref. 10176145
- Conductor material: Plain copper
- With Green/Yellow core: No
- Conductor cross-section: 2.5 mm²
- Number of cores: 4
74C068 SH P 5G2,5 Cu2 k3 AR
Nexans ref. 10221775
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- With Green/Yellow core: Yes
- Conductor cross-section: 2.5 mm²
- Number of cores: 5
74C068 SH P 2x6 Cu2 k3 AR
Nexans ref. 10176149
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- With Green/Yellow core: No
- Conductor cross-section: 6 mm²
- Number of cores: 2
74C068 SH P 3x6 Cu2 k3 AR
Nexans ref. 10176150
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- With Green/Yellow core: No
- Conductor cross-section: 6 mm²
- Number of cores: 3
74C068 SH P 4x6 Cu2 k3 AR
Nexans ref. 10176151
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- With Green/Yellow core: No
- Conductor cross-section: 6 mm²
- Number of cores: 4
74C068 SH P 5G6 Cu2 k3 AR
Nexans ref. 10224781
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- With Green/Yellow core: Yes
- Conductor cross-section: 6 mm²
- Number of cores: 5
74C068 SH P 2x16 Cu2 k3 AR
Nexans ref. 10176155
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- With Green/Yellow core: No
- Conductor cross-section: 16 mm²
- Number of cores: 2
74C068 SH P 4x16 Cu2 k3 AR
Nexans ref. 10176157
- Conductor material: Plain copper
- With Green/Yellow core: No
- Conductor cross-section: 16 mm²
- Number of cores: 4
74C068 SH P 3x35 Cu2 k3 AR
Nexans ref. 10176162
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- With Green/Yellow core: No
- Conductor cross-section: 35 mm²
- Number of cores: 3
74C068 SH P 4x35 Cu2 K3 AR
Nexans ref. 10176163
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- With Green/Yellow core: No
- Conductor cross-section: 35 mm²
- Number of cores: 4
74C068 SH P 3x95 Cu2 K3 Ar
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- With Green/Yellow core: No
- Conductor cross-section: 95 mm²
- Number of cores: 3
74C068 SH P 1x240 Cu2 K3 AR
Nexans ref.
- Packaging: Cut to length (m)
- Conductor material: Plain copper
- With Green/Yellow core: No
- Conductor cross-section: 240 mm²
- Number of cores: 1
74C068 SH P 3x240 Alu2 k3 AR
Nexans ref. 10221827
- Packaging: Cut to length (m)
- Conductor material: Aluminum
- With Green/Yellow core: No
- Conductor cross-section: 240 mm²
- Number of cores: 3
Description
Description
Standards
-
ProductIEC 60228
-
TestIEC 60332-3-23; IEC 60754-1; IEC 61034-2; NF C32-070/C1
Applications
These low voltage cables are used for lighting system power supply, engine power supply and solenoid valve power supply. They are well adapted to under ground use.
Design
Conductor:
Stranded bare copper or aluminium (class 2)
Insulation:
Cross-linked halogen free (SH)
Covering (optional):
Flame retardant filler material
Inner sheath:
Low smoke, zero halogen (LSZH)
Armour:
Steel tape (STA) or aluminium tape (ATA) for 1 core cable
Outer sheath:
Low smoke, zero halogen (LSZH)
Colour: Blue
Core identification
According to HD308 S2
Marking
NEXANS 279 Nber of cores & cross-section Cu/Al Armé CST 74 C 068 00 K3 SH 0.6/1 (1.2) kV YYYY Manufacturing number + metric marking
Standard
IEC 60332-3-23(B)
Quality insurance according to RCC-E
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
Minimum bending radius:
10 x outer diameter
To be doubled during laying operations
