EN 4604-007 WN
EN 4604-007 WN
50 Ohms, Coaxial Cable
Designed for high frequency signal transmission in aircraft
electrical systems.
Description
Description
Standards
-
TestprEN 3475
-
InternationalprEN 4604-001, -002 and -007

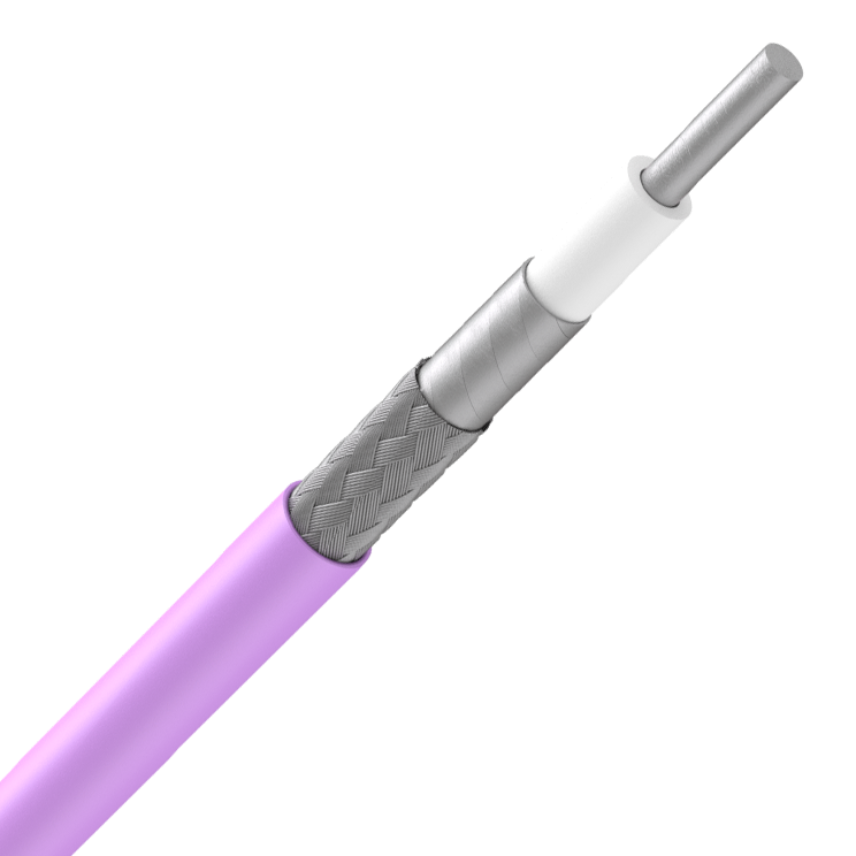

CORE
Solid silver plated copper
Diameter = 2.30 ± 0.03 mm
INSULATION
Expanded PTFE
Diameter = 6.20 ± 0.10 mm
SHIELD
1st layer
Silver plated copper tape
2nd layer
Silver plated copper braid
Strand diameter = 0.20 mm
Diameter = 7.50 ± 0.20 mm
JACKET
Violet FEP
Diameter = 8.00 ± 0.20 mm
Max. weight = 145 g/m
Electrical Charateristics
| Operating frequency | : up to 6 GHz |
| Operating voltage | : 1000Vac |
| Dielectric strength | : 3000Vac |
| Insulation resistance | : ≥ 5000 MΩ.km |
| Characteristic impedance | : 50 ± 3 Ω |
| Maximum linear capacitance | : 82 pF/m |
| Nominal velocity of propagation | : 243 000 km/s (81% relative) |
Attenuation and Power Handling
| Frequency | Max. Rated Power | Max. Attenuation at 20°C |
| (MHz) | (W) | (dB/100) |
| 50 | 8000 | 3.5 |
| 100 | 5000 | 5.5 |
| 400 | 3000 | 10 |
| 1000 | 2000 | 15 |
| 5000 | 800 | 35 |
| 6000 | 700 | 41 |
Characteristics
Characteristics
Dimensional characteristics
Dimensional characteristics
Diameter Aluminium Wire
10 mm
Usage characteristics
Usage characteristics
Operating temperature, range
-55 ... 200 °C
Minimum static operating bending radius
80 mm
Minimum dynamic operating bending radius
120.0 mm
Flame retardant
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
Oil resistance
Very good resistance to aircraft fluids
RoHS compliant
Yes
Resources
Resources
Selling & delivery Information
Colour of jacket : Black
Marking text : " EN WN FRF** "
FR = Country of Origin (FR = France)
F = Manufacturer (F = Nexans)
** = Year of manufacturing (ie. 14 = 2014)
