EN 3375-006D XM
EN 3375-006D XM

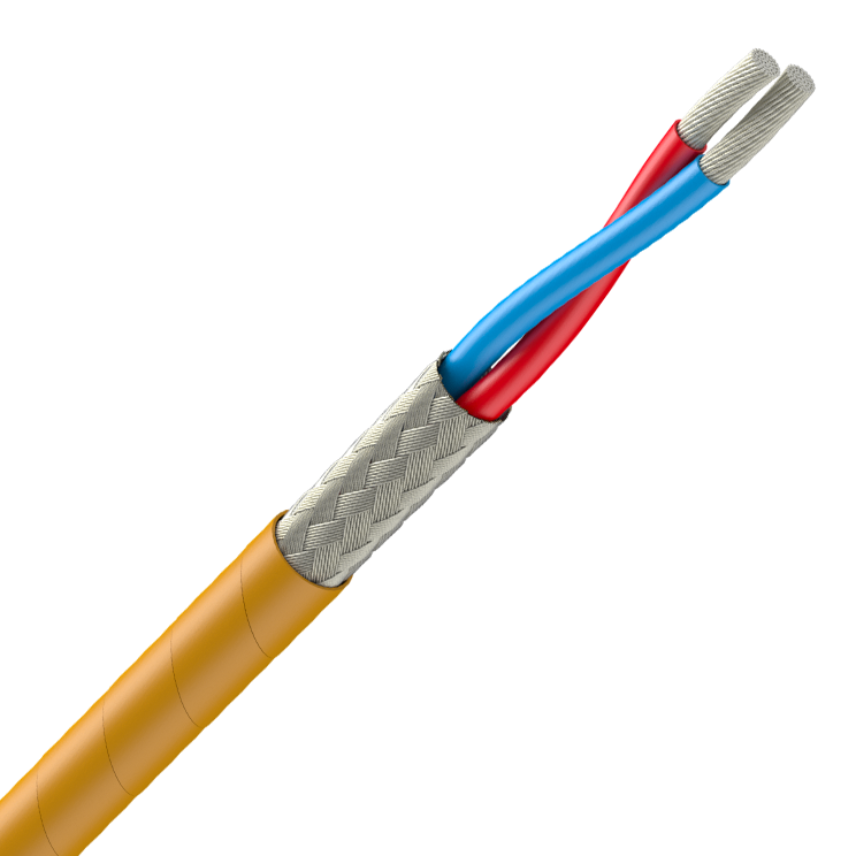

Data bus cable for aeronautic applications. Compatible RS 422
78 Ohms, AWG 24 - Shielded Pair - High temperature
Description
Description
Standards
-
ProductASNE 0290 XM; EN 3375-006
CORE
AWG 24, 19 x 0.12 mm
Nickel plated high strength copper alloy
Fluoropolymer insulation
ASSEMBLY
2 cores twisted
SHIELD
Nickel plated copper braid
Strand diameter = 0.08 mm
Coverage ≥ 62 %
JACKET
Polyimide Tapes
Electrical and high frequency performances
| Voltage rating | : 600 Vrms |
| Impedance from 1 Mhz to 200 MHz |
: 78 ± 7Ω |
| Mutual capacitance | : 64 pF/m ± 10% |
| Maximum attenuation | : 0.035 dB/m at 1 MHz |
| : 0.15 dB/m at 10 MHz |
Identification
| Colour of cores | : Light Blue + Red |
| Colour of jacket | : Natural |
| Colour of marking | : Black |
| Marking tape under jacket | : " - XM 24 FRF " |
| With | (FR) : Country of origin (FR = France) |
| (F) : Manufacturer (F = Filotex) | |
| (**) : Tear of manufacturing (ie. 14 = 2014) |
Characteristics
Characteristics
Usage characteristics
Usage characteristics
Operating temperature, range
-55 ... 200 °C
Flame retardant
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
Oil resistance
Very good resistance to aircraft fluids
