EN 4608-005B - GPB 24
EN 4608-005B - GPB 24
Use in the onboard electrical systems of aircraft.

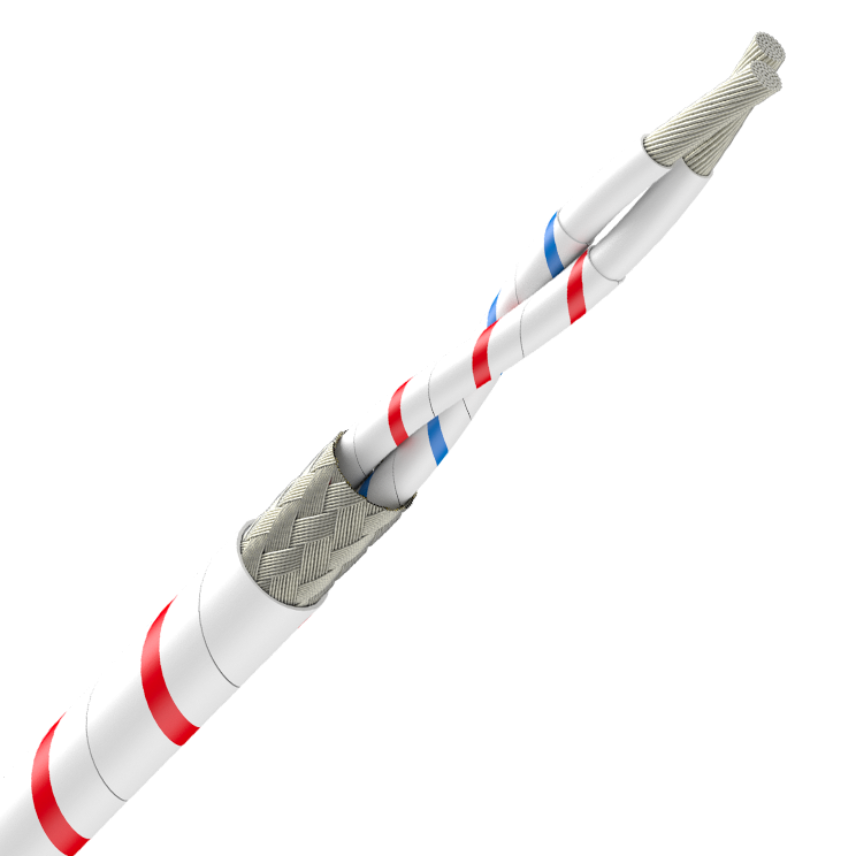

120 Ohms, AWG 24 - Fireproof Cable for Data Transmission - Two-cores twisted screened and jacketed
Description
Description
Standards
-
ProductEN 4608-005
CORE
AWG 24, 19 x 0.12 mm
Nickel clad copper alloy
INSULATION
Fire resistant insulation
Polyimide tape
PTFE tape
ASSEMBLY
2 cores twisted
SHIELD
0.12 mm
Nickel plated copper braid
JACKET
UV PTFE tape(s)
Electrical and high frequency performances
| Voltage rating | : 600V rms |
| Operating frequency | : up to 125 kHz |
| Capacitance | : 85 pF/m at 100 kHz |
| Impedance | : 120 ± 20% Ω at 100 kHz |
| Transfer impedance | : < 30 mΩ at 100 kHz |
| Attenuation | : < 1.6 dB/100m at 100 kHz |
Identification
| Colour of Cores | : White with a helical red stripe + White with a helical blue stripe |
| Colour of jacket | : White with a narrow red stripe |
| Marking text | : EN GPB 24 FRF** |
| With | FR = Country of origin (FR = France) |
| F = Manufacturer (F = Nexans) | |
| (**) = Year of manufacturing (ie. 14 = 2014) |
Characteristics
Characteristics
Usage characteristics
Usage characteristics
Operating temperature, range
-65 ... 260 °C
Fire resistant
-
Flame retardant
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
Oil resistance
Very good resistance to aircraft fluids
