STUDY 124843 - ASNE 0849 HJ 26

Description

Description

Standards

  • Product
    ASNE 0849 HJ

CORE
AWG 26, 19 x 0.10 mm
Stranded conductors
Nickel plated high strength copper alloy
Insulation :
Polyimide tape(s)
PTFE Topcoat

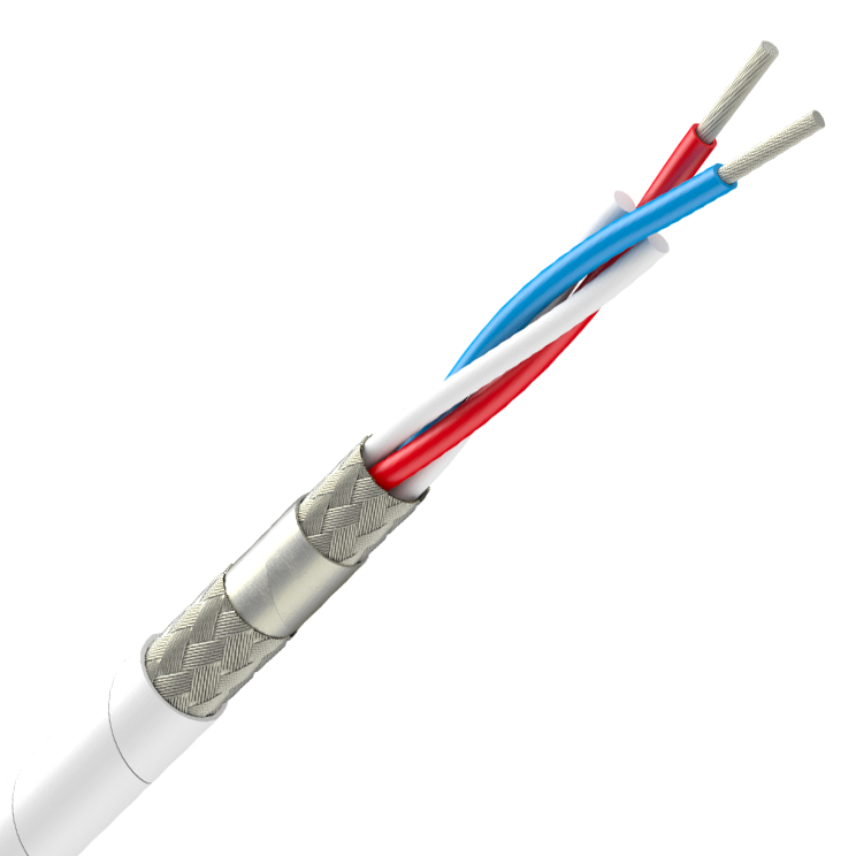

ASSEMBLY
2 cores twisted



SHIELD
0.08 mm Nickel plated copper braid

High immunity tapes

0.10 mm Nickel Plated Copper Braid



JACKET
FEP

Electrical and high frequency performances

Voltage rating : 600V rms
Max impedance : 75 Ohms
Transfer impedance : 28 mOhms/m DC current
  : 8.70 mOmhms/m at 10 kHz
  : 0.85 mOmhms/m at 100 kHz
  : 0.008 mOmhms/m at 2 MHz

Identification

Color of cores : Light Blue, Red
Color of jacket : White
Black marking of the external sheath : "HJ 26 FR F **"
With (FR) = Country of Origin (FR = France)
  (F) = Manufacturer (F = Filotex)
  (**) = Year of Manufacturing (ie.14 = 2014)

Characteristics

Characteristics

Usage characteristics

Usage characteristics

Operating temperature, range
-65 ... 200 °C
Minimum Bend Radius - Installed
30 mm
Flame retardant
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
Oil resistance
Good
