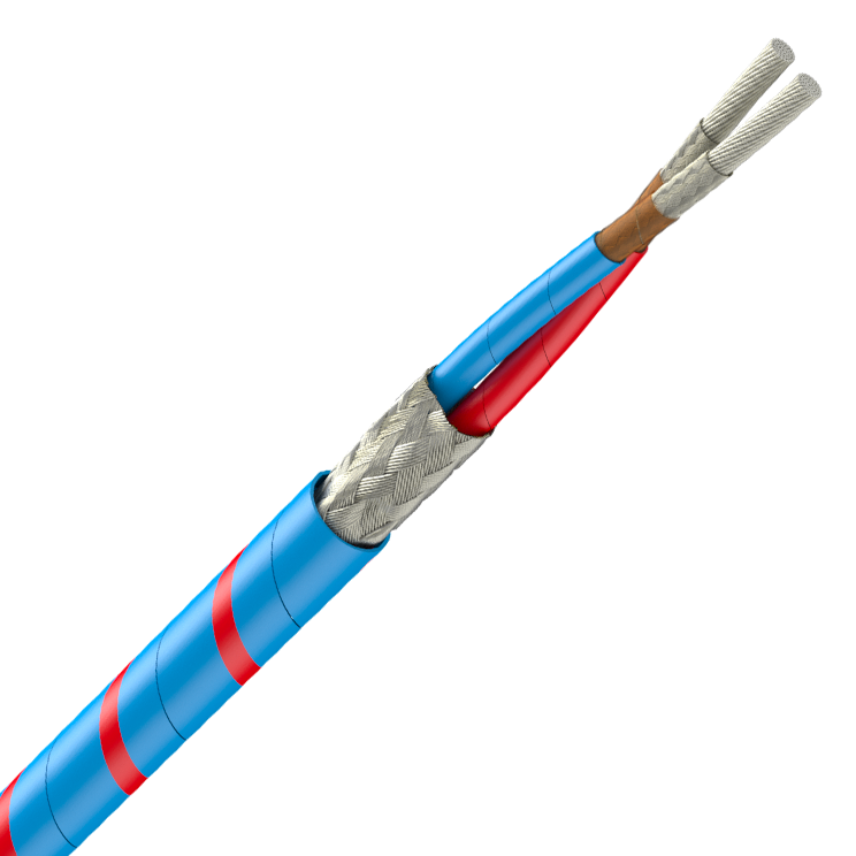

Data bus cabvle for aeronautic applications.
100 Ohms, AWG 24 - Shielded Pair - Fireproof Cable
Description
Description
Standards
-
NationalESW 1254-010
CORE
AWG 24, 19 x 0.12 mm
Nickel clad copper alloy
Fire resistant insulation
Polyimide Tape
PTFE Tape
ASSEMBLY
2 cores twisted
SHIELD
Nickel Plated Copper braid
Strand diameter = 0.12 mm
Coverage ≥ 62 %
JACKET
PTFE Tape(s)
Electrical and high frequency performances
| Voltage rating | : 600V rms |
| Operating frequency | : 125 kHz |
| Maximum capacitance | : 85 pF/m |
| Characteristic impedance | : 100 Ω at 1MHz |
| Maximum attenuation | : 1.6 dB/100m at 0.1 MHz |
| Maximum transfer impedance | : 30 mΩ/m at 0.1 MHz |
Identification
| Color of cores | : Blue + Red |
| Color of Jacket | : Light Blue with narrow red |
| Marking text | : "ET 132873 FRF**" |
| With | (**) = Year of manufacturing (ie. 14 = 2014) |
Characteristics
Characteristics
Usage characteristics
Usage characteristics
Operating temperature, range
-65 ... 260 °C
Fire resistant
-
Flame retardant
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
