ABS 1356 VNB, VNC, VND - Multi cores
ABS 1356 VNB, VNC, VND - Multi cores
Designed for general purpose aircraft wiring applications.
Screened and Jacketed Single and Multicores
UV Laser Printable
VNB 10
Product ref. ABS 1356 VNB 10 - Country ref. 10098781
- Core identification: Red, Blue
- Number of conductors: 2
- Nominal outer diameter: 7.07 mm
- Screen strands nominal diameter: 0.2 mm
- Maximum weight: 78.19 g/m
- Maximum outer diameter: 7.39 mm
- Nominal weight: 73.05 g/m
VNB 12
Product ref. ABS 1356 VNB 12 - Country ref. 10251144
- Core identification: Red, Blue
- Number of conductors: 2
- Nominal outer diameter: 5.85 mm
- Screen strands nominal diameter: 0.2 mm
- Maximum weight: 55.78 g/m
- Maximum outer diameter: 6.09 mm
- Nominal weight: 51.5 g/m
VNB 14
Product ref. ABS 1356 VNB 14 - Country ref. 10064870
- Core identification: Red, Blue
- Number of conductors: 2
- Nominal outer diameter: 4.93 mm
- Screen strands nominal diameter: 0.15 mm
- Maximum weight: 37.27 g/m
- Maximum outer diameter: 5.13 mm
- Nominal weight: 35.5 g/m
VNB 16
Product ref. ABS 1356 VNB 16 - Country ref. 10142975
- Core identification: Red, Blue
- Number of conductors: 2
- Nominal outer diameter: 4.27 mm
- Screen strands nominal diameter: 0.12 mm
- Maximum weight: 28.1 g/m
- Maximum outer diameter: 4.44 mm
- Nominal weight: 26.26 g/m
VNB 18
Product ref. ABS 1356 VNB 18 - Country ref. 10251145
- Core identification: Red, Blue
- Number of conductors: 2
- Nominal outer diameter: 3.61 mm
- Screen strands nominal diameter: 0.1 mm
- Maximum weight: 20.2 g/m
- Maximum outer diameter: 3.75 mm
- Nominal weight: 18.81 g/m
VNB 20
Product ref. ABS 1356 VNB 20
- Core identification: Red, Blue
- Number of conductors: 2
- Nominal outer diameter: 3.11 mm
- Screen strands nominal diameter: 0.1 mm
- Maximum weight: 14.88 g/m
- Maximum outer diameter: 3.27 mm
- Nominal weight: 14.31 g/m
VNB 22
Product ref. ABS 1356 VNB 22
- Core identification: Red, Blue
- Number of conductors: 2
- Nominal outer diameter: 2.53 mm
- Screen strands nominal diameter: 0.08 mm
- Maximum weight: 10.16 g/m
- Maximum outer diameter: 2.7 mm
- Nominal weight: 9.77 g/m
VNB 24
Product ref. ABS 1356 VNB 24 - Country ref. 10064869
- Core identification: Red, Blue
- Number of conductors: 2
- Nominal outer diameter: 2.27 mm
- Screen strands nominal diameter: 0.08 mm
- Maximum weight: 8.15 g/m
- Maximum outer diameter: 2.4 mm
- Nominal weight: 7.84 g/m
VNC 10
Product ref. ABS 1356 VNC 10 - Country ref. 10065077
- Core identification: Red,Blue,Yellow
- Number of conductors: 3
- Nominal outer diameter: 7.56 mm
- Screen strands nominal diameter: 0.2 mm
- Maximum weight: 107.6 g/m
- Maximum outer diameter: 7.9 mm
- Nominal weight: 100.81 g/m
VNC 12
Product ref. ABS 1356 VNC 12 - Country ref. 10251147
- Core identification: Red,Blue,Yellow
- Number of conductors: 3
- Nominal outer diameter: 6.25 mm
- Screen strands nominal diameter: 0.2 mm
- Maximum weight: 17.81 g/m
- Maximum outer diameter: 6.5 mm
- Nominal weight: 70.04 g/m
VNC 14
Product ref. ABS 1356 VNC 14 - Country ref. 10064872
- Core identification: Red,Blue,Yellow
- Number of conductors: 3
- Nominal outer diameter: 5.26 mm
- Screen strands nominal diameter: 0.15 mm
- Maximum weight: 50.8 g/m
- Maximum outer diameter: 5.47 mm
- Nominal weight: 48.38 g/m
VNC 16
Product ref. ABS 1356 VNC 16 - Country ref. 10142976
- Core identification: Red,Blue,Yellow
- Number of conductors: 3
- Nominal outer diameter: 4.62 mm
- Screen strands nominal diameter: 0.15 mm
- Maximum weight: 40.8 g/m
- Maximum outer diameter: 4.8 mm
- Nominal weight: 38.23 g/m
VNC 18
Product ref. ABS 1356 VNC 18 - Country ref. 10251148
- Core identification: Red,Blue,Yellow
- Number of conductors: 3
- Nominal outer diameter: 3.89 mm
- Screen strands nominal diameter: 0.12 mm
- Maximum weight: 28.8 g/m
- Maximum outer diameter: 4.05 mm
- Nominal weight: 26.89 g/m
VNC 20
Product ref. ABS 1356 VNC 20
- Core identification: Red,Blue,Yellow
- Number of conductors: 3
- Nominal outer diameter: 3.35 mm
- Screen strands nominal diameter: 0.12 mm
- Maximum weight: 21.15 g/m
- Maximum outer diameter: 3.52 mm
- Nominal weight: 20.34 g/m
VNC 22
Product ref. ABS 1356 VNC 22
- Core identification: Red,Blue,Yellow
- Number of conductors: 3
- Nominal outer diameter: 2.73 mm
- Screen strands nominal diameter: 0.1 mm
- Maximum weight: 14.52 g/m
- Maximum outer diameter: 2.91 mm
- Nominal weight: 13.96 g/m
VNC 24
Product ref. ABS 1356 VNC 24 - Country ref. 10064871
- Core identification: Red,Blue,Yellow
- Number of conductors: 3
- Nominal outer diameter: 2.45 mm
- Screen strands nominal diameter: 0.1 mm
- Maximum weight: 11.59 g/m
- Maximum outer diameter: 2.59 mm
- Nominal weight: 11.14 g/m
VND 14
Product ref. ABS 1356 VND 14
- Core identification: Red, Blue, Yellow, Green
- Number of conductors: 4
- Nominal outer diameter: 5.92 mm
- Screen strands nominal diameter: 0.2 mm
- Maximum weight: 70 g/m
- Maximum outer diameter: 6.16 mm
- Nominal weight: 66.67 g/m
VND 16
Product ref. ABS 1356 VND 16 - Country ref. 10064884
- Core identification: Red, Blue, Yellow, Green
- Number of conductors: 4
- Nominal outer diameter: 5.1 mm
- Screen strands nominal diameter: 0.15 mm
- Maximum weight: 51.3 g/m
- Maximum outer diameter: 5.3 mm
- Nominal weight: 48.14 g/m
VND 18
Product ref. ABS 1356 VND 18 - Country ref. 10142977
- Core identification: Red, Blue, Yellow, Green
- Number of conductors: 4
- Nominal outer diameter: 4.29 mm
- Screen strands nominal diameter: 0.12 mm
- Maximum weight: 36.22 g/m
- Maximum outer diameter: 4.46 mm
- Nominal weight: 33.83 g/m
VND 20
Product ref. ABS 1356 VND 20 - Country ref. 10251149
- Core identification: Red, Blue, Yellow, Green
- Number of conductors: 4
- Nominal outer diameter: 3.68 mm
- Screen strands nominal diameter: 0.12 mm
- Maximum weight: 26.39 g/m
- Maximum outer diameter: 3.86 mm
- Nominal weight: 25.38 g/m
VND 22
Product ref. ABS 1356 VND 22
- Core identification: Red, Blue, Yellow, Green
- Number of conductors: 4
- Nominal outer diameter: 2.99 mm
- Screen strands nominal diameter: 0.1 mm
- Maximum weight: 18.06 g/m
- Maximum outer diameter: 3.19 mm
- Nominal weight: 17.37 g/m
VND 24
Product ref. ABS 1356 VND 24 - Country ref. 10064873
- Core identification: Red, Blue, Yellow, Green
- Number of conductors: 4
- Nominal outer diameter: 2.68 mm
- Screen strands nominal diameter: 0.1 mm
- Maximum weight: 17.29 g/m
- Maximum outer diameter: 2.84 mm
- Nominal weight: 13.74 g/m
Description
Description
Standards
-
ProductABS 1356
-
TestprEN 3475

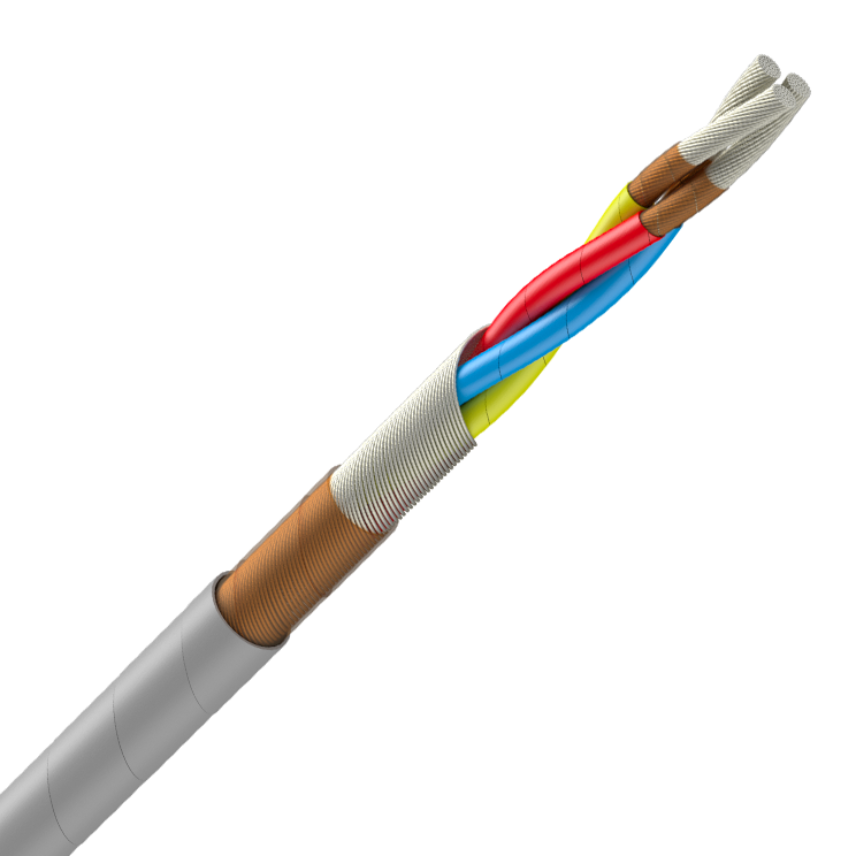

Design Construction
CONDUCTOR
1, 2, 3 or 4 cores ABS 0949 AD
Nickel Copper Clad Aluminium
SCREEN
Nickel-plated copper spiral screen
JACKET
Polymide tape
UV PTFE tape
Core Identification Colours
CORE
1 core (VNA) : Grey
2 cores (VNB) : Red - Blue
3 cores (VNC) : Red - Blue - Yellow
4 cores (VND) : Red - Blue - Yellow - Green
Marking text : " ADA ** FR F++ "
Jacket Identification
Colour of marking : Grey
Marking text : " XXX ** FR F++ "
Colour : Green for AWG 22, 18, 14 and 10 - Blue for AWG 24, 20, 16 and 12
ELECTRICAL AND HIGH FREQUENCY PERFORMANCES
Voltage rating : 600 Volts RMS at sea level,
Usual Aerospace application are using 115 volts (Phase to neutral)
And 200 Volts (Phase to phase) 400 Hz AC or 29 Volts DC.
Maximum operating frequency: 2000Hz
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Selling & delivery Information
IDENTIFICATION
Core marking in black ADA ** FR F++
Jacket marking
XXX ** FR F++
Color : Green for AWG 22, 18, 14 and 10 ; Blue for AWG 24, 20, 16 and 12
with :
XXX= Short designation (VNA, VNB, VNC, VND)
** = AWG
FR = Country of origin (FR = France)
F = Manufacturer (F = Lynxeo)
++= Year of production (i.e. 08 = 2008)
