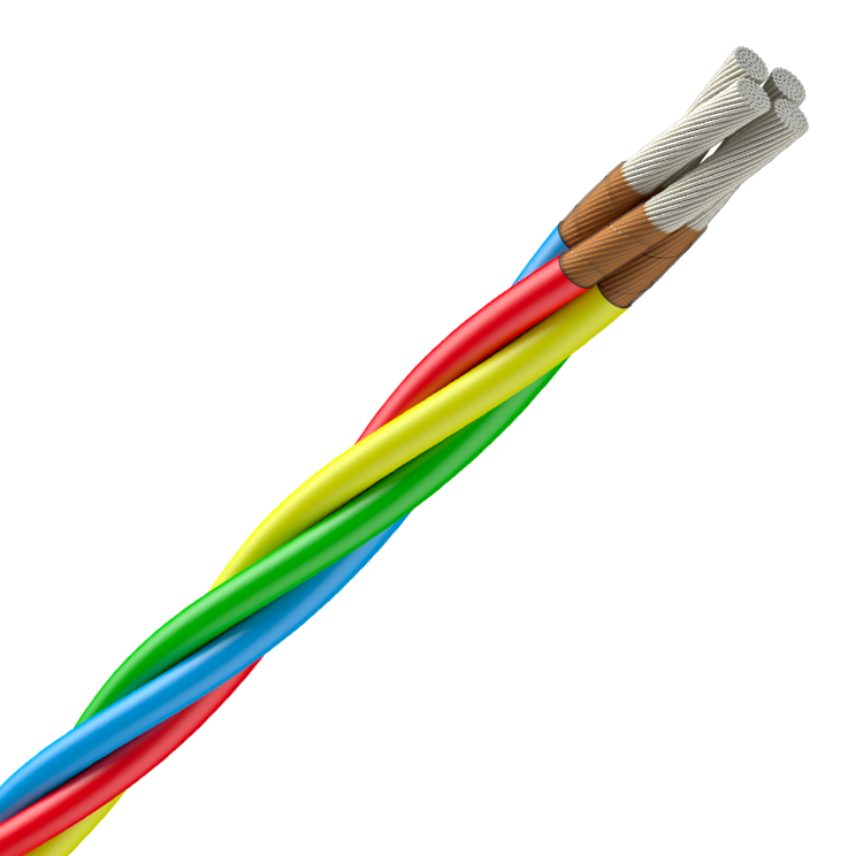

EN 2267-009 DRB, DRC, DRD

Designed for general Purpose Aircraft Wiring Applications.

Multicores DRA

Datasheet PDF

Products
Description
Characteristics
Resources

Products

Actions

Filters

Maximum outer diameter

6.66 mm 5.4 mm 4.48 mm 3.84 mm 3.22 mm 2.68 mm 2.2 mm 1.92 mm 1.68 mm 14.82 mm 11.4 mm 8.8 mm 7.16 mm 5.81 mm 4.82 mm 4.13 mm 3.46 mm 2.88 mm 2.37 mm 2.06 mm 1.81 mm 15.93 mm 12.26 mm 9.46 mm 7.99 mm 6.48 mm 5.38 mm 4.61 mm 3.86 mm 2.64 mm 2.3 mm 2.02 mm 17.78 mm 13.68 mm 10.56 mm
Nominal outer diameter

6.42 mm 5.14 mm 4.32 mm 3.66 mm 3.08 mm 2.6 mm 2.1 mm 1.82 mm 1.56 mm 14.12 mm 11.1 mm 8.6 mm 6.92 mm 5.54 mm 4.65 mm 3.94 mm 3.32 mm 2.8 mm 2.26 mm 1.96 mm 1.68 mm 15.21 mm 11.96 mm 9.27 mm 7.75 mm 6.2 mm 5.21 mm 4.42 mm 3.72 mm 3.14 mm 2.53 mm 2.2 mm 1.88 mm 17.04 mm 13.4 mm 10.38 mm
Number of cores

2 3 4
Maximum weight

102.69 g/m 64.54 g/m 40.75 g/m 30.1 g/m 21.49 g/m 14.11 g/m 8.53 g/m 5.6 g/m 4.28 g/m 457.32 g/m 278.1 g/m 185.4 g/m 154.04 g/m 96.81 g/m 61.12 g/m 45.14 g/m 32.23 g/m 21.17 g/m 12.79 g/m 8.4 g/m 6.43 g/m 685.98 g/m 417.15 g/m 205.38 g/m 129.08 g/m 81.49 g/m 60.19 g/m 42.97 g/m 28.22 g/m 17.06 g/m 11.21 g/m 8.57 g/m 914.64 g/m 556.2 g/m 370.8 g/m
Nominal weight

96.63 g/m 59.67 g/m 39.39 g/m 28.66 g/m 20.71 g/m 13.4 g/m 7.94 g/m 5.39 g/m 3.98 g/m 438.91 g/m 270.12 g/m 179.13 g/m 144.95 g/m 89.5 g/m 59.09 g/m 42.99 g/m 31.06 g/m 20.1 g/m 11.9 g/m 8.08 g/m 5.97 g/m 658.36 g/m 405.17 g/m 268.7 g/m 193.27 g/m 119.34 g/m 78.78 g/m 57.32 g/m 41.41 g/m 26.81 g/m 15.87 g/m 10.77 g/m 7.96 g/m 877.81 g/m 540.23 g/m 358.26 g/m
Maximum DC resistance at 20°C

4.22 Ohm/100m 6.99 Ohm/100m 11.2 Ohm/100m 14.9 Ohm/100m 21.7 Ohm/100m 34.1 Ohm/100m 61.7 Ohm/100m 117 Ohm/100m 165 Ohm/100m 1 Ohm/100m 1.63 Ohm/100m 2.37 Ohm/100m

Maximum outer diameter
- 6.66 mm
- 5.4 mm
- 4.48 mm
- 3.84 mm
- 3.22 mm
- 2.68 mm
- 2.2 mm
- 1.92 mm
- 1.68 mm
- 14.82 mm
- 11.4 mm
- 8.8 mm
- 7.16 mm
- 5.81 mm
- 4.82 mm
- 4.13 mm
- 3.46 mm
- 2.88 mm
- 2.37 mm
- 2.06 mm
- 1.81 mm
- 15.93 mm
- 12.26 mm
- 9.46 mm
- 7.99 mm
- 6.48 mm
- 5.38 mm
- 4.61 mm
- 3.86 mm
- 2.64 mm
- 2.3 mm
- 2.02 mm
- 17.78 mm
- 13.68 mm
- 10.56 mm
Nominal outer diameter
- 6.42 mm
- 5.14 mm
- 4.32 mm
- 3.66 mm
- 3.08 mm
- 2.6 mm
- 2.1 mm
- 1.82 mm
- 1.56 mm
- 14.12 mm
- 11.1 mm
- 8.6 mm
- 6.92 mm
- 5.54 mm
- 4.65 mm
- 3.94 mm
- 3.32 mm
- 2.8 mm
- 2.26 mm
- 1.96 mm
- 1.68 mm
- 15.21 mm
- 11.96 mm
- 9.27 mm
- 7.75 mm
- 6.2 mm
- 5.21 mm
- 4.42 mm
- 3.72 mm
- 3.14 mm
- 2.53 mm
- 2.2 mm
- 1.88 mm
- 17.04 mm
- 13.4 mm
- 10.38 mm
Number of cores
- 2
- 3
- 4
Maximum weight
- 102.69 g/m
- 64.54 g/m
- 40.75 g/m
- 30.1 g/m
- 21.49 g/m
- 14.11 g/m
- 8.53 g/m
- 5.6 g/m
- 4.28 g/m
- 457.32 g/m
- 278.1 g/m
- 185.4 g/m
- 154.04 g/m
- 96.81 g/m
- 61.12 g/m
- 45.14 g/m
- 32.23 g/m
- 21.17 g/m
- 12.79 g/m
- 8.4 g/m
- 6.43 g/m
- 685.98 g/m
- 417.15 g/m
- 205.38 g/m
- 129.08 g/m
- 81.49 g/m
- 60.19 g/m
- 42.97 g/m
- 28.22 g/m
- 17.06 g/m
- 11.21 g/m
- 8.57 g/m
- 914.64 g/m
- 556.2 g/m
- 370.8 g/m
Nominal weight
- 96.63 g/m
- 59.67 g/m
- 39.39 g/m
- 28.66 g/m
- 20.71 g/m
- 13.4 g/m
- 7.94 g/m
- 5.39 g/m
- 3.98 g/m
- 438.91 g/m
- 270.12 g/m
- 179.13 g/m
- 144.95 g/m
- 89.5 g/m
- 59.09 g/m
- 42.99 g/m
- 31.06 g/m
- 20.1 g/m
- 11.9 g/m
- 8.08 g/m
- 5.97 g/m
- 658.36 g/m
- 405.17 g/m
- 268.7 g/m
- 193.27 g/m
- 119.34 g/m
- 78.78 g/m
- 57.32 g/m
- 41.41 g/m
- 26.81 g/m
- 15.87 g/m
- 10.77 g/m
- 7.96 g/m
- 877.81 g/m
- 540.23 g/m
- 358.26 g/m
Maximum DC resistance at 20°C

products

Actions

Share Datasheet

DRB 10 051

Product ref. EN 2267-009B 051P (DRB 10) - Country ref. 10132397

Core identification: Red, Blue
Maximum outer diameter: 6.66 mm
Nominal outer diameter: 6.42 mm
Number of cores: 2
Maximum weight: 102.69 g/m
Nominal weight: 96.63 g/m
Maximum DC resistance at 20°C: 4.22 Ohm/100m

Datasheet PDF

DRB 12 030

Product ref. EN 2267-009B 030P (DRB 12) - Country ref. 10066384

Core identification: Red, Blue
Maximum outer diameter: 5.4 mm
Nominal outer diameter: 5.14 mm
Number of cores: 2
Maximum weight: 64.54 g/m
Nominal weight: 59.67 g/m
Maximum DC resistance at 20°C: 6.99 Ohm/100m

Datasheet PDF

DRB 14 020

Product ref. EN 2267-009B 020P (DRB 14) - Country ref. 10062808

Core identification: Red, Blue
Maximum outer diameter: 4.48 mm
Nominal outer diameter: 4.32 mm
Number of cores: 2
Maximum weight: 40.75 g/m
Nominal weight: 39.39 g/m
Maximum DC resistance at 20°C: 11.2 Ohm/100m

Datasheet PDF

DRB 16 012

Product ref. EN 2267-009B 012P (DRB 16) - Country ref. 10121194

Core identification: Red, Blue
Maximum outer diameter: 3.84 mm
Nominal outer diameter: 3.66 mm
Number of cores: 2
Maximum weight: 30.1 g/m
Nominal weight: 28.66 g/m
Maximum DC resistance at 20°C: 14.9 Ohm/100m

Datasheet PDF

DRB 18 010

Product ref. EN 2267-009B 010P (DRB 18) - Country ref. 10121193

Core identification: Red, Blue
Maximum outer diameter: 3.22 mm
Nominal outer diameter: 3.08 mm
Number of cores: 2
Maximum weight: 21.49 g/m
Nominal weight: 20.71 g/m
Maximum DC resistance at 20°C: 21.7 Ohm/100m

Datasheet PDF

DRB 20 006

Product ref. EN 2267-009B 006P (DRB 20) - Country ref. 10062807

Core identification: Red, Blue
Maximum outer diameter: 2.68 mm
Nominal outer diameter: 2.6 mm
Number of cores: 2
Maximum weight: 14.11 g/m
Nominal weight: 13.4 g/m
Maximum DC resistance at 20°C: 34.1 Ohm/100m

Datasheet PDF

DRB 22 004

Product ref. EN 2267-009B 004P (DRB 22) - Country ref. 10062806

Core identification: Red, Blue
Maximum outer diameter: 2.2 mm
Nominal outer diameter: 2.1 mm
Number of cores: 2
Maximum weight: 8.53 g/m
Nominal weight: 7.94 g/m
Maximum DC resistance at 20°C: 61.7 Ohm/100m

Datasheet PDF

DRB 24 002

Product ref. EN 2267-009B 002P (DRB 24) - Country ref. 10066382

Core identification: Red, Blue
Maximum outer diameter: 1.92 mm
Nominal outer diameter: 1.82 mm
Number of cores: 2
Maximum weight: 5.6 g/m
Nominal weight: 5.39 g/m
Maximum DC resistance at 20°C: 117 Ohm/100m

Datasheet PDF

DRB 26 001

Product ref. EN 2267-009B 001P (DRB 26) - Country ref. 10066375

Core identification: Red, Blue
Maximum outer diameter: 1.68 mm
Nominal outer diameter: 1.56 mm
Number of cores: 2
Maximum weight: 4.28 g/m
Nominal weight: 3.98 g/m
Maximum DC resistance at 20°C: 165 Ohm/100m

Datasheet PDF

DRB 4 220

Product ref. EN 2267-009B 220P (DRB 4) - Country ref. 10098671

Core identification: Red, Blue
Maximum outer diameter: 14.82 mm
Nominal outer diameter: 14.12 mm
Number of cores: 2
Maximum weight: 457.32 g/m
Nominal weight: 438.91 g/m
Maximum DC resistance at 20°C: 1 Ohm/100m

Datasheet PDF

DRB 6 140

Product ref. EN 2267-009B 001P (DRB 6)

Core identification: Red, Blue
Maximum outer diameter: 11.4 mm
Nominal outer diameter: 11.1 mm
Number of cores: 2
Maximum weight: 278.1 g/m
Nominal weight: 270.12 g/m
Maximum DC resistance at 20°C: 1.63 Ohm/100m

Datasheet PDF

DRB 8 090

Product ref. EN 2267-009B 090P (DRB 8) - Country ref. 10124422

Core identification: Red, Blue
Maximum outer diameter: 8.8 mm
Nominal outer diameter: 8.6 mm
Number of cores: 2
Maximum weight: 185.4 g/m
Nominal weight: 179.13 g/m
Maximum DC resistance at 20°C: 2.37 Ohm/100m

Datasheet PDF

DRC 10 051

Product ref. EN 2267-009C 051P (DRC 10) - Country ref. 10068341

Core identification: Red,Blue,Yellow
Maximum outer diameter: 7.16 mm
Nominal outer diameter: 6.92 mm
Number of cores: 3
Maximum weight: 154.04 g/m
Nominal weight: 144.95 g/m
Maximum DC resistance at 20°C: 4.22 Ohm/100m

Datasheet PDF

DRC 12 030

Product ref. EN 2267-009C 030P (DRC 12) - Country ref. 10068340

Core identification: Red,Blue,Yellow
Maximum outer diameter: 5.81 mm
Nominal outer diameter: 5.54 mm
Number of cores: 3
Maximum weight: 96.81 g/m
Nominal weight: 89.5 g/m
Maximum DC resistance at 20°C: 6.99 Ohm/100m

Datasheet PDF

DRC 14 020

Product ref. EN 2267-009C 020P (DRC 14) - Country ref. 10062789

Core identification: Red,Blue,Yellow
Maximum outer diameter: 4.82 mm
Nominal outer diameter: 4.65 mm
Number of cores: 3
Maximum weight: 61.12 g/m
Nominal weight: 59.09 g/m
Maximum DC resistance at 20°C: 11.2 Ohm/100m

Datasheet PDF

DRC 16 012

Product ref. EN 2267-009C 012P (DRC 16) - Country ref. 10117287

Core identification: Red,Blue,Yellow
Maximum outer diameter: 4.13 mm
Nominal outer diameter: 3.94 mm
Number of cores: 3
Maximum weight: 45.14 g/m
Nominal weight: 42.99 g/m
Maximum DC resistance at 20°C: 14.9 Ohm/100m

Datasheet PDF

DRC 18 010

Product ref. EN 2267-009C 010P (DRC 18 )

Core identification: Red,Blue,Yellow
Maximum outer diameter: 3.46 mm
Nominal outer diameter: 3.32 mm
Number of cores: 3
Maximum weight: 32.23 g/m
Nominal weight: 31.06 g/m
Maximum DC resistance at 20°C: 21.7 Ohm/100m

Datasheet PDF

DRC 20 006

Product ref. EN 2267-009C 006P (DRC 20) - Country ref. 10062690

Core identification: Red,Blue,Yellow
Maximum outer diameter: 2.88 mm
Nominal outer diameter: 2.8 mm
Number of cores: 3
Maximum weight: 21.17 g/m
Nominal weight: 20.1 g/m
Maximum DC resistance at 20°C: 34.1 Ohm/100m

Datasheet PDF

DRC 22 004

Product ref. EN 2267-009C 004P (DRC 22) - Country ref. 10062687

Core identification: Red,Blue,Yellow
Maximum outer diameter: 2.37 mm
Nominal outer diameter: 2.26 mm
Number of cores: 3
Maximum weight: 12.79 g/m
Nominal weight: 11.9 g/m
Maximum DC resistance at 20°C: 61.7 Ohm/100m

Datasheet PDF

DRC 24 002

Product ref. EN 2267-009C 002P (DRC 24) - Country ref. 10062686

Core identification: Red,Blue,Yellow
Maximum outer diameter: 2.06 mm
Nominal outer diameter: 1.96 mm
Number of cores: 3
Maximum weight: 8.4 g/m
Nominal weight: 8.08 g/m
Maximum DC resistance at 20°C: 117 Ohm/100m

Datasheet PDF

DRC 26 001

Product ref. EN 2267-009C 001P (DRC 26)

Core identification: Red,Blue,Yellow
Maximum outer diameter: 1.81 mm
Nominal outer diameter: 1.68 mm
Number of cores: 3
Maximum weight: 6.43 g/m
Nominal weight: 5.97 g/m
Maximum DC resistance at 20°C: 165 Ohm/100m

Datasheet PDF

DRC 4 220

Product ref. EN 2267-009C 220P (DRC 4)

Core identification: Red,Blue,Yellow
Maximum outer diameter: 15.93 mm
Nominal outer diameter: 15.21 mm
Number of cores: 3
Maximum weight: 685.98 g/m
Nominal weight: 658.36 g/m
Maximum DC resistance at 20°C: 1 Ohm/100m

Datasheet PDF

DRC 6 140

Product ref. EN 2267-009C 140P (DRC 6) - Country ref. 10062790

Core identification: Red,Blue,Yellow
Maximum outer diameter: 12.26 mm
Nominal outer diameter: 11.96 mm
Number of cores: 3
Maximum weight: 417.15 g/m
Nominal weight: 405.17 g/m
Maximum DC resistance at 20°C: 1.63 Ohm/100m

Datasheet PDF

DRC 8 090

Product ref. EN 2267-009C 090P (DRC 8) - Country ref. 10068342

Core identification: Red,Blue,Yellow
Maximum outer diameter: 9.46 mm
Nominal outer diameter: 9.27 mm
Number of cores: 3
Maximum weight: 278.1 g/m
Nominal weight: 268.7 g/m
Maximum DC resistance at 20°C: 2.37 Ohm/100m

Datasheet PDF

DRD 10 051

Product ref. EN 2267-009D 051P (DRD 10) - Country ref. 10140495

Core identification: Red, Blue, Yellow, Green
Maximum outer diameter: 7.99 mm
Nominal outer diameter: 7.75 mm
Number of cores: 4
Maximum weight: 205.38 g/m
Nominal weight: 193.27 g/m
Maximum DC resistance at 20°C: 4.22 Ohm/100m

Datasheet PDF

DRD 12 030

Product ref. EN 2267-009D 030P (DRD 12) - Country ref. 10140494

Core identification: Red, Blue, Yellow, Green
Maximum outer diameter: 6.48 mm
Nominal outer diameter: 6.2 mm
Number of cores: 4
Maximum weight: 129.08 g/m
Nominal weight: 119.34 g/m
Maximum DC resistance at 20°C: 6.99 Ohm/100m

Datasheet PDF

DRD 14 020

Product ref. EN 2267-009D 020P (DRD 14) - Country ref. 10065072

Core identification: Red, Blue, Yellow, Green
Maximum outer diameter: 5.38 mm
Nominal outer diameter: 5.21 mm
Number of cores: 4
Maximum weight: 81.49 g/m
Nominal weight: 78.78 g/m
Maximum DC resistance at 20°C: 11.2 Ohm/100m

Datasheet PDF

DRD 16 012

Product ref. EN 2267-009D 012P (DRD 16) - Country ref. 10117289

Core identification: Red, Blue, Yellow, Green
Maximum outer diameter: 4.61 mm
Nominal outer diameter: 4.42 mm
Number of cores: 4
Maximum weight: 60.19 g/m
Nominal weight: 57.32 g/m
Maximum DC resistance at 20°C: 14.9 Ohm/100m

Datasheet PDF

DRD 18 010

Product ref. EN 2267-009D 010P (DRD 18)

Core identification: Red, Blue, Yellow, Green
Maximum outer diameter: 3.86 mm
Nominal outer diameter: 3.72 mm
Number of cores: 4
Maximum weight: 42.97 g/m
Nominal weight: 41.41 g/m
Maximum DC resistance at 20°C: 21.7 Ohm/100m

Datasheet PDF

DRD 20 006

Product ref. EN 2267-009D 006P (DRD 20) - Country ref. 10062805

Core identification: Red, Blue, Yellow, Green
Maximum outer diameter: 3.22 mm
Nominal outer diameter: 3.14 mm
Number of cores: 4
Maximum weight: 28.22 g/m
Nominal weight: 26.81 g/m
Maximum DC resistance at 20°C: 34.1 Ohm/100m

Datasheet PDF

DRD 22 004

Product ref. EN 2267-009D 004P (DRD 22) - Country ref. 10062804

Core identification: Red, Blue, Yellow, Green
Maximum outer diameter: 2.64 mm
Nominal outer diameter: 2.53 mm
Number of cores: 4
Maximum weight: 17.06 g/m
Nominal weight: 15.87 g/m
Maximum DC resistance at 20°C: 61.7 Ohm/100m

Datasheet PDF

DRD 24 002

Product ref. EN 2267-009D 002P (DRD 24) - Country ref. 10062793

Core identification: Red, Blue, Yellow, Green
Maximum outer diameter: 2.3 mm
Nominal outer diameter: 2.2 mm
Number of cores: 4
Maximum weight: 11.21 g/m
Nominal weight: 10.77 g/m
Maximum DC resistance at 20°C: 117 Ohm/100m

Datasheet PDF

DRD 26 001

Product ref. EN 2267-009D 001P (DRD 26)

Core identification: Red, Blue, Yellow, Green
Maximum outer diameter: 2.02 mm
Nominal outer diameter: 1.88 mm
Number of cores: 4
Maximum weight: 8.57 g/m
Nominal weight: 7.96 g/m
Maximum DC resistance at 20°C: 165 Ohm/100m

Datasheet PDF

DRD 4 220

Product ref. EN 2267-009D 220P (DRD 4)

Core identification: Red, Blue, Yellow, Green
Maximum outer diameter: 17.78 mm
Nominal outer diameter: 17.04 mm
Number of cores: 4
Maximum weight: 914.64 g/m
Nominal weight: 877.81 g/m
Maximum DC resistance at 20°C: 1 Ohm/100m

Datasheet PDF

DRD 6 140

Product ref. EN 2267-009D 140P (DRD 6)

Core identification: Red, Blue, Yellow, Green
Maximum outer diameter: 13.68 mm
Nominal outer diameter: 13.4 mm
Number of cores: 4
Maximum weight: 556.2 g/m
Nominal weight: 540.23 g/m
Maximum DC resistance at 20°C: 1.63 Ohm/100m

Datasheet PDF

DRD 8 090

Product ref. EN 2267-009D 090P (DRD 8)

Core identification: Red, Blue, Yellow, Green
Maximum outer diameter: 10.56 mm
Nominal outer diameter: 10.38 mm
Number of cores: 4
Maximum weight: 370.8 g/m
Nominal weight: 358.26 g/m
Maximum DC resistance at 20°C: 2.37 Ohm/100m

Datasheet PDF

Description

Standards

Product

EN 2267-009
Test

prEN 3475

DESIGN CONSTRUCTION

CORES
2, 3 or 4 cores EN2267-009A

IDENTIFICATION

Colours of cores	: See table in this datasheet
Colours of marking	: White for red and green core, green for blue and yellow cores
Marking	: EN DRA ** FR F ++
	DRA = short designation
	** = AWG
	FR = Country of origin (FR = France)
	F = Manufacturer (F = Lynxeo)
	++ = Year of production (i.e. 14 = 2014)

ELECTRICAL AND HIGH FREQUENCY PERFORMANCES

Voltage rating : 600 Volts RMS at sea level,

Usual Aerospace application are using 115 volts (Phase to neutral)

And 200 Volts (Phase to phase) 400 Hz AC or 29 Volts DC.

Maximum operating frequency: 2000Hz

Characteristics

Construction characteristics

Colour

Electrical characteristics

Maximal operating frequency

0.002 MHz

Usage characteristics

Flame retardant

FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)

Oil resistance

Very good resistance to aircraft fluids

Arc tracking resistant

Yes

RoHS compliant

Yes

Operating temperature, range

-55 ... 260 °C

EN 2267-009 DRB, DRC, DRD

Products

Description

Description

Standards

DESIGN CONSTRUCTION

IDENTIFICATION

ELECTRICAL AND HIGH FREQUENCY PERFORMANCES

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Electrical characteristics

Electrical characteristics

Usage characteristics

Usage characteristics

Resources

Resources

Contact us

Topics on which you wish to get more informations:

Thank you!

Error

Contact us

Thank you!

Error

Impossible de trouver le produit correspondant
