EN 2714-014 MMD, MME, MMF, MMG, MMH, MMJ, MMK, MML
EN 2714-014 MMD, MME, MMF, MMG, MMH, MMJ, MMK, MML
Designed for general Purpose Aircraft Wiring Applications.
260°C, Screened and Jacketed,
Light Weight,
UV cable,
Arc Tracking Resistant
Description
Description
Standards
-
ProductEN 2267-009; EN 2714-014

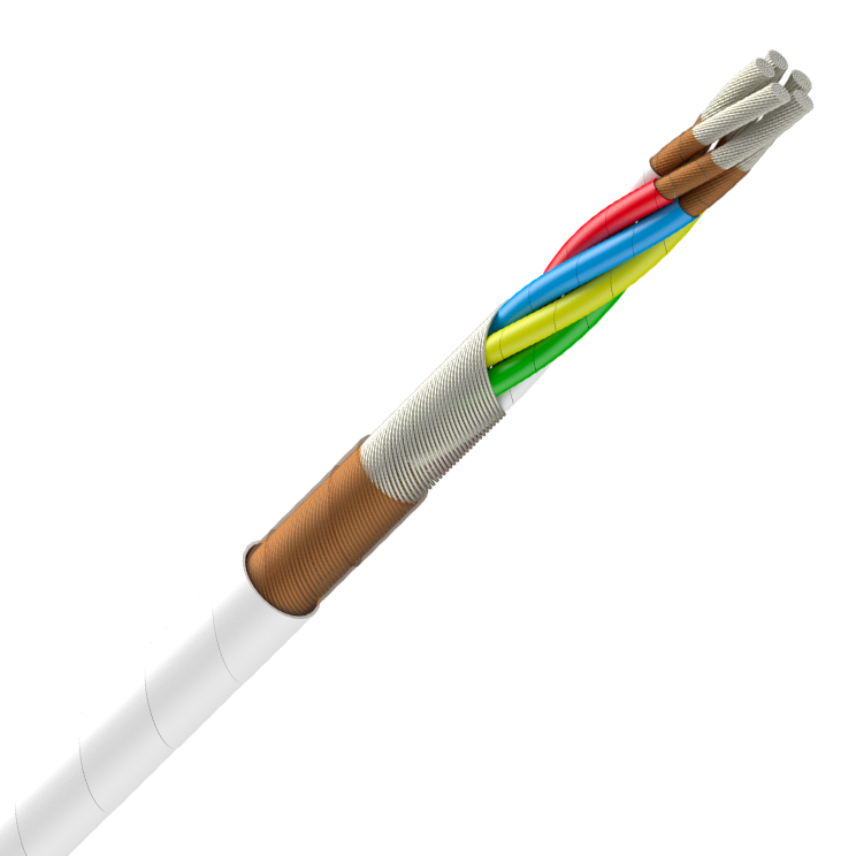

DESIGN CONSTRUCTION
CORES
EN 2267-009A
Polyimide tape
SCREEN
Nickel plated copper braid
JACKET
Polyimide tape
UV PTFE tape
ELECTRICAL AND HIGH FREQUENCY PERFORMANCES
Voltage rating : 600 Volts RMS at sea level,
Usual Aerospace application are using 115 volts (Phase to neutral)
And 200 Volts (Phase to phase) 400 Hz AC or 29 Volts DC.
Maximum operating frequency: 2000Hz
Identification
| Short Designation | |
| 4 cores | : MMD |
| 5 cores | : MME |
| 6 cores | : MMF |
| 7 cores | : MMG |
| 8 cores | : MMH |
| 9 cores | : MMJ |
| 10 cores | : MMK |
| 11 cores | : MML |
| Cores | |
| Colours | : See table on this datasheet |
| Marking | : EN DR A ++ FRF** |
| Colour of marking | : White for Black / Red / Brown / Green and Violet core |
| Green for Blue / Yellow / White / Orange / Grey and Light green core | |
| Jacket | |
| Colours | : See table on this datasheet |
| Marking | : EN xxx ++ FRF** |
| Colour of marking | : Green |
| xxx = Short designation (MMD, MME, ...) | |
| ++ = AWG | |
| FR = Country Origin (FR = France) | |
| F = Manufacturer (F = NEXANS) | |
| ** = Year of manufacturing (ie. 19 = 2019) |
Characteristics
Characteristics
Electrical characteristics
Electrical characteristics
Maximal operating frequency
0.002 MHz
Usage characteristics
Usage characteristics
Operating temperature, range
-55 ... 260 °C
Flame retardant
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
Oil resistance
Very good resistance to aircraft fluids
Arc tracking resistant
Yes
