BMS 13-55 Type 2 Class 1
BMS 13-55 Type 2 Class 1
High Temperature and Fire resistant Aero-Engines Wires.
Heavy-duty applications in aero-engines and high temerature areas.
Description
Description
Standards
-
ProductBMS 13-55

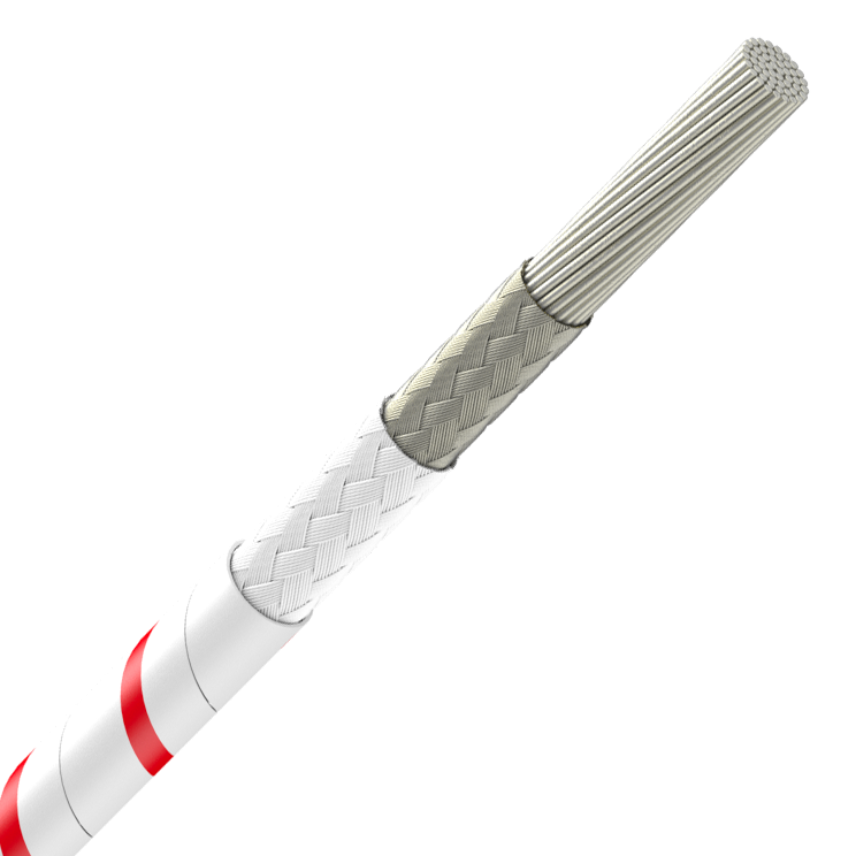

CORE
Mad up with Nickel
Clad high strength copper alloy strands
INSULATION
Impregnated inorganic fiber
TFE coated glass braid
PTFE tapes (fused)
Characteristics
Characteristics
Electrical characteristics
Electrical characteristics
Operating voltage
600 V
Maximal operating frequency
0.002 MHz
Usage characteristics
Usage characteristics
Operating temperature, range
-65 ... 260 °C
Fire resistant
-
Flame retardant
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
Oil resistance
Very good resistance to aircraft fluids
