9310-N**CA**BL
9310-N**CA**BL

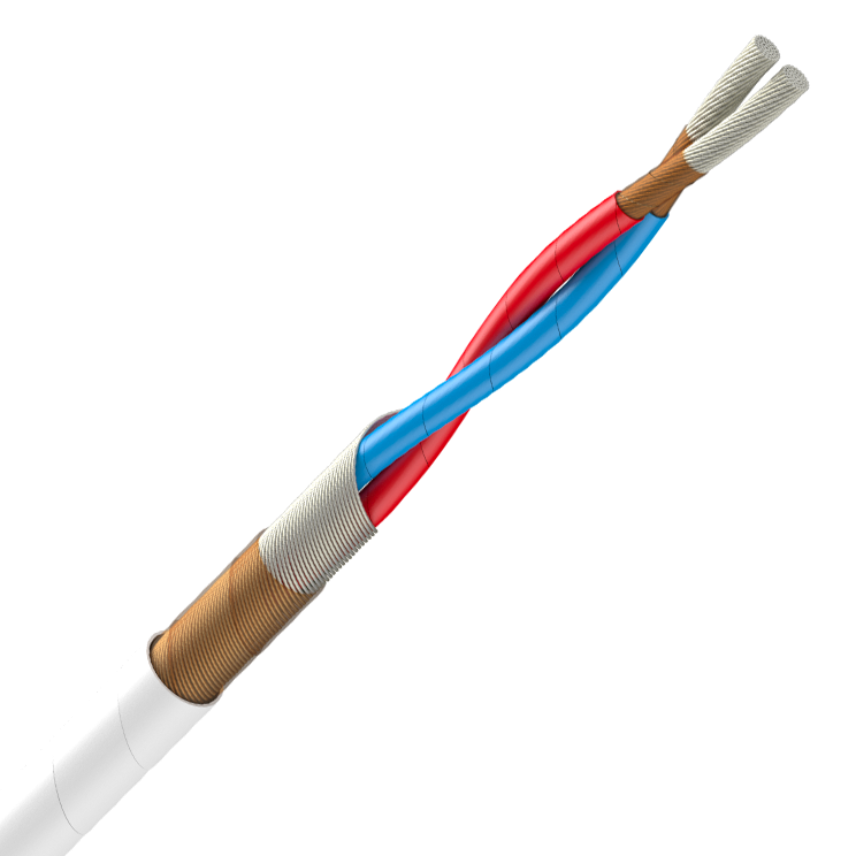

Wire and Jacketed Shielded Cable.
Aero engine and high temperature application.
Description
Description
Standards
-
Product448-010-3-10
CONDUCTOR
AWG 24, 19 x 0.127 mm
(S = 0.24 mm²)
AWG 22, 19 x 0.16 mm
(S = 0.38 mm²)
Nickel coated high strength copper alloy
INSULATION
Polyimide tape
PTFE tape
SHIELD
Nickel plated copper spiral screen
JACKET
Polyimide Tape
PTFE Tape
Characteristics
Characteristics
Electrical characteristics
Electrical characteristics
Operating voltage
600 V
Maximal operating frequency
0.002 MHz
Usage characteristics
Usage characteristics
Operating temperature, range
-65 ... 260 °C
Flame retardant
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
Oil resistance
Very good resistance to aircraft fluids
Resources
Resources
Selling & delivery Information
Colour of cores : White - Red - Blue - Yellow - Green
Colour Jacket : Green for AWG 22
: White for AWG 24
Colour of marking : Green
Marking text : " 9310-N££CA**## F0241 ++++ "
££ = Number of Cores
** = AWG
(++++) = Year of manufacturing
## = BL (Spiral screen), ( ) Single wire
