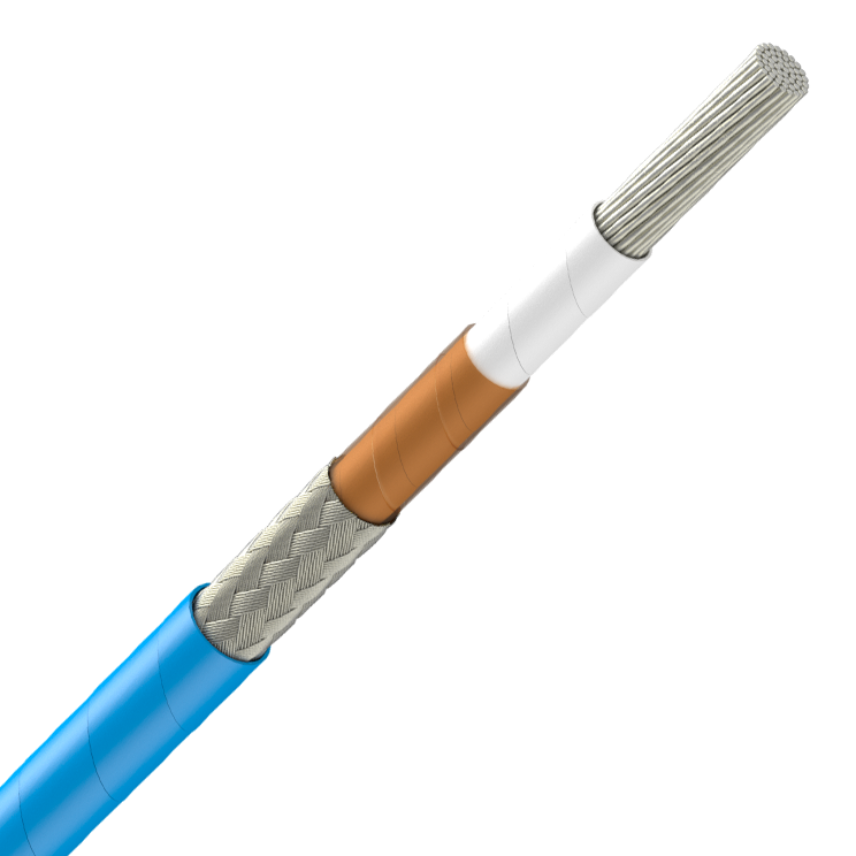

TYPE 2103
TYPE 2103
Flexible Cables for High Ambient Temperatures
Designed for general purpose aircraft wiring applications.
Description
Description
Standards
-
ProductAIR 4524; MIL-W-22759 B
CONDUCTOR
Stranded Nickel plated copper
or Nickel plated copper alloy for 0.21 mm² cross section size (alloy providing a high mechanical resistance)
Thin PTFE layer
INSULATION
Polyimide insulation
Protective Insulation
- PTFE + glass fiber tape coated with PTFE,
- Wrapped PTFE finish sheath
Specifications
AIR 4524 Specification - Category 250/280°C
NF.L 52-125B - High temperature cable.
These cables are appoved by the Air Ministry under letters :
- N°34672 STA/EQ/E3 dated 25 May 1977.
- N°34672 STA/EQ/E3 dated 22 December 1977.
Registered at the B.N.Aé : N°6418 404 A.
Characteristics
Characteristics
Electrical characteristics
Electrical characteristics
Mechanical characteristics
Mechanical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Selling & delivery Information
Color coding : According to AIR 0107 (10/1961).
Other color codings on request (stripes or printed identification).
