STUDY 124762 - ESW 1404-022-006
Description
Description
Standards
-
NationalESW 1404-022

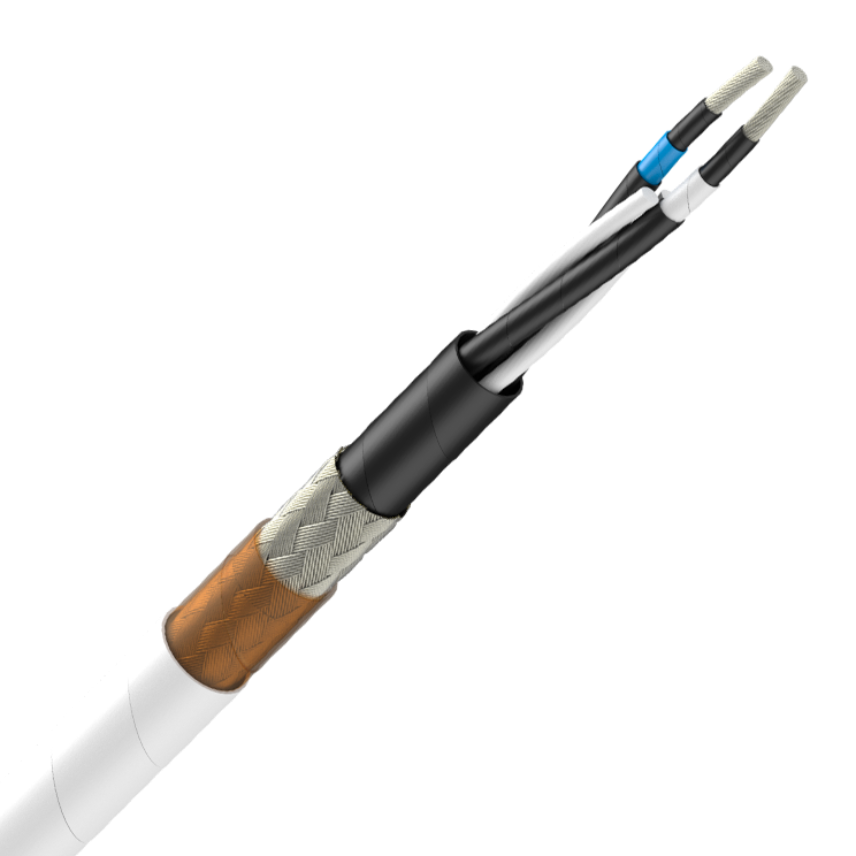

Construction
- 2 CORES
19x0.20 mm Nickel plated
copper Clad Steel
Semi-conductor tape
PTFE tape(s) insulation
∅ = 1.80 ±0.10 mm
Semi-conductor tape
∅ nom. = 1.95 mm
- GLASS FIBER FILLERS
- SEMI-CONDUCTOR TAPE
- SHIELD
Nickel plated copper 12/100
Coverage factor > 85%
- JACKET
Polyimide tape(s)
PTFE tape(s)
∅ Min. = 4.50 mm
∅ Max. = 4.80 mm
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Core identification
White, Blue
Sheath colour
White
Dimensional characteristics
Dimensional characteristics
Maximum weight
53 g/m
Electrical characteristics
Electrical characteristics
Operating voltage
600 V
Nominal capacitance between cores and shield
310 pF/m
Capacitance unbalance max.
15.0 pF
Minimum insulation resistance
1000 MOhm.km
Triboelectrical noise at 3 Hz
Displacement 10 mm pk-pk : ≤ 0.3 pC
Triboelectrical noise from 5 to 50 Hz
Displacement 5 mm pk-pk : ≤ 0.3 pC
Triboelectrical noise From 50 to 120 Hz
Displacement 2.5 mm pk-pk : ≤ 0.3 pC
Usage characteristics
Usage characteristics
Operating temperature, range
-65 ... 260 °C
Electro magnetic interference resistance
Yes
Flame retardant
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
Oil resistance
Very good resistance to aircraft fluids
Resources
Resources
Documentation
Selling & delivery Information
IDENTIFICATION
Color of Cores : White, Blue
Color of Jacket : White
MARKING
ESW1404-022-006-FX-FF-** 957.37.20.6999
With :
** = Year of manufacturing (ie. 14 = 2014)
