STUDY 86891 - NSA 935 306 YK
Description
Description
Standards
-
InternationalNSA 935306 YK

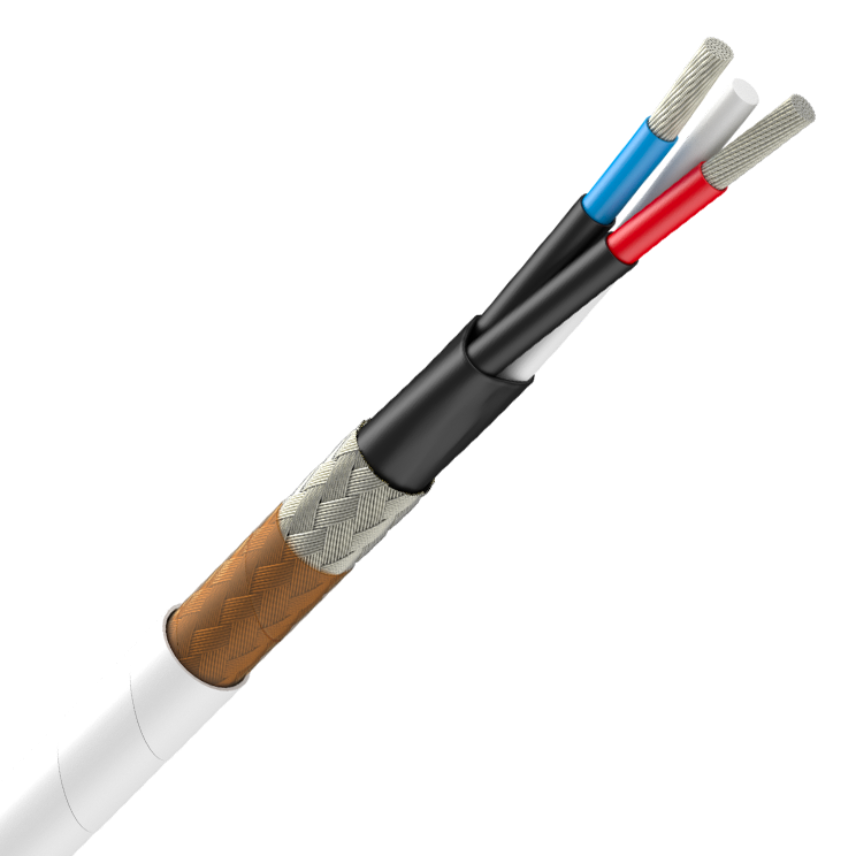

Construction
- 2 CORES
19 x 0.17 mm
Silver plated copper clad steel
Insulation :
Extrusion PTFE 1.40 ± 0.05 mm
Semi-conductor tape
∅ nom. = 1.58 mm
- GLASS FIBER FILLERS
- SEMI-CONDUCTOR TAPE
- SHIELD
Nickel plated copper
Kr>70%
∅ = 0.12 mm
- JACKET
Polyimide tape(s)
PTFE tape(s)
∅ Max. = 4.35 mm
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Core identification
Red, Blue
Sheath colour
White
Electrical characteristics
Electrical characteristics
Operating voltage
600 V
Minimum insulation resistance
1000 MOhm.km
Nominal capacitance between cores
100 pF/m
Nominal capacitance between cores and shield
200 pF/m
Triboelectrical noise at 2 Hz
Displacement 40 mm pk-pk ≤10 pC
Triboelectrical noise from 5 to 50 Hz
Displacement 5 mm pk-pk ≤1 pC
Triboelectrical noise from 10 to 70 Hz
Displacement 2 mm pk-pk ≤0.15 pC
Usage characteristics
Usage characteristics
Operating temperature, range
-55 ... 260 °C
Electro magnetic interference resistance
Yes
Flame retardant
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
Oil resistance
Very good resistance to aircraft fluids
Resources
Resources
Documentation
Selling & delivery Information
IDENTIFICATION
Color of core : Red, Blue
Color of Jacket : White
