FLAMEX® EN 50306-3 & -4
FLAMEX® EN 50306-3 & -4

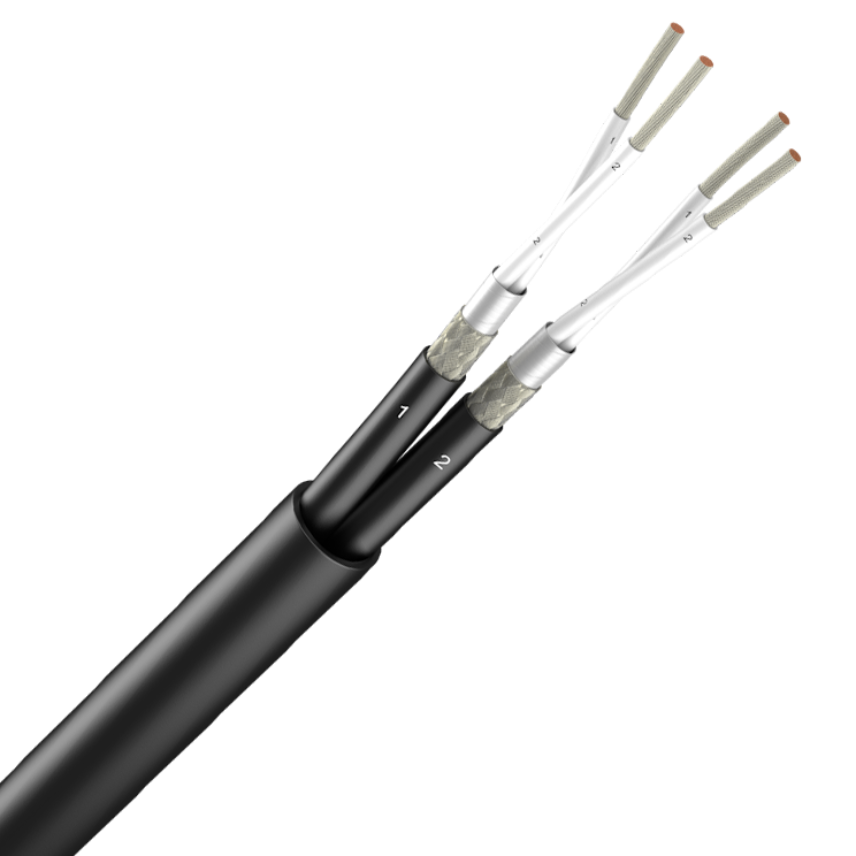

FLAMEX
MULTICORES CONTROL CABLES
Strictly halogen free, FLAMEX EN 50306-3 & -4 control cables combine the advantages of small size, lightweight, high chemical resistance, high mechanical properties. They are recommended for installation in railway vehicles (locomotives, trains, trolleybusses...).
FLAMEX 20 EN 50306-3 1 x 0.50 MM - S
Product ref. 10122694 - Country ref. 2PH184
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 2.3 mm
- Approximate weight: 14 kg/km
- Number of cores: 1
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-3 1 x 0.75 MM - S
Product ref. 10162996 - Country ref. 2PH185
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 2.5 mm
- Approximate weight: 17 kg/km
- Number of cores: 1
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-3 1 x 1.00 MM - S
Product ref. 10102327 - Country ref. 2PH186
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 2.7 mm
- Approximate weight: 20 kg/km
- Number of cores: 1
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-3 1 x 1.50 MM - S
Product ref. 10102330 - Country ref. 2PH187
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 3.1 mm
- Approximate weight: 28 kg/km
- Number of cores: 1
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-3 1 x 2.50 MM - S
Product ref. 10116479 - Country ref. 2PH188
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 3.6 mm
- Approximate weight: 43 kg/km
- Number of cores: 1
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-3 2 x 0.50 MM - S
Product ref. 10102326 - Country ref. 2PG960
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 3.5 mm
- Approximate weight: 25 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-3 2 x 0.75 MM - S
Product ref. 10128029 - Country ref. 2PG961
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 3.9 mm
- Approximate weight: 31 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-3 2 x 1.00 MM - S
Product ref. 10103735 - Country ref. 2PG962
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 4.2 mm
- Approximate weight: 37 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-3 2 x 1.50 MM - S
Product ref. 10102331 - Country ref. 2PF780
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 5.1 mm
- Approximate weight: 55 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-3 2 x 2.50 MM - S
Product ref. 10128033 - Country ref. 2PH193
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 6.4 mm
- Approximate weight: 87 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-3 3 x 0.50 MM - S
Product ref. 10103310 - Country ref. 2PG963
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 3.7 mm
- Approximate weight: 33 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-3 3 x 0.75 MM - S
Product ref. 10128030 - Country ref. 2PG964
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 4.0 mm
- Approximate weight: 43 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-3 3 x 1.00 MM - S
Product ref. 10102328 - Country ref. 2PG965
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 4.5 mm
- Approximate weight: 52 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-3 3 x 1.50 MM - S
Product ref. 10132982 - Country ref. 2PH191
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 5.4 mm
- Approximate weight: 75 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-3 3 x 2.50 MM - S
Product ref. 10163917 - Country ref. 2PH194
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 6.8 mm
- Approximate weight: 124 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-3 4 x 0.50 MM - S
Product ref. 10119424 - Country ref. 2PH189
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 4.0 mm
- Approximate weight: 43 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-3 4 x 0.75 MM - S
Product ref. 10132981 - Country ref. 2PH190
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 4.5 mm
- Approximate weight: 56 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-3 4 x 1.00 MM - S
Product ref. 10102329 - Country ref. 2PG966
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 5.0 mm
- Approximate weight: 65 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-3 4 x 1.50 MM - S
Product ref. 10183275 - Country ref. 2PH192
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 6.0 mm
- Approximate weight: 100 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-3 4 x 2.50 MM - S
Product ref. 10122695 - Country ref. 2PH195
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 7.5 mm
- Approximate weight: 158 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-3 6x0.50 MM
Product ref. 10128047 - Country ref. 2PI378
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 5.5 mm
- Approximate weight: 75 kg/km
- Number of cores: 6
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-3 6x0.75 MM
Product ref. 10215561 - Country ref. 2PJ942
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 6.1 mm
- Approximate weight: 92 kg/km
- Number of cores: 6
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-3 6x1.00 MM
Product ref. 10276650 - Country ref. 2PM688
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 6.3 mm
- Approximate weight: 104 kg/km
- Number of cores: 6
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-3 6x1.50 MM
Product ref. 10216384 - Country ref. 2PK766
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 7.3 mm
- Approximate weight: 154 kg/km
- Number of cores: 6
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-3 8x0.50 MM
Product ref. 10283179 - Country ref. 2PI811
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 6.1 mm
- Approximate weight: 88 kg/km
- Number of cores: 8
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-3 8x0.75 MM
Product ref. 13117903 - Country ref. 2PI361
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 7.3 mm
- Approximate weight: 119 kg/km
- Number of cores: 8
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-3 8x1.00 MM
Product ref. 13114949 - Country ref. 2PM706
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 7.5 mm
- Approximate weight: 125 kg/km
- Number of cores: 8
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-3 8x1.50 MM
Product ref. 13109212 - Country ref. 2PM156
- Packaging: Spool (1000m)
- Type of cable: EN 50306-3
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 8.5 mm
- Approximate weight: 215 kg/km
- Number of cores: 8
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 13 x 0.50 - MM
Product ref. 13117705 - Country ref. 2PH320
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 8.3 mm
- Approximate weight: 132 kg/km
- Number of cores: 13
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 19 x 0.50 - MM
Product ref. 10243693 - Country ref. 2PH321
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 9.0 mm
- Approximate weight: 172 kg/km
- Number of cores: 19
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 2 x 0.50 - MM
Product ref. 10262522 - Country ref. 2PH316
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 4.9 mm
- Approximate weight: 40 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 3 x 0.50 - MM
Product ref. 10282478 - Country ref. 2PH317
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 5.1 mm
- Approximate weight: 48 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 37 x 0.50 - MM
Product ref. - Country ref. 2PH322
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 12.3 mm
- Approximate weight: 311 kg/km
- Number of cores: 37
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 4 x 0.50 - MM
Product ref. 10137780 - Country ref. 2PH318
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 5.5 mm
- Approximate weight: 56 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 7 x 0.50 - MM
Product ref. 10223454 - Country ref. 2PH319
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 6.3 mm
- Approximate weight: 80 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 13 x 0.75 - MM
Product ref. - Country ref. 2PH327
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 9.1 mm
- Approximate weight: 173 kg/km
- Number of cores: 13
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 13 x 1.00 - MM
Product ref. 10196679 - Country ref. 2PG969
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 9.7 mm
- Approximate weight: 200 kg/km
- Number of cores: 13
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 13 x 1.50 - MM
Product ref. 10179943 - Country ref. 2PG973
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 11.7 mm
- Approximate weight: 297 kg/km
- Number of cores: 13
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 13 x 2.50 - MM
Product ref. 10284566 - Country ref. 2PH339
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 13.3 mm
- Approximate weight: 454 kg/km
- Number of cores: 13
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 19 x 0.75 - MM
Product ref. - Country ref. 2PH328
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 10.0 mm
- Approximate weight: 229 kg/km
- Number of cores: 19
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 19 x 1.00 - MM
Product ref. 10225486 - Country ref. 2PG970
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 10.7 mm
- Approximate weight: 263 kg/km
- Number of cores: 19
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 19 x 1.50 - MM
Product ref. 10209627 - Country ref. 2PG429
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 13.0 mm
- Approximate weight: 405 kg/km
- Number of cores: 19
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 2 x 0.75 - MM
Product ref. 10133066 - Country ref. 2PH323
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 5.3 mm
- Approximate weight: 48 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 2 x 1.00 - MM
Product ref. 10174879 - Country ref. 2PH331
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 5.6 mm
- Approximate weight: 53 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 2 x 1.50 - MM
Product ref. 10242493 - Country ref. 2PH334
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 6.3 mm
- Approximate weight: 70 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 2 x 2.50 - MM
Product ref. 10275799 - Country ref. 2PH336
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 7.7 mm
- Approximate weight: 105 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 3 x 0.75 - MM
Product ref. 10273652 - Country ref. 2PH324
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 5.5 mm
- Approximate weight: 58 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 3 x 1.00 - MM
Product ref. 10147700 - Country ref. 2PH332
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 5.9 mm
- Approximate weight: 65 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 3 x 1.50 - MM
Product ref. 10223439 - Country ref. 2PH335
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 6.6 mm
- Approximate weight: 89 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 3 x 2.50 - MM
Product ref. 10283555 - Country ref. 2PH337
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 8.1 mm
- Approximate weight: 136 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 37 x 0.75 - MM
Product ref. - Country ref. 2PH329
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 13.2 mm
- Approximate weight: 409 kg/km
- Number of cores: 37
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 37 x 1.00 - MM
Product ref. 10184734 - Country ref. 2PH333
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 14.0 mm
- Approximate weight: 473 kg/km
- Number of cores: 37
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 37 x 1.50 - MM
Product ref. 10122698 - Country ref. 2PG971
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 17.2 mm
- Approximate weight: 734 kg/km
- Number of cores: 37
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 4 x 0.75 - MM
Product ref. 10214826 - Country ref. 2PH325
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 6.0 mm
- Approximate weight: 69 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 4 x 1.00 - MM
Product ref. 10145456 - Country ref. 2PG967
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 6.3 mm
- Approximate weight: 79 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 4 x 1.50 - MM
Product ref. 10197106 - Country ref. 2PG972
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 7.4 mm
- Approximate weight: 110 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 4 x 2.50 - MM
Product ref. 10282479 - Country ref. 2PG974
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 8.8 mm
- Approximate weight: 170 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 48 x 0.75 - MM
Product ref. - Country ref. 2PH330
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 14.8 mm
- Approximate weight: 518 kg/km
- Number of cores: 48
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 7 x 0.75 - MM
Product ref. 10147701 - Country ref. 2PH326
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 6.9 mm
- Approximate weight: 102 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 7 x 1.00 - MM
Product ref. 10147814 - Country ref. 2PG968
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 7.3 mm
- Approximate weight: 118 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 7 x 1.50 - MM
Product ref. 10197107 - Country ref. 2PG428
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 8.6 mm
- Approximate weight: 170 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1E 7 x 2.50 - MM
Product ref. 10214886 - Country ref. 2PH338
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1E
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 9.7 mm
- Approximate weight: 257 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 13 x 0.50 - MM
Product ref. 10230969 - Country ref. 2PH307
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 7.3 mm
- Approximate weight: 113 kg/km
- Number of cores: 13
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 19 x 0.50 - MM
Product ref. - Country ref. 2PH308
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 8.1 mm
- Approximate weight: 151 kg/km
- Number of cores: 19
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 2 x 0.50 - MM
Product ref. 10122742 - Country ref. 2PH304
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 3.5 mm
- Approximate weight: 24 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 3 x 0.50 - MM
Product ref. 10181977 - Country ref. 2PH305
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 3.8 mm
- Approximate weight: 30 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 37 x 0.50 - MM
Product ref. 10230981 - Country ref. 2PH309
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 10.8 mm
- Approximate weight: 273 kg/km
- Number of cores: 37
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 4 x 0.50 - MM
Product ref. 10122696 - Country ref. 2PG693
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 4.1 mm
- Approximate weight: 37 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 7 x 0.50 - MM
Product ref. 10206315 - Country ref. 2PH306
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 4.9 mm
- Approximate weight: 59 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 13 x 0.75 - MM
Product ref. 10174874 - Country ref. 2PH311
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 8.2 mm
- Approximate weight: 152 kg/km
- Number of cores: 13
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 13 x 1.00 - MM
Product ref. 10205984 - Country ref. 2PG701
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 8.7 mm
- Approximate weight: 175 kg/km
- Number of cores: 13
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 13 x 1.50 - MM
Product ref. - Country ref. 2PG707
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 10.7 mm
- Approximate weight: 270 kg/km
- Number of cores: 13
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 13 x 2.50 - MM
Product ref. 10238395 - Country ref. 2PG714
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 12.9 mm
- Approximate weight: 435 kg/km
- Number of cores: 13
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 19 x 0.75 - MM
Product ref. - Country ref. 2PH312
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 9.0 mm
- Approximate weight: 205 kg/km
- Number of cores: 19
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 19 x 1.00 - MM
Product ref. 10122697 - Country ref. 2PG702
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 9.8 mm
- Approximate weight: 244 kg/km
- Number of cores: 19
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 19 x 1.50 - MM
Product ref. 10284651 - Country ref. 2PG708
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 12.0 mm
- Approximate weight: 378 kg/km
- Number of cores: 19
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 2 x 0.75 - MM
Product ref. 10122955 - Country ref. 2PG694
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 4.0 mm
- Approximate weight: 30 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 2 x 1.00 - MM
Product ref. 10098365 - Country ref. 2PG697
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 4.3 mm
- Approximate weight: 35 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 2 x 1.50 - MM
Product ref. 10102324 - Country ref. 2PG703
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 5.0 mm
- Approximate weight: 49 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 2 x 2.50 - MM
Product ref. 10122928 - Country ref. 2PG710
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 6.7 mm
- Approximate weight: 86 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 3 x 0.75 - MM
Product ref. 10122956 - Country ref. 2PG695
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 4.2 mm
- Approximate weight: 40 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 3 x 1.00 - MM
Product ref. 10189566 - Country ref. 2PG698
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 4.6 mm
- Approximate weight: 46 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 3 x 1.50 - MM
Product ref. 10122958 - Country ref. 2PG704
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 5.3 mm
- Approximate weight: 67 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 3 x 2.50 - MM
Product ref. 10140697 - Country ref. 2PG711
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 7.1 mm
- Approximate weight: 125 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 37 x 0.75 - MM
Product ref. - Country ref. 2PH313
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 12.2 mm
- Approximate weight: 376 kg/km
- Number of cores: 37
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 37 x 1.00 - MM
Product ref. - Country ref. 2PH315
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 13.3 mm
- Approximate weight: 441 kg/km
- Number of cores: 37
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 37 x 1.50 - MM
Product ref. 10230882 - Country ref. 2PG709
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 16.2 mm
- Approximate weight: 715 kg/km
- Number of cores: 37
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 4 x 0.75 - MM
Product ref. 10122957 - Country ref. 2PG696
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 4.6 mm
- Approximate weight: 50 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 4 x 1.00 - MM
Product ref. 10190806 - Country ref. 2PG699
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 4.9 mm
- Approximate weight: 58 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 4 x 1.50 - MM
Product ref. 10102325 - Country ref. 2PG705
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 6.0 mm
- Approximate weight: 85 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 4 x 2.50 - MM
Product ref. 10275124 - Country ref. 2PG712
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 7.9 mm
- Approximate weight: 150 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 48 x 0.75 - MM
Product ref. - Country ref. 2PH314
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 13.9 mm
- Approximate weight: 480 kg/km
- Number of cores: 48
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 7 x 0.75 - MM
Product ref. 10141411 - Country ref. 2PH310
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 5.5 mm
- Approximate weight: 79 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 7 x 1.00 - MM
Product ref. 10140695 - Country ref. 2PG700
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 6.0 mm
- Approximate weight: 93 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 7 x 1.50 - MM
Product ref. 10235009 - Country ref. 2PG706
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 7.7 mm
- Approximate weight: 149 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 1P 7 x 2.50 - MM
Product ref. - Country ref. 2PG713
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 1P
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 8.6 mm
- Approximate weight: 230 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 3E 2 x 0.50 MM - S
Product ref. 10124282 - Country ref. 2PG843
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 5.5 mm
- Approximate weight: 50 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 2 x 0.75 MM - S
Product ref. 10136915 - Country ref. 2PG848
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 5.9 mm
- Approximate weight: 59 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 2 x 1.00 MM - S
Product ref. 10136329 - Country ref. 2PG426
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 6.2 mm
- Approximate weight: 65 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 2 x 1.50 MM - S
Product ref. 10136919 - Country ref. 2PG855
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 7.1 mm
- Approximate weight: 86 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 2 x 2.50 MM - S
Product ref. 10133833 - Country ref. 2PG859
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 8.3 mm
- Approximate weight: 124 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 3 x 0.50 MM - S
Product ref. 10145847 - Country ref. 2PG844
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 5.7 mm
- Approximate weight: 59 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 3 x 0.75 MM - S
Product ref. 10174880 - Country ref. 2PG849
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 6.2 mm
- Approximate weight: 70 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 3 x 1.00 MM - S
Product ref. 10145457 - Country ref. 2PG852
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 6.5 mm
- Approximate weight: 81 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 3 x 1.50 MM - S
Product ref. 10140269 - Country ref. 2PG856
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 7.4 mm
- Approximate weight: 107 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 3 x 2.50 MM - S
Product ref. 10272596 - Country ref. 2PH342
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 8.6 mm
- Approximate weight: 156 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 4 x 0.50 MM - S
Product ref. 10136914 - Country ref. 2PG845
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 6.1 mm
- Approximate weight: 70 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 4 x 0.75 MM - S
Product ref. 10136916 - Country ref. 2PG850
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 6.5 mm
- Approximate weight: 86 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 4 x 1.00 MM - S
Product ref. 10136917 - Country ref. 2PG427
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 6.9 mm
- Approximate weight: 95 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 4 x 1.50 MM - S
Product ref. 10136920 - Country ref. 2PG857
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 8.0 mm
- Approximate weight: 135 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 4 x 2.50 MM - S
Product ref. 10140694 - Country ref. 2PG860
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 9.4 mm
- Approximate weight: 198 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 6 x 0.50 MM - S
Product ref. 10219884 - Country ref. 2PG846
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 6.9 mm
- Approximate weight: 94 kg/km
- Number of cores: 6
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 6 x 0.75 MM - S
Product ref. 10252450 - Country ref. 2PH340
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 7.5 mm
- Approximate weight: 115 kg/km
- Number of cores: 6
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 6 x 1.00 MM - S
Product ref. 10193794 - Country ref. 2PG853
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 8.0 mm
- Approximate weight: 140 kg/km
- Number of cores: 6
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 6 x 1.50 MM - S
Product ref. 10211904 - Country ref. 2PG858
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 9.2 mm
- Approximate weight: 190 kg/km
- Number of cores: 6
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 8 x 0.50 MM - S
Product ref. 10145848 - Country ref. 2PG847
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 7.5 mm
- Approximate weight: 110 kg/km
- Number of cores: 8
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 8 x 0.75 MM - S
Product ref. 10209999 - Country ref. 2PG851
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 8.2 mm
- Approximate weight: 143 kg/km
- Number of cores: 8
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 8 x 1.00 MM - S
Product ref. 13117337 - Country ref. 2PG854
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 8.6 mm
- Approximate weight: 165 kg/km
- Number of cores: 8
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3E 8 x 1.50 MM - S
Product ref. 10122700 - Country ref. 2PH341
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3E
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 10.2 mm
- Approximate weight: 226 kg/km
- Number of cores: 8
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 12 x 0.75 MM - S
Product ref. 10100639 - Country ref. 2PH024
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 8.5 mm
- Approximate weight: 165 kg/km
- Number of cores: 12
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 12 x 1.50 MM - S
Product ref. 10101869 - Country ref. 2PH180
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 10.6 mm
- Approximate weight: 280 kg/km
- Number of cores: 12
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 2 x 0.50 MM - S
Product ref. 10100553 - Country ref. 2PG715
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 4.1 mm
- Approximate weight: 32 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 2 x 0.75 MM - S
Product ref. 10100703 - Country ref. 2PG719
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 4.5 mm
- Approximate weight: 39 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 2 x 1.00 MM - S
Product ref. 10097829 - Country ref. 2PG414
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 4.7 mm
- Approximate weight: 44 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 2 x 1.50 MM - S
Product ref. 10101868 - Country ref. 2PG727
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 5.7 mm
- Approximate weight: 64 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 2 x 2.50 MM - S
Product ref. 10140270 - Country ref. 2PG732
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 7.3 mm
- Approximate weight: 105 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 3 x 0.50 MM - S
Product ref. 10097828 - Country ref. 2PG716
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 4.3 mm
- Approximate weight: 40 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 3 x 0.75 MM - S
Product ref. 10118167 - Country ref. 2PG720
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 4.7 mm
- Approximate weight: 49 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 3 x 1.00 MM - S
Product ref. 10097830 - Country ref. 2PG415
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 5.1 mm
- Approximate weight: 59 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 3 x 1.50 MM - S
Product ref. 10147567 - Country ref. 2PG728
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 6.0 mm
- Approximate weight: 84 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 3 x 2.50 MM - S
Product ref. 10101870 - Country ref. 2PG733
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 7.7 mm
- Approximate weight: 140 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 4 x 0.50 MM - S
Product ref. 10107387 - Country ref. 2PG413
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 4.7 mm
- Approximate weight: 50 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 4 x 0.75 MM - S
Product ref. 10127311 - Country ref. 2PG721
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 5.2 mm
- Approximate weight: 64 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 4 x 1.00 MM - S
Product ref. 10097831 - Country ref. 2PG724
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 5.5 mm
- Approximate weight: 73 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 4 x 1.50 MM - S
Product ref. 10100640 - Country ref. 2PG729
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 6.6 mm
- Approximate weight: 108 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 4 x 2.50 MM - S
Product ref. 10125910 - Country ref. 2PG734
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 2.5 mm²
- Minimum outer diameter: 8.4 mm
- Approximate weight: 180 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 6 x 0.50 MM - S
Product ref. 10101866 - Country ref. 2PG717
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 5.5 mm
- Approximate weight: 70 kg/km
- Number of cores: 6
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 6 x 0.75 MM - S
Product ref. 10101867 - Country ref. 2PG722
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 6.1 mm
- Approximate weight: 90 kg/km
- Number of cores: 6
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 6 x 1.00 MM - S
Product ref. 10122699 - Country ref. 2PG725
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 6.6 mm
- Approximate weight: 111 kg/km
- Number of cores: 6
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 6 x 1.50 MM - S
Product ref. 10184926 - Country ref. 2PG730
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 8.3 mm
- Approximate weight: 167 kg/km
- Number of cores: 6
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 8 x 0.50 MM - S
Product ref. 10178560 - Country ref. 2PG718
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 6.0 mm
- Approximate weight: 84 kg/km
- Number of cores: 8
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 8 x 0.75 MM - S
Product ref. 10100638 - Country ref. 2PG723
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 6.6 mm
- Approximate weight: 112 kg/km
- Number of cores: 8
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 3P 8 x 1.50 MM - S
Product ref. 10126216 - Country ref. 2PG726
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 3P
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 7.7 mm
- Approximate weight: 139 kg/km
- Number of cores: 8
- Electro magnetic interference resistance: Yes
FLAMEX 20 EN 50306-4 5E 2 x 2 x0.50 MMM
Product ref. 10219623 - Country ref. 2PH343
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5E
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 10.1 mm
- Approximate weight: 138 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5E 2 x 2 x0.75 MMM
Product ref. 10211639 - Country ref. 2PH347
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 10.9 mm
- Approximate weight: 162 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5E 2 x 2 x1.00 MMM
Product ref. - Country ref. 2PH351
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5E
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 11.3 mm
- Approximate weight: 174 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5E 2 x 2 x1.50 MMM
Product ref. 10114565 - Country ref. 2PH355
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5E
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 13.3 mm
- Approximate weight: 246 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5E 3 x 2 x0.50 MMM
Product ref. 10191108 - Country ref. 2PH344
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5E
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 10.8 mm
- Approximate weight: 170 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5E 3 x 2 x0.75 MMM
Product ref. 10211640 - Country ref. 2PH348
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 11.6 mm
- Approximate weight: 201 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5E 3 x 2 x1.00 MMM
Product ref. 10196678 - Country ref. 2PH352
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5E
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 12.0 mm
- Approximate weight: 215 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5E 3 x 2 x1.50 MMM
Product ref. 10136921 - Country ref. 2PF781
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5E
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 14.0 mm
- Approximate weight: 300 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5E 4 x 2 x0.50 MMM
Product ref. 10136320 - Country ref. 2PH345
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5E
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 11.8 mm
- Approximate weight: 192 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5E 4 x 2 x0.75 MMM
Product ref. 10227465 - Country ref. 2PH349
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 12.8 mm
- Approximate weight: 231 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5E 4 x 2 x1.00 MMM
Product ref. 10225599 - Country ref. 2PH353
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5E
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 13.2 mm
- Approximate weight: 245 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5E 4 x 2 x1.50 MMM
Product ref. 10205948 - Country ref. 2PH356
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5E
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 15.5 mm
- Approximate weight: 349 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5E 7 x 2 x0.50 MMM
Product ref. 10227732 - Country ref. 2PH346
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5E
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 13.9 mm
- Approximate weight: 284 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5E 7 x 2 x0.75 MMM
Product ref. 10243638 - Country ref. 2PH350
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 15.1 mm
- Approximate weight: 346 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5E 7 x 2 x1.00 MMM
Product ref. 10184735 - Country ref. 2PH354
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5E
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 15.7 mm
- Approximate weight: 374 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5E 7 x 2 x1.50 MMM
Product ref. 10122702 - Country ref. 2PG975
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5E
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 18.7 mm
- Approximate weight: 550 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5P 2 x 2 x0.50 MMM
Product ref. 10122701 - Country ref. 2PH478
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5P
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 9.0 mm
- Approximate weight: 110 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5P 2 x 2 x0.75 MMM
Product ref. - Country ref. 2PH482
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 9.8 mm
- Approximate weight: 132 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5P 2 x 2 x1.00 MMM
Product ref. 10224480 - Country ref. 2PH486
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5P
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 10.2 mm
- Approximate weight: 142 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5P 2 x 2 x1.50 MMM
Product ref. 10114550 - Country ref. 2PH490
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5P
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 12.2 mm
- Approximate weight: 208 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5P 3 x 2 x0.50 MMM
Product ref. - Country ref. 2PH479
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5P
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 9.6 mm
- Approximate weight: 137 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5P 3 x 2 x0.75 MMM
Product ref. 10265119 - Country ref. 2PH483
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 10.5 mm
- Approximate weight: 169 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5P 3 x 2 x1.00 MMM
Product ref. - Country ref. 2PH487
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5P
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 10.9 mm
- Approximate weight: 183 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5P 3 x 2 x1.50 MMM
Product ref. 10224531 - Country ref. 2PH491
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5P
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 13.1 mm
- Approximate weight: 268 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5P 4 x 2 x0.50 MMM
Product ref. 10143433 - Country ref. 2PH480
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5P
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 10.7 mm
- Approximate weight: 159 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5P 4 x 2 x0.75 MMM
Product ref. - Country ref. 2PH484
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 11.6 mm
- Approximate weight: 192 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5P 4 x 2 x1.00 MMM
Product ref. 10224525 - Country ref. 2PH488
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5P
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 12.1 mm
- Approximate weight: 211 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5P 4 x 2 x1.50 MMM
Product ref. 10284650 - Country ref. 2PH492
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5P
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 14.3 mm
- Approximate weight: 305 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5P 7 x 2 x0.50 MMM
Product ref. - Country ref. 2PH481
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5P
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 13.0 mm
- Approximate weight: 251 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5P 7 x 2 x0.75 MMM
Product ref. - Country ref. 2PH485
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 14.0 mm
- Approximate weight: 303 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5P 7 x 2 x1.00 MMM
Product ref. - Country ref. 2PH489
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5P
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 14.6 mm
- Approximate weight: 353 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 5P 7 x 2 x1.50 MMM
Product ref. 10265734 - Country ref. 2PH493
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 5P
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 17.6 mm
- Approximate weight: 514 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7E 2 x 2 x0.50 MM - S
Product ref. 10257965 - Country ref. 2PG861
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7E
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 7.1 mm
- Approximate weight: 85 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7E 2 x 2 x0.75 MM - S
Product ref. 10276114 - Country ref. 2PG864
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 7.6 mm
- Approximate weight: 110 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7E 2 x 2 x1.00 MM - S
Product ref. 10281443 - Country ref. 2PG865
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7E
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 8.3 mm
- Approximate weight: 125 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7E 2 x 2 x1.50 MM - S
Product ref. 10136922 - Country ref. 2PH363
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7E
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 10.3 mm
- Approximate weight: 159 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7E 3 x 2 x0.50 MM - S
Product ref. 10272751 - Country ref. 2PG862
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7E
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 7.5 mm
- Approximate weight: 100 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7E 3 x 2 x0.75 MM - S
Product ref. 10284096 - Country ref. 2PH358
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 8.2 mm
- Approximate weight: 128 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7E 3 x 2 x1.00 MM - S
Product ref. 10224917 - Country ref. 2PG866
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7E
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 8.8 mm
- Approximate weight: 150 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7E 3 x 2 x1.50 MM - S
Product ref. - Country ref. 2PH364
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7E
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 11.0 mm
- Approximate weight: 196 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7E 4 x 2 x0.50 MM - S
Product ref. 10224287 - Country ref. 2PG863
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7E
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 8.3 mm
- Approximate weight: 125 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7E 4 x 2 x0.75 MM - S
Product ref. 10284097 - Country ref. 2PH359
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 9.5 mm
- Approximate weight: 155 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7E 4 x 2 x1.00 MM - S
Product ref. 10263459 - Country ref. 2PH361
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7E
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 9.6 mm
- Approximate weight: 176 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7E 4 x 2 x1.50 MM - S
Product ref. - Country ref. 2PH365
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7E
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 12.1 mm
- Approximate weight: 242 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7E 7 x 2 x0.50 MM - S
Product ref. - Country ref. 2PH357
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7E
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 9.6 mm
- Approximate weight: 177 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7E 7 x 2 x0.75 MM - S
Product ref. - Country ref. 2PH360
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7E
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 11.4 mm
- Approximate weight: 226 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7E 7 x 2 x1.00 MM - S
Product ref. 10181978 - Country ref. 2PH362
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7E
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 11.6 mm
- Approximate weight: 260 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7E 7 x 2 x1.50 MM - S
Product ref. 10271943 - Country ref. 2PH366
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7E
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 14.5 mm
- Approximate weight: 382 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7P 2 x 2 x0.50 MM - S
Product ref. 10101948 - Country ref. 2PG735
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7P
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 6.6 mm
- Approximate weight: 66 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7P 2 x 2 x0.75 MM - S
Product ref. 10122929 - Country ref. 2PG739
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 7.1 mm
- Approximate weight: 86 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7P 2 x 2 x1.00 MM - S
Product ref. 10105271 - Country ref. 2PG743
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7P
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 7.8 mm
- Approximate weight: 99 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7P 2 x 2 x1.50 MM - S
Product ref. 10181979 - Country ref. 2PG747
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7P
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 9.8 mm
- Approximate weight: 133 kg/km
- Number of cores: 2
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7P 3 x 2 x0.50 MM - S
Product ref. 10119418 - Country ref. 2PG736
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7P
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 7.0 mm
- Approximate weight: 79 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7P 3 x 2 x0.75 MM - S
Product ref. 10206626 - Country ref. 2PG740
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 7.7 mm
- Approximate weight: 105 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7P 3 x 2 x1.00 MM - S
Product ref. 10222378 - Country ref. 2PG744
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7P
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 8.3 mm
- Approximate weight: 130 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7P 3 x 2 x1.50 MM - S
Product ref. 10226002 - Country ref. 2PG748
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7P
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 10.4 mm
- Approximate weight: 170 kg/km
- Number of cores: 3
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7P 4 x 2 x0.50 MM - S
Product ref. 10101947 - Country ref. 2PG737
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7P
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 7.7 mm
- Approximate weight: 103 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7P 4 x 2 x0.75 MM - S
Product ref. 10206627 - Country ref. 2PG741
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 9.0 mm
- Approximate weight: 130 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7P 4 x 2 x1.00 MM - S
Product ref. 10101946 - Country ref. 2PG745
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7P
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 9.1 mm
- Approximate weight: 150 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7P 4 x 2 x1.50 MM - S
Product ref. - Country ref. 2PG749
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7P
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 11.6 mm
- Approximate weight: 218 kg/km
- Number of cores: 4
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7P 7 x 2 x0.50 MM - S
Product ref. 10230881 - Country ref. 2PG738
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7P
- Conductor cross-section: 0.5 mm²
- Minimum outer diameter: 9.0 mm
- Approximate weight: 152 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7P 7 x 2 x0.75 MM - S
Product ref. - Country ref. 2PG742
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7P
- Conductor cross-section: 0.75 mm²
- Minimum outer diameter: 10.8 mm
- Approximate weight: 202 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7P 7 x 2 x1.00 MM - S
Product ref. 10216546 - Country ref. 2PG746
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7P
- Conductor cross-section: 1 mm²
- Minimum outer diameter: 11.0 mm
- Approximate weight: 237 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
FLAMEX 20 EN 50306-4 7P 7 x 2 x1.50 MM - S
Product ref. - Country ref. 2PG750
- Packaging: Spool (1000m)
- Type of cable: EN 50306-4 7P
- Conductor cross-section: 1.5 mm²
- Minimum outer diameter: 14.0 mm
- Approximate weight: 365 kg/km
- Number of cores: 7
- Electro magnetic interference resistance: No
Description
Description
Standards
-
ProductEN 45545-2 (HL3); EN 50264-1
-
TestEN 50305; EN 50306
DESIGN
1. Conductor
Stranded tinned copper wires
Colour: white, numbered 1 to n
2. Insulation
Thin wall, cross-linked halogen free material acc. EN 50306-2
3. Screen (for screened versions)
Tinned copper braid with optional polyester tape
4. Outer sheath
Cross-linked halogen free material
Colour: black
Example of marking: FLAMEX 239 EN 50306-3 - 300 V - number of cores x cross-section - MM-S-90 - week/year batch number
GUIDE TO USE
- Cabling rules are given in EN 50343
- Permissible current carrying capacities: values and calculation method are given in EN 50343
- Bending radius
- Static use: 5 x outer diameter
- For installation and occasional movements: 10 x outer diameter
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor material
Tin plated copper
Conductor flexibility
Flexible stranded
Outer sheath
Cross-linked compound
Halogen free
EN 60754-1 & EN 60684-2
Electrical characteristics
Electrical characteristics
Rated Voltage Uo/U (Um)
300/500 V
Usage characteristics
Usage characteristics
Flame retardant
EN 60332-1-2
Fire retardant
EN IEC 60332-3-24 (cat C); EN IEC 60332-3-25 (EN50305)
Smoke density
EN/IEC 61034-2
Gases toxicity
EN 50305-9.2
Operating temperature, range
-40 ... 90 °C
Max. conductor temperature in service
90 °C
Overload maximum core temperature
120 °C
Chemical resistance
Excellent
