FLAMEX® MULTIFUNCTION VEHICLE BUS 120 Ω (MVB)
FLAMEX® MULTIFUNCTION VEHICLE BUS 120 Ω (MVB)
FLAMEX
COMMUNICATION CABLES
FLAMEX® MVB cables are intended for Train Communication Network. They connect individual nodes within a vehicle or closed train. FLAMEX® MVB cables designed to improve the protection against electrical disturbances, electromagnetic noises.
FLAMEX MVB 2 x 0,50²
Nexans ref. 10211790 - Country ref. 2PK596
- Packaging: Spool (1000m)
- Construction type: 2 x 0.50²
- Core identification: Black, White
- Approximate weight: 84 kg/km
- Minimum operating temperature: -25 °C
FLAMEX MVB 2 x 0,50²
Nexans ref. 10089966 - Country ref. 2PF580
- Packaging: Spool (1000m)
- Construction type: 2 x 0.50²
- Core identification: Black, White
- Approximate weight: 84 kg/km
- Minimum operating temperature: -40 °C

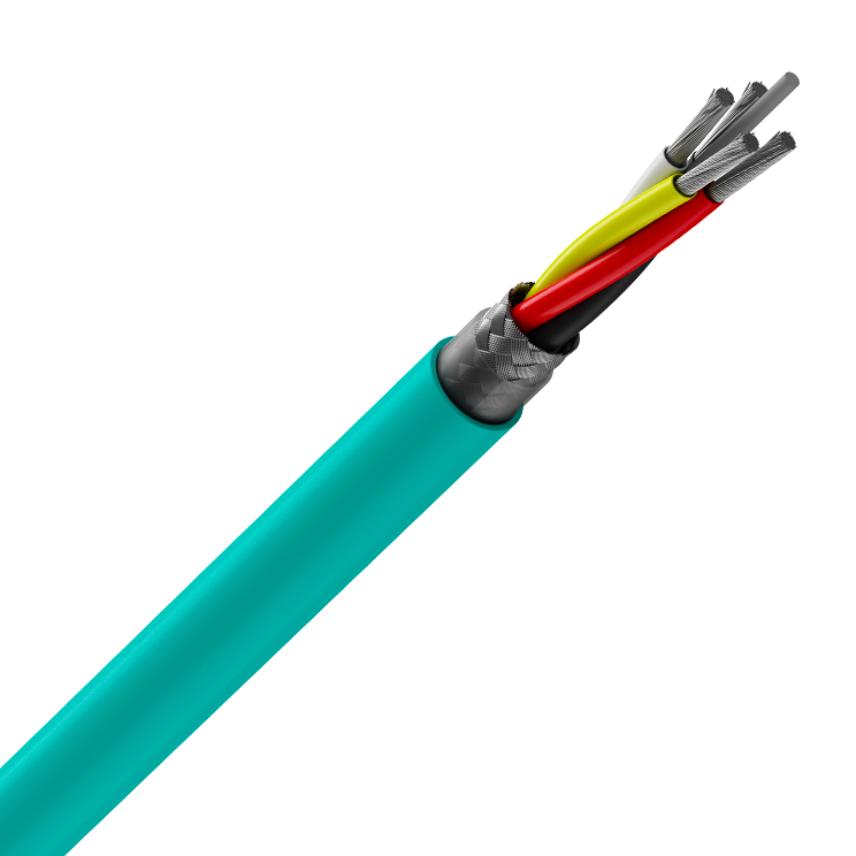

FLAMEX MVB 4 x 0,50²
Nexans ref. 10191555 - Country ref. 2PE993
- Packaging: Spool (1000m)
- Construction type: 4 x 0.50²
- Core identification: White/Yellow + Red/Black
- Approximate weight: 86 kg/km
- Minimum operating temperature: -25 °C
FLAMEX MVB 4 x 0,50²
Nexans ref. 10218773 - Country ref. 2PK697
- Packaging: Spool (1000m)
- Construction type: 4 x 0.50²
- Core identification: White/Yellow + Red/Black
- Approximate weight: 86 kg/km
- Minimum operating temperature: -40 °C
Description
Description
Standards
-
ProductEN 45545-2 (HL3); EN 50264-1
DESIGN
1. Conductor
Stranded tinned copper
2. Insulation
Foam polyethylene
3. Screen
Tinned copper braid
Separator tape
4. Outer sheath
Cross-linked material EM 104 or EM 101 acc. EN 50264-1
Oil, diesel, ozone and UV resistant
Colour: turquoise
Example of marking: 300V - 4x0.5mm² M S - QUADRAX 120 OHMS - FLAMEX 239 - EDE 2PK697 - week/year - batch number
GUIDE TO USE
- Bending radius:
- Static use: 5 x outer cable diameter
- For installation and occasional movements: 10 x outer cable diameter
