TX® (I) 150/250(300) V

Products

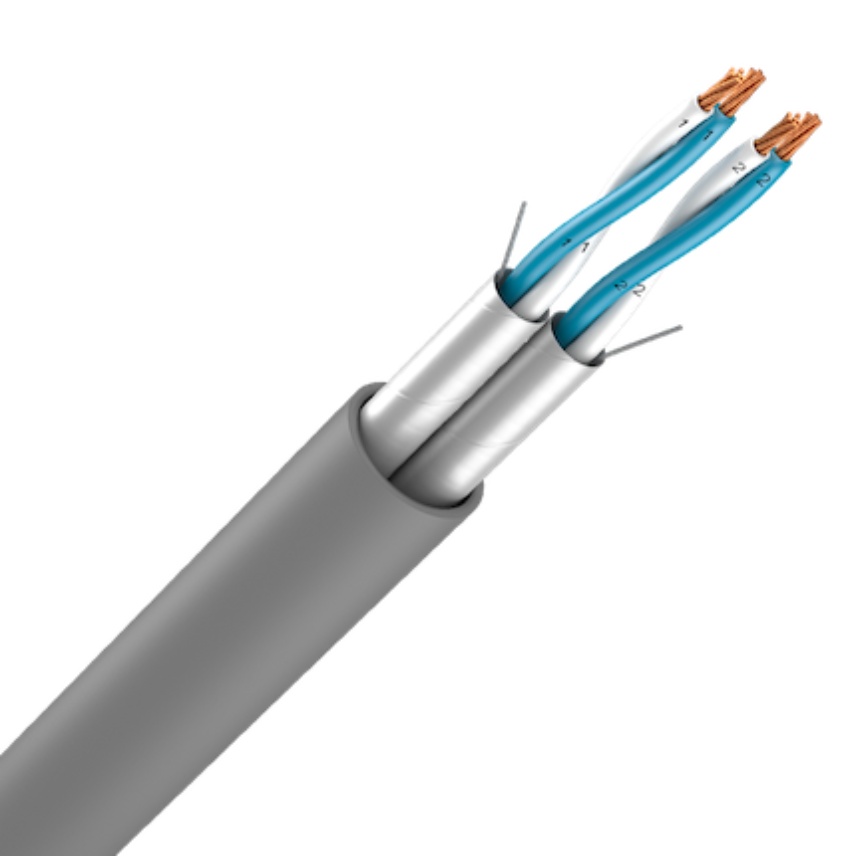

TX® (I) 150/250V 2P0.75

Product ref. 10167495

  • Packaging: Drum (100000m)
  • Number of pairs: 2
  • Number of triples: -
  • Minimum outer diameter: 9.0 mm
  • Maximum outer diameter: 10.4 mm
  • Approximate weight: 101 kg/km



TX® (I) 150/250V 4P0.75

Product ref. 10167499

  • Packaging: Drum (100000m)
  • Number of pairs: 4
  • Number of triples: -
  • Minimum outer diameter: 10.5 mm
  • Maximum outer diameter: 12.1 mm
  • Approximate weight: 149 kg/km



TX® (I) 150/250V 7P0.75

Product ref. 10167501

  • Packaging: Drum (100000m)
  • Number of pairs: 7
  • Number of triples: -
  • Minimum outer diameter: 12.7 mm
  • Maximum outer diameter: 14.7 mm
  • Approximate weight: 243 kg/km



TX® (I) 150/250V 10P0.75

Product ref.

  • Packaging: Drum (100000m)
  • Number of pairs: 10
  • Number of triples: -
  • Minimum outer diameter: 16.0 mm
  • Maximum outer diameter: 18.0 mm
  • Approximate weight: 350 kg/km



TX® (I) 150/250V 14P0.75

Product ref. 10223450

  • Packaging: Drum (100000m)
  • Number of pairs: 14
  • Number of triples: -
  • Minimum outer diameter: 18.4 mm
  • Maximum outer diameter: 21.2 mm
  • Approximate weight: 490 kg/km



TX® (I) 150/250V 19P0.75

Product ref.

  • Packaging: Drum (100000m)
  • Number of pairs: 19
  • Number of triples: -
  • Minimum outer diameter: 20.5 mm
  • Maximum outer diameter: 23.5 mm
  • Approximate weight: 650 kg/km



TX® (I) 150/250V 24P0.75

Product ref.

  • Packaging: Drum (100000m)
  • Number of pairs: 24
  • Number of triples: -
  • Minimum outer diameter: 23.5 mm
  • Maximum outer diameter: 26.5 mm
  • Approximate weight: 840 kg/km



TX® (I) 150/250V 1T0.75

Product ref.

  • Packaging: Drum (100000m)
  • Number of pairs: -
  • Number of triples: 1
  • Minimum outer diameter: 6.4 mm
  • Maximum outer diameter: 7.3 mm
  • Approximate weight: 58 kg/km



TX® (I) 150/250V 2T0.75

Product ref. 10285273

  • Packaging: Drum (100000m)
  • Number of pairs: -
  • Number of triples: 2
  • Minimum outer diameter: 10.5 mm
  • Maximum outer diameter: 12.1 mm
  • Approximate weight: 125 kg/km



TX® (I) 150/250V 4T0.75

Product ref. 10167500

  • Packaging: Drum (100000m)
  • Number of pairs: -
  • Number of triples: 4
  • Minimum outer diameter: 11.8 mm
  • Maximum outer diameter: 13.6 mm
  • Approximate weight: 202 kg/km



TX® (I) 150/250V 7T0.75

Product ref. 10167503

  • Packaging: Drum (100000m)
  • Number of pairs: -
  • Number of triples: 7
  • Minimum outer diameter: 15.1 mm
  • Maximum outer diameter: 17.3 mm
  • Approximate weight: 334 kg/km



TX® (I) 150/250V 10T0.75

Product ref. 10203711

  • Packaging: Drum (100000m)
  • Number of pairs: -
  • Number of triples: 10
  • Minimum outer diameter: 17.6 mm
  • Maximum outer diameter: 20.2 mm
  • Approximate weight: 463 kg/km



Description

Description

Standards

  • Product
    IEC 60228
  • Installation
    IEC 60092-350; IEC 60092-360; IEC 60092-376
  • Test
    IEC 60332-1; IEC 60332-3-22; IEC 60754-1; IEC 60754-2; IEC 61034

Application

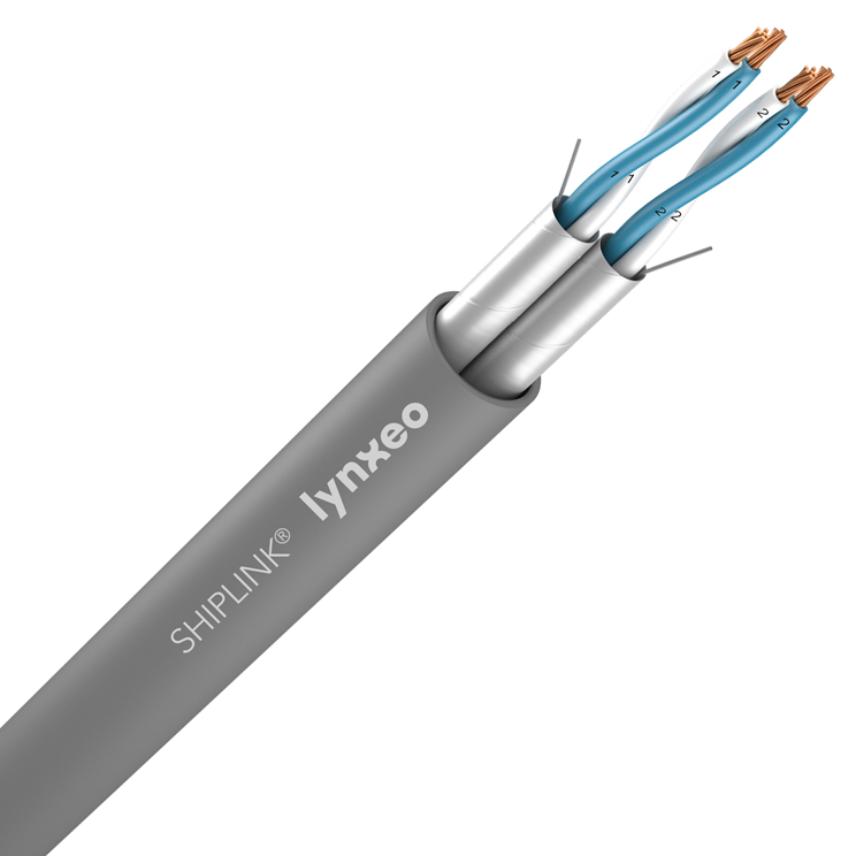

TX® (I) 150/250 V  overall and individually screened twisted pair cables are used for telecommunication and instrumentation purposes. These cables show strong protection aganist cross-talk and result into a good compromise between TX®(C) and TCX®(C)  cables against external electromagnetic disturbances. Designed with halogen-free fire retardant materials, they provide optimum safety for people and maximal asset protection against all risks of fire.

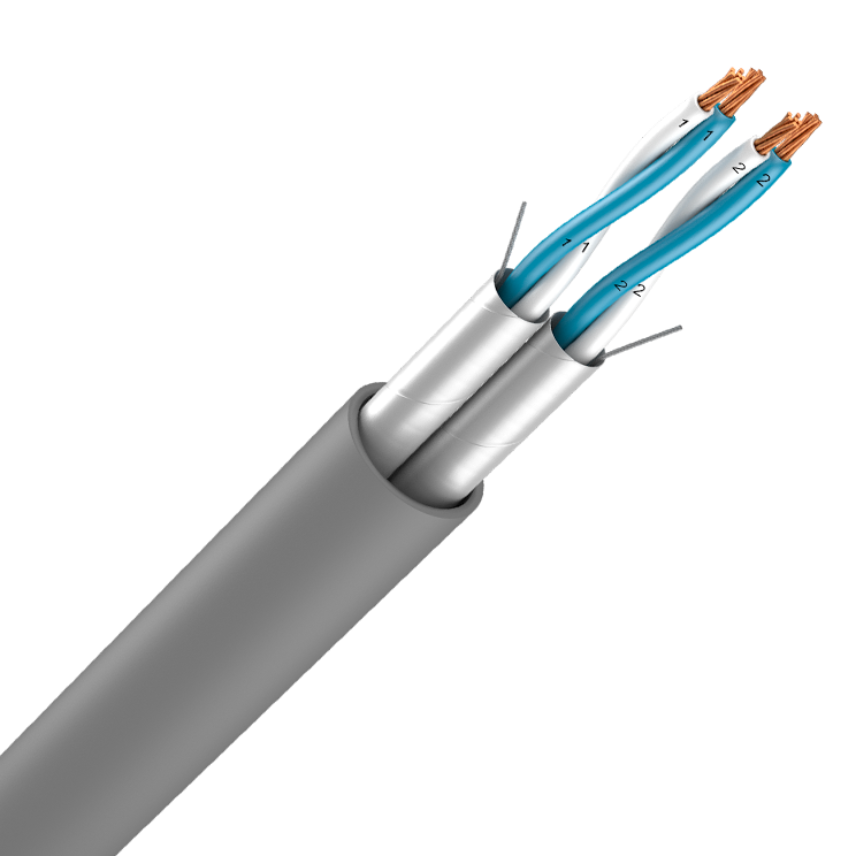

Design

1. Conductor
    Stranded bare copper class 2

2. Insulation
    XLPE (Cross-linked polyethylene)

3. Individual screen
    Alu/polyester tape with a tinned copper drain wire

4. Outer sheath
    Polyolefin SHF1
    Colour : grey



Example of marking:
LYNXEO 279  TX(I) Nbr of pairs/triads & cross-section 150/250V 90C IEC 60092-376 IEC 60332-3-22 Cat.A WW YYYY *CE* Manufacturing n° + metric marking

Core identification
Pair: white / blue with printed pair number
Triad: white / blue / red with printed triad number

Characteristics

Characteristics

Construction characteristics

Construction characteristics

Halogen free
IEC 60754-1

Dimensional characteristics

Dimensional characteristics

Conductor cross-section
0.75 mm²

Electrical characteristics

Electrical characteristics

Rated Voltage Uo/U (Um)
150 / 250 (300) V

Usage characteristics

Usage characteristics

Fire retardant
EN IEC 60332-3-22 (cat A)
Flame retardant
IEC 60332-1
Smoke density
IEC 61034
Gases corrosivity
IEC 60754-2
Electro magnetic interference resistance
Yes
Operating temperature, range
-30 ... 80 °C
Max. conductor temperature in service
90 °C
