MPRXCX® FLEXISHIP EMC 1.8/3kV 3x95+3G16

Application

Motor supply cable for frequency converters controlled low voltage AC drives on ships, called VFD applications. MPRXCX^® FLEXISHIP^® EMC cables are designed with a special coverage, copper-polyester tape and braid, which provide a 100% EMC protection. Insulation with low dielectric constant is used to reduce reflected wave voltage peak magnitude.
Symmetrical insulated ground wires, placed in corner, can reduce reflected wave and return common mode noisy currents back to the drive. Enhanced insulation is implemented for 1.8/3(3.6) kV cable to fulfil periodic peak voltage up to 3 kV due to harmonics.
These cables are used on board of ships in all locations for fixed installations.

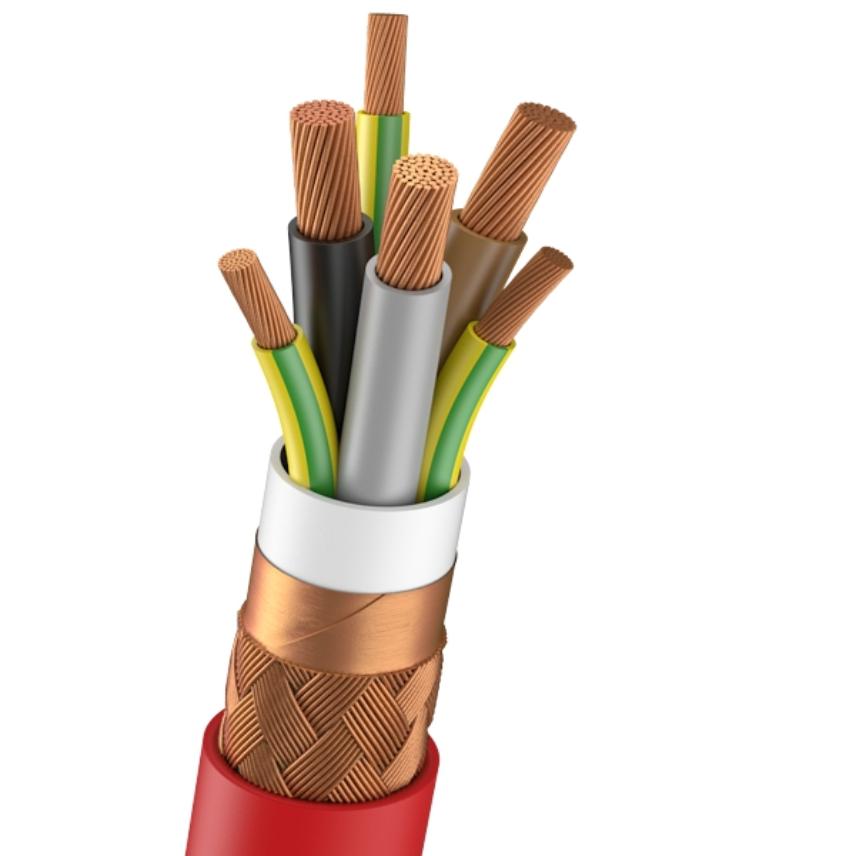

Design

1. Conductor
   Flexible bare copper
   Class 5

2. Insulation
   XLPE (cross-linked polyethylene)

3. Optional
   Symmetrical return earth conductors

4. Inner covering
   Lapped or extruded

5. Screen / Armouring
   Copper / polyester tape
   Bare copper braid

6. Outer sheath
   Polyolefin SHF1
   Colour: red

Example of marking:
LYNXEO 279  MPRXCX FLEXISHIP EMC  1.8/3kV  "n"x"s"mm2 90°C
IEC 60092-353 IEC 60332-3-22  Cat. A ww/yy + metric marking

Core Identification
3 cores: black-grey-brown
Earth: green/yellow split in 3 conductors
