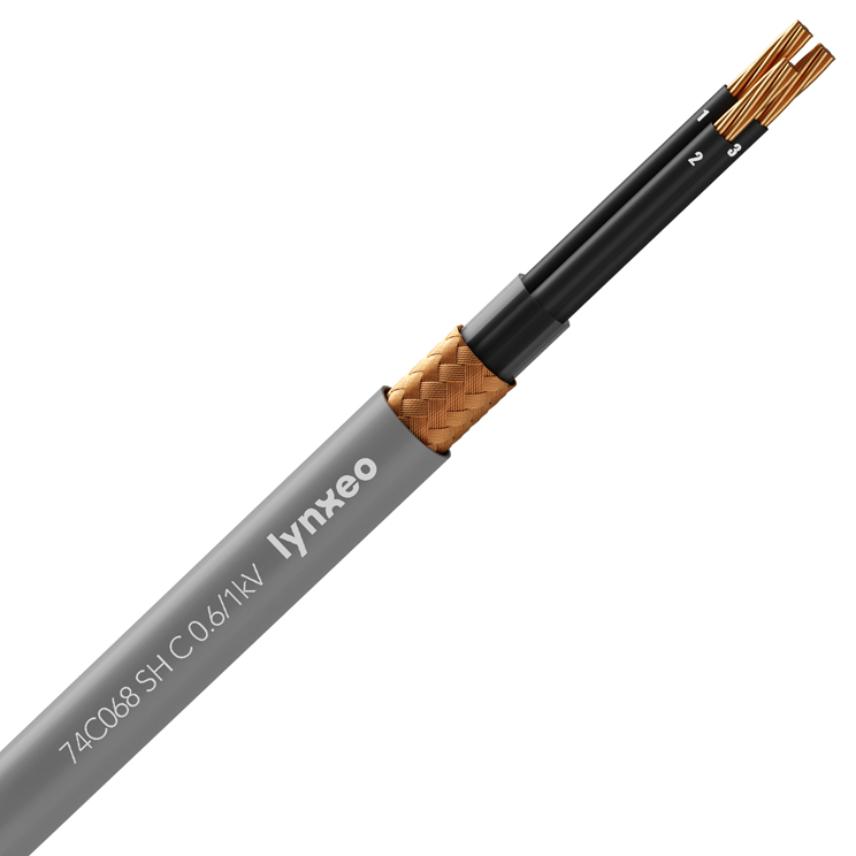

74C068 SH C 0.6/1kV ... Cu2/5 K3 EG NA
74C068 SH C 0.6/1kV ... Cu2/5 K3 EG NA
- CST 74C068
- Quality insurance according to RCC-E
- Zero halogen (SH)
- Control cables 0.6/1(1.2)kV
- Cables installed outside the containment area (K3)
- Overall screened (EG)
- Unarmoured (NA)
74C068 SH C 0.6/1kV 3x6 Cu2 K3 EG NA
Product ref. 10265083
- 包装: Cut to length (米)
- 导线截面: 6 mm²
- 芯线数: 3
- 20°C时导体的最大直流电阻: 3.08 Ohm/km
- 90°C时导体的最大直流电阻: 3.920 Ohm/km
- Reactance at 50 Hz: 0.084 Ohm/km
- Short Circuit Current 0,3 s Max : 1.6 kA
- Short Circuit Current 1 s Max : 0.86 kA
- Voltage Drop: 6.4 V/A.km
- Impedance at 50 Hz : 3.08 Ohm
- Calorific Power: 2.3 MJ/m
74C068 SH C 0.6/1kV 4x6 Cu2 K3 EG NA
Product ref. 10265136
- 包装: Cut to length (米)
- 导线截面: 6 mm²
- 芯线数: 4
- 20°C时导体的最大直流电阻: 3.08 Ohm/km
- 90°C时导体的最大直流电阻: 3.920 Ohm/km
- Reactance at 50 Hz: 0.084 Ohm/km
- Short Circuit Current 0,3 s Max : 1.6 kA
- Short Circuit Current 1 s Max : 0.86 kA
- Voltage Drop: 6.4 V/A.km
- Impedance at 50 Hz : 3.08 Ohm
- Calorific Power: 2.5 MJ/m
74C068 SH C 0.6/1kV 3x10 Cu2 K3 EG NA
Product ref. 10265134
- 包装: Cut to length (米)
- 导线截面: 10 mm²
- 芯线数: 3
- 20°C时导体的最大直流电阻: 1.83 Ohm/km
- 90°C时导体的最大直流电阻: 2.330 Ohm/km
- Reactance at 50 Hz: 0.079 Ohm/km
- Short Circuit Current 0,3 s Max : 2.6 kA
- Short Circuit Current 1 s Max : 1.4 kA
- Voltage Drop: 3.8 V/A.km
- Impedance at 50 Hz : 1.83 Ohm
- Calorific Power: 2.9 MJ/m
74C068 SH C 0.6/1kV 3x16 Cu2 K3 EG NA
Product ref. 10265135
- 包装: Cut to length (米)
- 导线截面: 16 mm²
- 芯线数: 3
- 20°C时导体的最大直流电阻: 1.15 Ohm/km
- 90°C时导体的最大直流电阻: 1.460 Ohm/km
- Reactance at 50 Hz: 0.076 Ohm/km
- Short Circuit Current 0,3 s Max : 4.2 kA
- Short Circuit Current 1 s Max : 2.6 kA
- Voltage Drop: 2.4 V/A.km
- Impedance at 50 Hz : 1.15 Ohm
- Calorific Power: 3.5 MJ/m
Description
Description
Standards
-
ProductIEC 60228
-
TestIEC 60332-3-23; IEC 60754-1; IEC 60754-2; IEC 61034-2; NF C32-070/C1
Applications
These control cables allow connection to a variety of industrial equipement from control room. Many of them require anti-inductive screen (EMI).
Design
Conductor:
- Stranded (class 2) or flexible (class 5) plain copper
Insulation:
- Zero halogen (SH), cross-linked
Assembling:
- An inner sheath acting as a filler or polyester tape
Screen:
- Copper wire braid (CWB) R ≥ 80%
Outer sheath:
- Low smoke, zero halogen (LSZH)
- Colour: Grey
Core identification
Black cores printed with white numbers
Optional: with G/Y core.
Characteristics
Characteristics
结构特性
结构特性
电气特性
电气特性
使用特性
使用特性
Resources
Resources
Documentation
Selling & delivery Information
Minimum bending radius:
10 x outer diameter
To be doubled during laying operations
Marking
NEXANS 279 Nber of cores & cross-section Cu EG CST 74 C 068 K3 SH 0.6/1(1.2) kV YYYY Manufacturing number + metric marking
