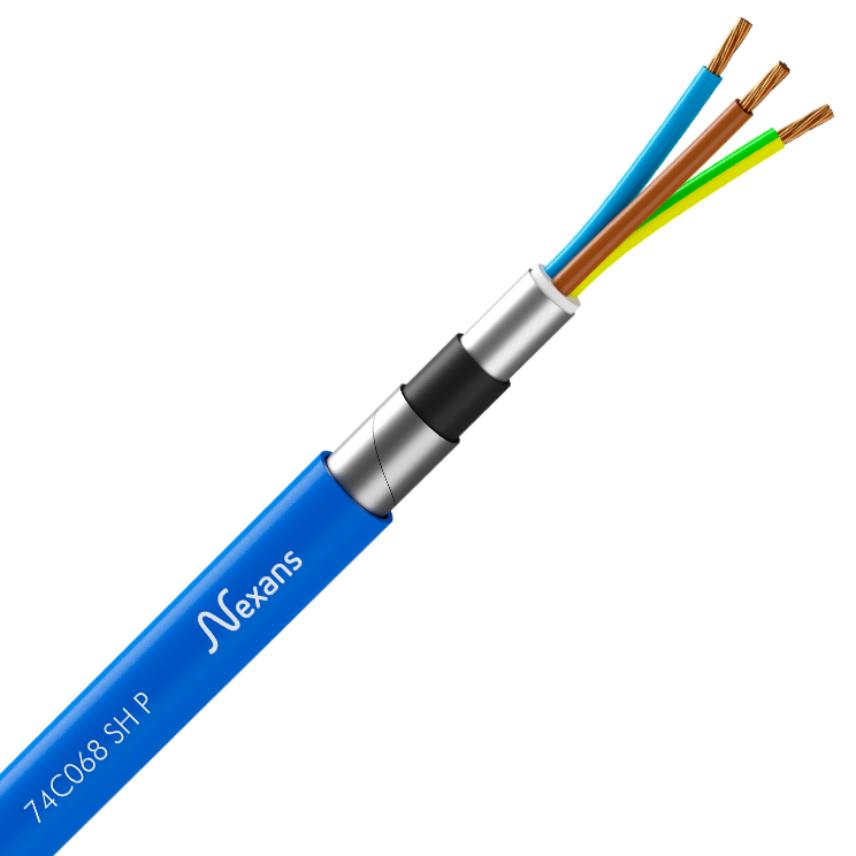

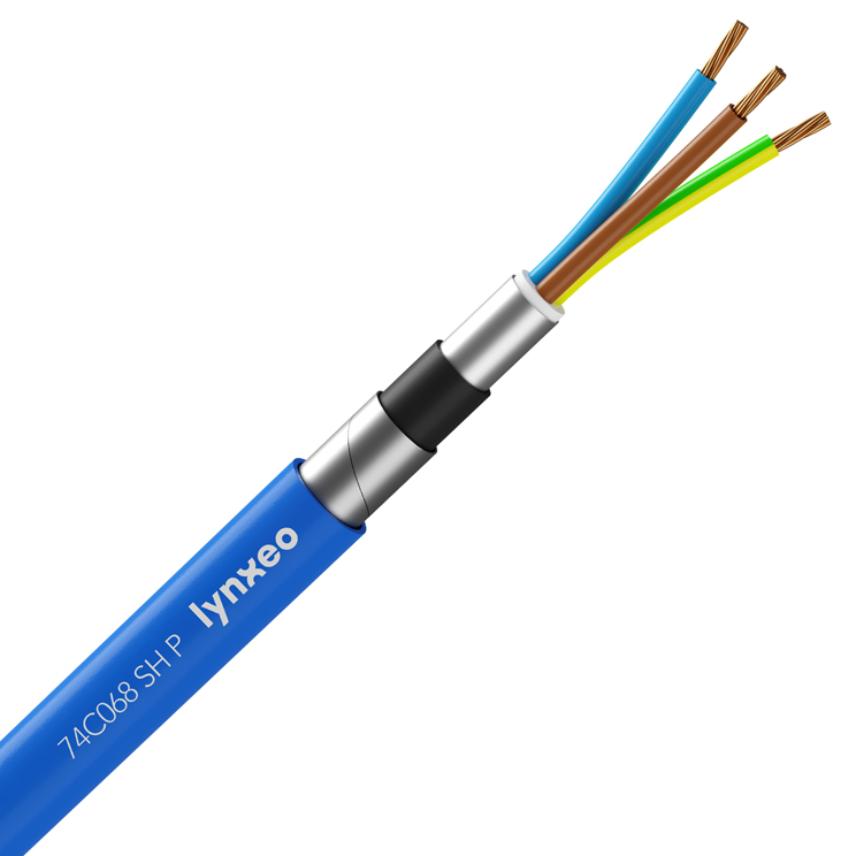

74C068 SH P ... K3 AR
74C068 SH P ... K3 AR
ENERGEN
- Low voltage cables 0.6/1 (1.2) V
- CST 74C068
- Zero halogen (SH)
- Cables installed outside of the containment area (K3)
- Armoured (NA)
74C068 SH P 2x2,5 Cu2 K3 AR
Product ref. 10176143
- 包装: Cut to length (米)
- 导体材料: 裸铜
- 有绿/黄芯线: 无
- 导线截面: 2.5 mm²
- 芯线数: 2
74C068 SH P 3x2,5 Cu2 K3 AR
Product ref. 10176144
- 包装: Cut to length (米)
- 导体材料: 裸铜
- 有绿/黄芯线: 无
- 导线截面: 2.5 mm²
- 芯线数: 3
74C068 SH P 3G2,5 Cu2 K3 AR
Product ref. 10219595
- 包装: Cut to length (米)
- 导体材料: 裸铜
- 有绿/黄芯线: 是
- 导线截面: 2.5 mm²
- 芯线数: 3
74C068 SH P 4G2,5 Cu2 k3 AR
Product ref. 10224741
- 包装: Cut to length (米)
- 导体材料: 裸铜
- 有绿/黄芯线: 是
- 导线截面: 2.5 mm²
- 芯线数: 4
74C068 SH P 5G2,5 Cu2 k3 AR
Product ref. 10221775
- 包装: Cut to length (米)
- 导体材料: 裸铜
- 有绿/黄芯线: 是
- 导线截面: 2.5 mm²
- 芯线数: 5
74C068 SH P 2x6 Cu2 k3 AR
Product ref. 10176149
- 包装: Cut to length (米)
- 导体材料: 裸铜
- 有绿/黄芯线: 无
- 导线截面: 6 mm²
- 芯线数: 2
74C068 SH P 3x6 Cu2 k3 AR
Product ref. 10176150
- 包装: Cut to length (米)
- 导体材料: 裸铜
- 有绿/黄芯线: 无
- 导线截面: 6 mm²
- 芯线数: 3
74C068 SH P 4x6 Cu2 k3 AR
Product ref. 10176151
- 包装: Cut to length (米)
- 导体材料: 裸铜
- 有绿/黄芯线: 无
- 导线截面: 6 mm²
- 芯线数: 4
74C068 SH P 5G6 Cu2 k3 AR
Product ref. 10224781
- 包装: Cut to length (米)
- 导体材料: 裸铜
- 有绿/黄芯线: 是
- 导线截面: 6 mm²
- 芯线数: 5
74C068 SH P 2x16 Cu2 k3 AR
Product ref. 10176155
- 包装: Cut to length (米)
- 导体材料: 裸铜
- 有绿/黄芯线: 无
- 导线截面: 16 mm²
- 芯线数: 2
74C068 SH P 3x35 Cu2 k3 AR
Product ref. 10176162
- 包装: Cut to length (米)
- 导体材料: 裸铜
- 有绿/黄芯线: 无
- 导线截面: 35 mm²
- 芯线数: 3
74C068 SH P 4x35 Cu2 K3 AR
Product ref. 10176163
- 包装: Cut to length (米)
- 导体材料: 裸铜
- 有绿/黄芯线: 无
- 导线截面: 35 mm²
- 芯线数: 4
74C068 SH P 3x95 Cu2 K3 Ar
Product ref.
- 包装: Cut to length (米)
- 导体材料: 裸铜
- 有绿/黄芯线: 无
- 导线截面: 95 mm²
- 芯线数: 3
74C068 SH P 1x240 Cu2 K3 AR
Product ref.
- 包装: Cut to length (米)
- 导体材料: 裸铜
- 有绿/黄芯线: 无
- 导线截面: 240 mm²
- 芯线数: 1
74C068 SH P 3x240 Alu2 k3 AR
Product ref. 10221827
- 包装: Cut to length (米)
- 导体材料: 铝
- 有绿/黄芯线: 无
- 导线截面: 240 mm²
- 芯线数: 3
Description
Description
Standards
-
ProductIEC 60228
-
TestIEC 60332-3-23; IEC 60754-1; IEC 61034-2; NF C32-070/C1
Applications
These low voltage cables are used for lighting system power supply, engine power supply and solenoid valve power supply. They are well adapted to under ground use.
Design
Design
Conductor:
Stranded bare copper or aluminium (class 2)
Insulation:
Cross-linked halogen free (SH)
Covering (optional):
Flame retardant filler material
Inner sheath:
Low smoke, zero halogen (LSZH)
Armour:
Steel tape (STA) or aluminium tape (ATA) for 1 core cable
Outer sheath:
Low smoke, zero halogen (LSZH)
Colour: Blue
Core identification
According to HD308 S2
Marking
LYNXEO 279 Nber of cores & cross-section Cu/Al Armé CST 74 C 068 00 K3 SH 0.6/1 (1.2) kV YYYY Manufacturing number + metric marking
Standard
Standard
IEC 60332-3-23(B)
Quality insurance according to RCC-E
Characteristics
Characteristics
结构特性
结构特性
电气特性
电气特性
使用特性
使用特性
Resources
Resources
Selling & delivery Information
Minimum bending radius:
10 x outer diameter
To be doubled during laying operations
