FLAMEX® EN 50264-3-1 M 1800V
FLAMEX® EN 50264-3-1 M 1800V
FLAMEX
SINGLE CORE POWER CABLES
FLAMEX® EN 50264-3-1 1800V M power cables are used for fixed and protected installations. This product range is recommended for narrow spaces where an optimal bending radius is required. FLAMEX® cables are designed to withstand tough working conditions (oil, ozone, temperature variation, etc.). 120°C conductor temperature is allowed for a 20,000 hours cumulative working time.
FLAMEX EN 50264-3-1 1800V 1.5 M
Nexans ref. 79462320
- 包装: Spool (1000m)
- 导线截面: 1.5 mm²
- 外径最小值: 5.7 mm
- Maximum outer diameter: 5.9 mm
- 近似重量: 50 kg/km
FLAMEX EN 50264-3-1 1800V 2.5 M
Nexans ref. 79462420
- 包装: Spool (1000m)
- 导线截面: 2.5 mm²
- 外径最小值: 6.05 mm
- Maximum outer diameter: 6.35 mm
- 近似重量: 63 kg/km
FLAMEX EN 50264-3-1 1800V 4 M
Nexans ref. 79462520
- 包装: Spool (1000m)
- 导线截面: 4 mm²
- 外径最小值: 6.55 mm
- Maximum outer diameter: 6.85 mm
- 近似重量: 78 kg/km
FLAMEX EN 50264-3-1 1800V 6 M
Nexans ref. 79462620
- 包装: Spool (1000m)
- 导线截面: 6 mm²
- 外径最小值: 7.05 mm
- Maximum outer diameter: 7.35 mm
- 近似重量: 99 kg/km
FLAMEX EN 50264-3-1 1800V 10 M
Nexans ref. 79462720
- 包装: Spool (1000m)
- 导线截面: 10 mm²
- 外径最小值: 7.9 mm
- Maximum outer diameter: 8.3 mm
- 近似重量: 146 kg/km
FLAMEX EN 50264-3-1 1800V 16 M
Nexans ref. 79462820
- 包装: Drum (1000m)
- 导线截面: 16 mm²
- 外径最小值: 9.0 mm
- Maximum outer diameter: 9.4 mm
- 近似重量: 213 kg/km
FLAMEX EN 50264-3-1 1800V 25 M
Nexans ref. 79462920
- 包装: Drum (1000m)
- 导线截面: 25 mm²
- 外径最小值: 10.3 mm
- Maximum outer diameter: 10.9 mm
- 近似重量: 301 kg/km
FLAMEX EN 50264-3-1 1800V 35 M
Nexans ref. 79463020
- 包装: Drum (1000m)
- 导线截面: 35 mm²
- 外径最小值: 11.4 mm
- Maximum outer diameter: 12.0 mm
- 近似重量: 385 kg/km
FLAMEX EN 50264-3-1 1800V 50 M
Nexans ref. 79463120
- 包装: Drum (1000m)
- 导线截面: 50 mm²
- 外径最小值: 13.3 mm
- Maximum outer diameter: 13.9 mm
- 近似重量: 538 kg/km
FLAMEX EN 50264-3-1 1800V 70 M
Nexans ref. 79463220
- 包装: Drum (1000m)
- 导线截面: 70 mm²
- 外径最小值: 15.3 mm
- Maximum outer diameter: 15.9 mm
- 近似重量: 740 kg/km
FLAMEX EN 50264-3-1 1800V 95 M
Nexans ref. 79463320
- 包装: Drum (1000m)
- 导线截面: 95 mm²
- 外径最小值: 17.0 mm
- Maximum outer diameter: 17.6 mm
- 近似重量: 957 kg/km
FLAMEX EN 50264-3-1 1800V 120 M
Nexans ref. 79463420
- 包装: Drum (1000m)
- 导线截面: 120 mm²
- 外径最小值: 19.3 mm
- Maximum outer diameter: 19.9 mm
- 近似重量: 1219 kg/km
FLAMEX EN 50264-3-1 1800V 150 M
Nexans ref. 79463520
- 包装: Drum (1000m)
- 导线截面: 150 mm²
- 外径最小值: 21.6 mm
- Maximum outer diameter: 22.2 mm
- 近似重量: 1525 kg/km
FLAMEX EN 50264-3-1 1800V 185 M
Nexans ref. 79463620
- 包装: Drum (1000m)
- 导线截面: 185 mm²
- 外径最小值: 23.5 mm
- Maximum outer diameter: 24.1 mm
- 近似重量: 1817 kg/km
FLAMEX EN 50264-3-1 1800V 240 M
Nexans ref. 79463720
- 包装: Drum (1000m)
- 导线截面: 240 mm²
- 外径最小值: 26.6 mm
- Maximum outer diameter: 27.2 mm
- 近似重量: 2347 kg/km
FLAMEX EN 50264-3-1 1800V 300 M
Nexans ref. 79463820
- 包装: Drum (1000m)
- 导线截面: 300 mm²
- 外径最小值: 29.3 mm
- Maximum outer diameter: 30.1 mm
- 近似重量: 2938 kg/km
Description
Description
Standards
-
ProductEN 50264-3-1; EN 45545 - HL3; IEC 60228

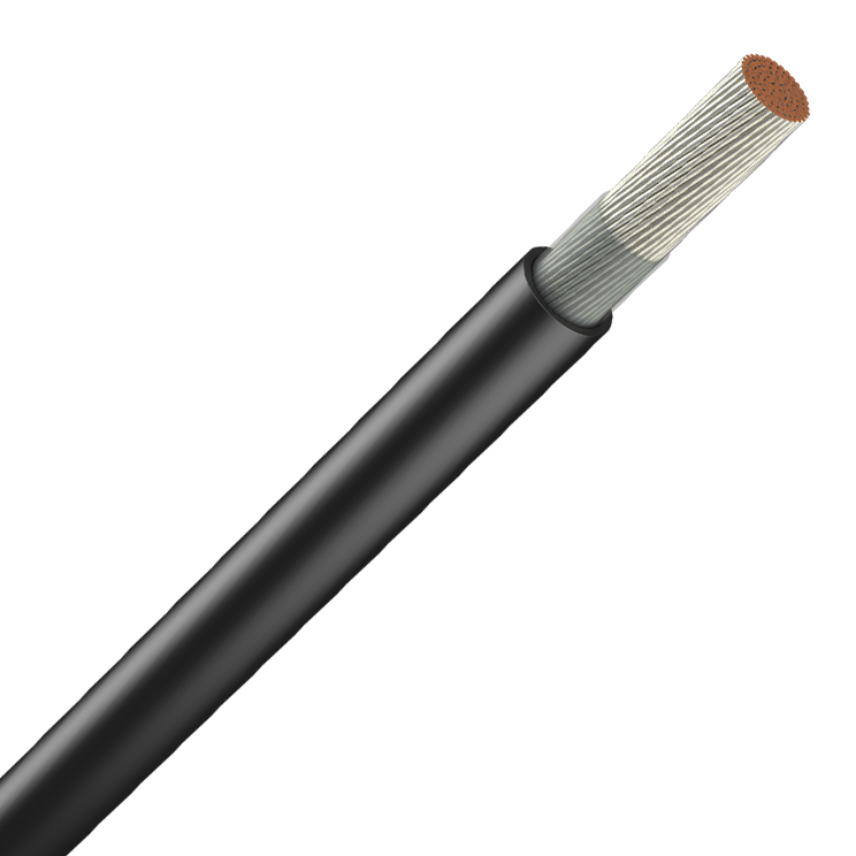

DESIGN
1. Conductor
Flexible stranded tinned copper, class 5 acc. to IEC 60228
Optional halogen-free separator tape
2. Insulation
Cross-linked compound type EI 109 acc. to EN 50264-1
Oil, diesel, ozone and UV resistant
Colour: black
Example of marking: FLAMEX EN 50264-3-1 1800 V (mm²) M I LYNXEO I WW-YYYY
GUIDE TO USE
- Cabling rules are given in EN 50343 and EN 50355
- Permissible current carrying capacities: values and calculation method are given in EN 50343
- Bending radius:
- Static use: 3 x outer cable diameter (5 x D if D>10mm)
- For installation and occasional movements: 6 x outer cable diameter
