FLAMEX 20 EN 50306-4 1E 4 x 1.00 - MM
FLAMEX 20 EN 50306-4 1E 4 x 1.00 - MM
FLAMEX
MULTICORES CONTROL CABLES
Strictly halogen free, FLAMEX EN 50306-3 & -4 control cables combine the advantages of small size, lightweight, high chemical resistance, high mechanical properties. They are recommended for installation in railway vehicles (locomotives, trains, trolleybusses...).
- Product ref. : 10145456
- Country ref. : 2PG967
Description
Description
Standards
-
ProductEN 45545-2 (HL3); EN 50264-1
-
TestEN 50305; EN 50306
DESIGN

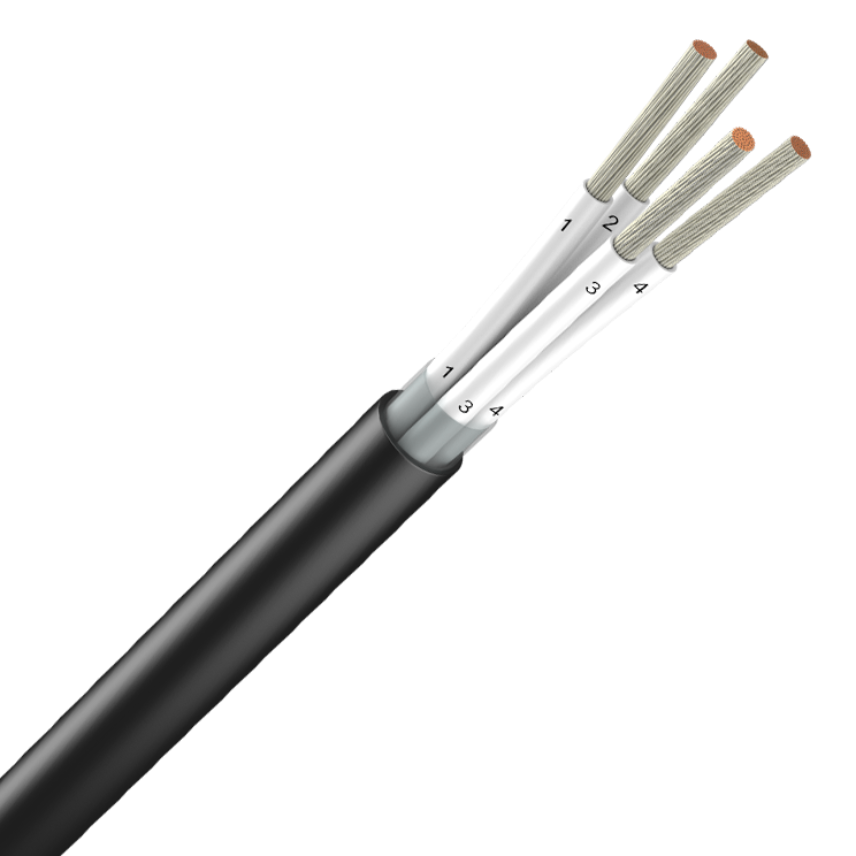

1. Conductor
Stranded tinned copper wires
Colour: white, numbered 1 to n
2. Insulation
Thin wall, cross-linked halogen free material acc. EN 50306-2
3. Screen (for screened versions)
Tinned copper braid with optional polyester tape
4. Outer sheath
Cross-linked halogen free material
Colour: black
Example of marking: FLAMEX 239 EN 50306-3 - 300 V - number of cores x cross-section - MM-S-90 - week/year batch number
GUIDE TO USE
- Cabling rules are given in EN 50343
- Permissible current carrying capacities: values and calculation method are given in EN 50343
- Bending radius
- Static use: 5 x outer diameter
- For installation and occasional movements: 10 x outer diameter
Characteristics
Characteristics
结构特性
结构特性
电缆类型
EN 50306-4 1E
导体材料
Tin plated copper
导线柔软度
柔软绞和
绝缘色
-
外护套
Cross-linked compound
无卤
EN 60754-1 & EN 60684-2
尺寸特性
尺寸特性
导线截面
1 mm²
导线直径
1.3 mm
Maximum outer diameter
7.3 mm
外径最小值
6.3 mm
近似重量
79 kg/km
Diameter over insulation, range
1.45 ... 1.8 mm
芯线数
4
电气特性
电气特性
额定电压Uo/U
300 / 500 V
20°C时导体的最大直流电阻
20 Ohm/km
使用特性
使用特性
阻燃 - 火焰
EN 60332-1-2
阻燃
EN IEC 60332-3-24 (cat C); EN IEC 60332-3-25 (EN50305)
烟密度
EN/IEC 61034-2
抗电磁干扰
无
气体毒性
EN 50305-9.2
操作温度范围
-40 ... 90 °C
芯线最高静止温度
90 °C
Overload maximum core temperature
120 °C
耐化学物质
优异
