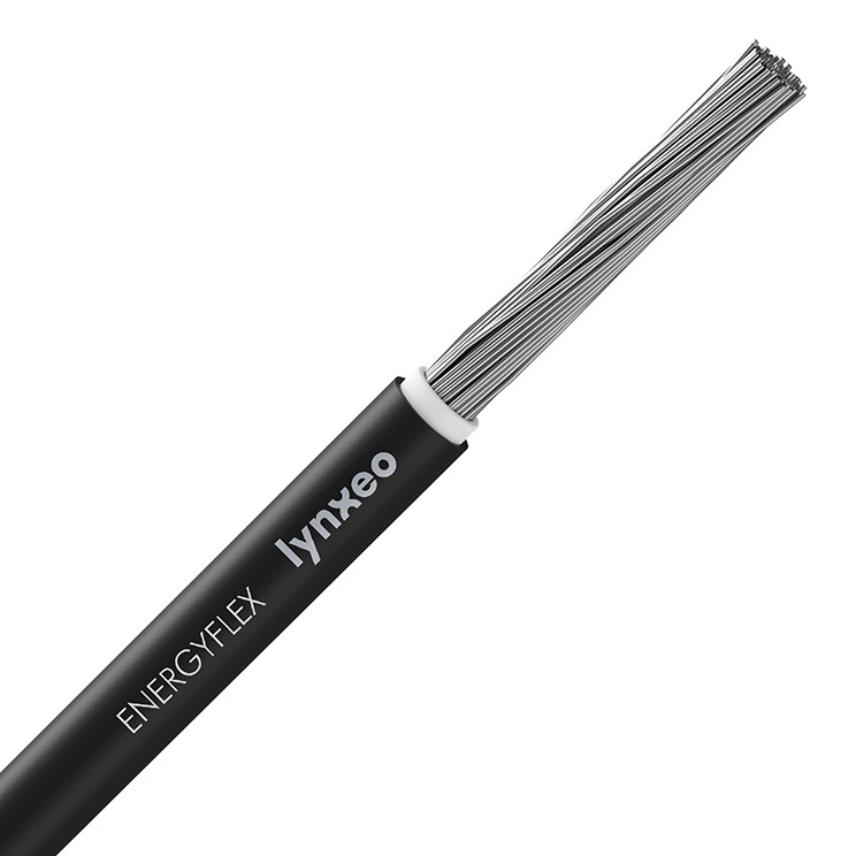

ENERGYFLEX
Energyflex® cables are designed to comply with the international standards of the solar plants.
They are dedicated to the photovoltaic system direct current (D.C.) side with a nominal D.C. voltage of 1.5 kV and a maximum D.C. voltage of 1.8 kV. These cables are suitable for permanent outdoor long-term use, under variable and harsh climate conditions.
They are designed and tested to operate at a normal maximum conductor temperature of 90°C and for 20,000 hours up to 120°C. Therefore, the expected period use is 30 to 40 years under normal usage conditions (lifetime acc. to Arrhenius-Diagram).
- Produkt ref. : 10189494
- EAN : 3427640020200
Beschreibung
Beschreibung
Normen
-
ProduktEN 50618; IEC 62930
Verwendung
PV-Kabel für die Vernetzung von Photovoltaiksystemen nach 2 Pfg 1169/08.2007 und UTE C 32-502.
Aufbau
1. Leiter:
Flexibler verzinnter Kupferleiter Class 5 nach IEC 60228.
2. Isolierung:
Polyolefin
3. Außenmantel
- Polyolefin
- Farbe schwarz
- andere Farben auf Anfrage
Aderfarben
1 Ader= Weiß
Prägung
ENERGYFLEX® PV1-F 1x s mm² 0.6/1kV Nexans 269 Photovoltaic
Verpackungseinheit
T500
PV
Eigenschaften
Eigenschaften
Konstruktionsmerkmale
Konstruktionsmerkmale
Abmessungsmerkmale
Abmessungsmerkmale
Elektrische Eigenschaften
Elektrische Eigenschaften
Mechanische Eigenschaften
Mechanische Eigenschaften
Anwendungsmerkmale
Anwendungsmerkmale
Ressourcen
Ressourcen
Dokumentation
Verkauf & Lieferung Informationen
"Want to know more about the environmental impact of the product during its life cycle ?
Please contact:: sustainable.development@nexans.com and discover the PEPecopassport® declaration available with all the details”
Leistungserklärung
- Leistungserklärung Nr (DoP) : 1000199-FRAN
- Datum der Zertifizierung : 17.12.19
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Benachrichtigte Stelle : NB 1812
- Erklärte Leistung : Dca-s2,d2,a1
