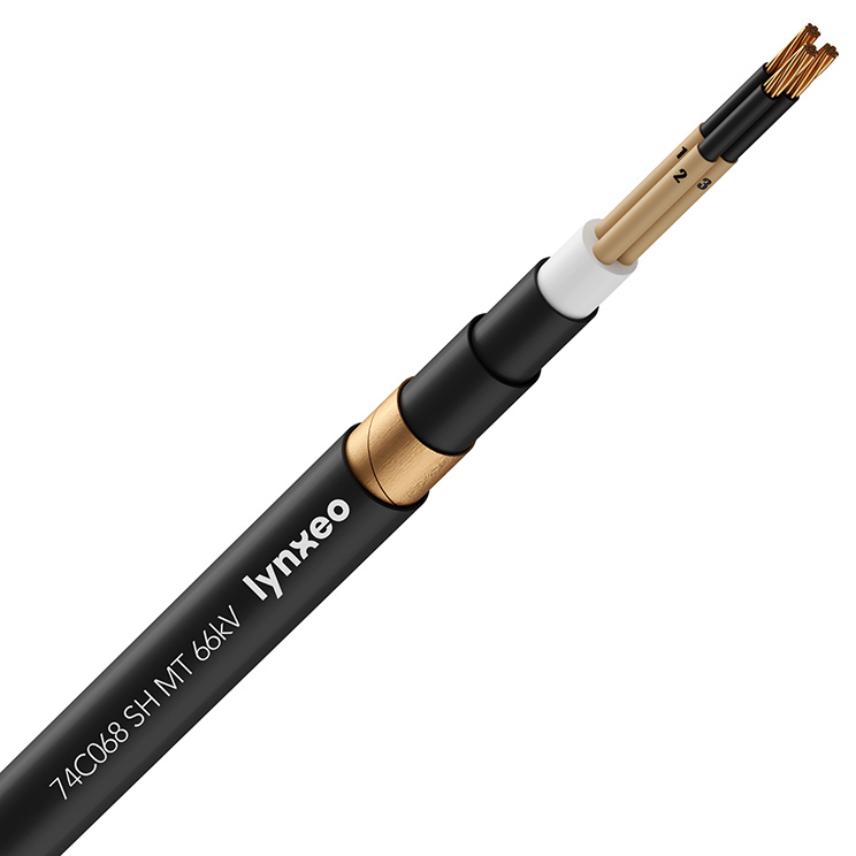

74C068 SH MT 6/6kV ... K1 NA
74C068 SH MT 6/6kV ... K1 NA
- Medium voltage cables 6/6 (7.2) kV
- CST 74C068
- Zero halogen (SH)
- Cables installed inside of the containment area (K1)
- Unarmoured (NA)
Beschreibung
Beschreibung
Normen
-
ProduktIEC 60228; IEC 60502-2
-
TestsIEC 60332-3-23; IEC 60754-1; IEC 61034-2; NF C32-070/C1
Applications
These medium voltage cables are used for medium voltage power supply,
Design
Conductor:
Stranded bare copper or aluminium (class 2)
Screen:
Semi-conductor
Insulation:
Ethylene Propylene Rubber (EPR)
Assembling sheath:
Halogen free
Inner sheath:
Halogen free
Screen:
Semi-conductor
Copper tape
Outer sheath:
Low smoke, zero halogen (LSZH)
Colour: Black
Core identification
3x: natural cores printed with black numbers
Marking
NEXANS 279 Nber of cores & cross-section Cu/Al CST 74 C 068 00 K1 SH 6/6(7.2) kV YYYY Manufacturing number + metric marking
Standard
IEC 60332-3-23(B)
Quality insurance according ot RCC-E
Eigenschaften
Eigenschaften
Konstruktionsmerkmale
Konstruktionsmerkmale
Abmessungsmerkmale
Abmessungsmerkmale
Elektrische Eigenschaften
Elektrische Eigenschaften
Anwendungsmerkmale
Anwendungsmerkmale
Ressourcen
Ressourcen
Verkauf & Lieferung Informationen
Minimum bending radius:
8 x outer diameter
To be doubled during laying operations
