EN 4604-008 WD
EN 4604-008 WD

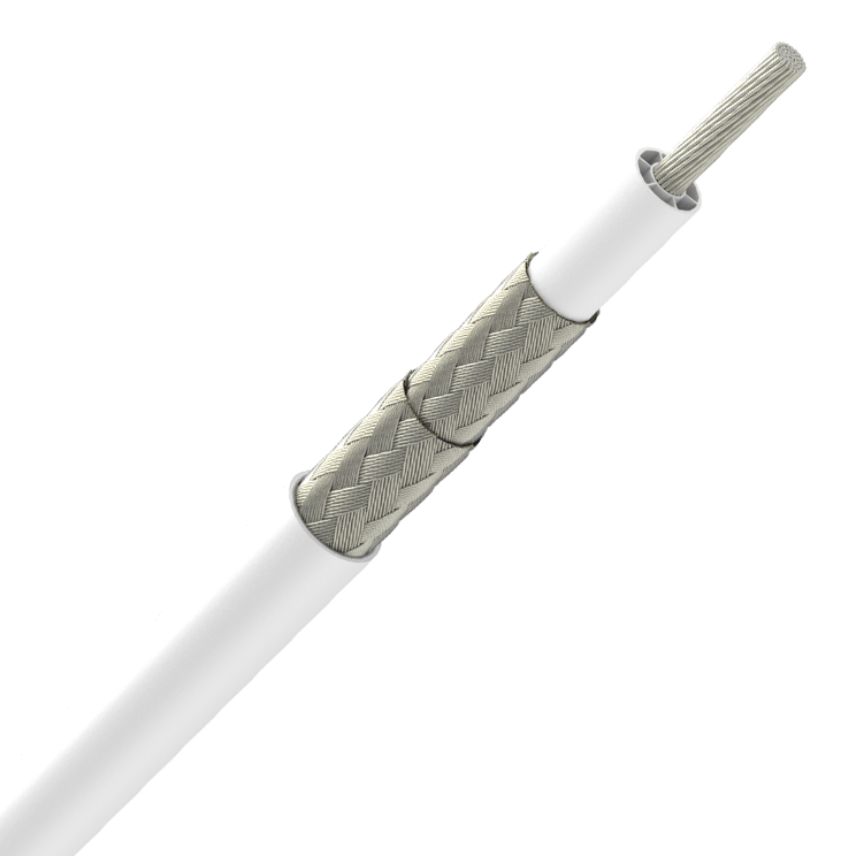

50 Ohms, Coaxial Cable
Designed for high frequency radio communications applications in aeronautic environment.
Beschreibung
Beschreibung
Normen
-
TestsprEN 3475
-
InternationalprEN 4604-001, -002 and -008
Product designed according to : prEN 4604-001, -002 and -008
Tested according to prEN 3475
CORE
37 x 0.34 mm Strand
Silver plated copper
Diamaeter = 2.33 ± 0.05 mm
INSULATION
Fluorocarbon
Diameter = 6.0 ± 0.10 mm
SHIELD
Two braids
Silver plated copper 0.13 mm
Diameter = 7.10 ± 0.10 mm
JACKET
Fluoropolymer
Diameter = 7.70 ± 0.20 mm
Nom. weight = 130 g/m
Max. weight = 137 g/m
Electrical Performances
| Operating frequency | : up to 8 GHz |
| Dielectric strength | : 2500Vac |
| Corona extinction voltage | : 1500Vac |
| Insulation resistance | : ≥ 5000 MΩ.km |
| Characteristic impedance at 200 MHz | : 50 ± 2 Ω |
| Maximum linear capacitance | : 85 pF/m |
| Nominal velocity of propagation | : 240 000 km/s |
High Frequency Performances
| Frequency | Nom. Rated Power | Max. Attenuation at 20°C | Max. Return Loss |
| (MHz) | (W) | (dB/100m) | |
| 50 | 5700 | 5.0 | 1.1 |
| 100 | 4000 | 7.2 | 1.1 |
| 150 | 3100 | 9.1 | 1.1 |
| 200 | 2700 | 10.7 | 1.15 |
| 400 | 1800 | 16.1 | 1.15 |
| 1000 | 1000 | 28.6 | 1.15 |
| 1600 | 730 | 39.6 | 1.2 |
| 2500 | 530 | 55.0 | 1.2 |
| 3000 | 480 | 61.0 | 1.2 |
| 8000 | 250 | 110.0 | 1.35 |
Transfert Impedance
| Maximum Values (mΩ/m) | : 4.2 from 0 to 0.01 MHz |
| : 4.0 at 0.1 MHz | |
| : 1.3 at 1 MHz | |
| : 0.6 at 5 MHz | |
| : 1.0 at 10 MHz | |
| : 2.3 at 30 MHz | |
| : 5.5 at 100 MHz |
Eigenschaften
Eigenschaften
Anwendungsmerkmale
Anwendungsmerkmale
Ressourcen
Ressourcen
Verkauf & Lieferung Informationen
Jacket Color : White
Color of the marking : Black
Marking text : " EN WD FRF ** "
FR = Country of Origin (FR = France)
F = Manufacturer (F = Filotex®)
(**) = Year of manufacturing (i.e. 14 = 2014)
