EN 4604-010 KX
EN 4604-010 KX

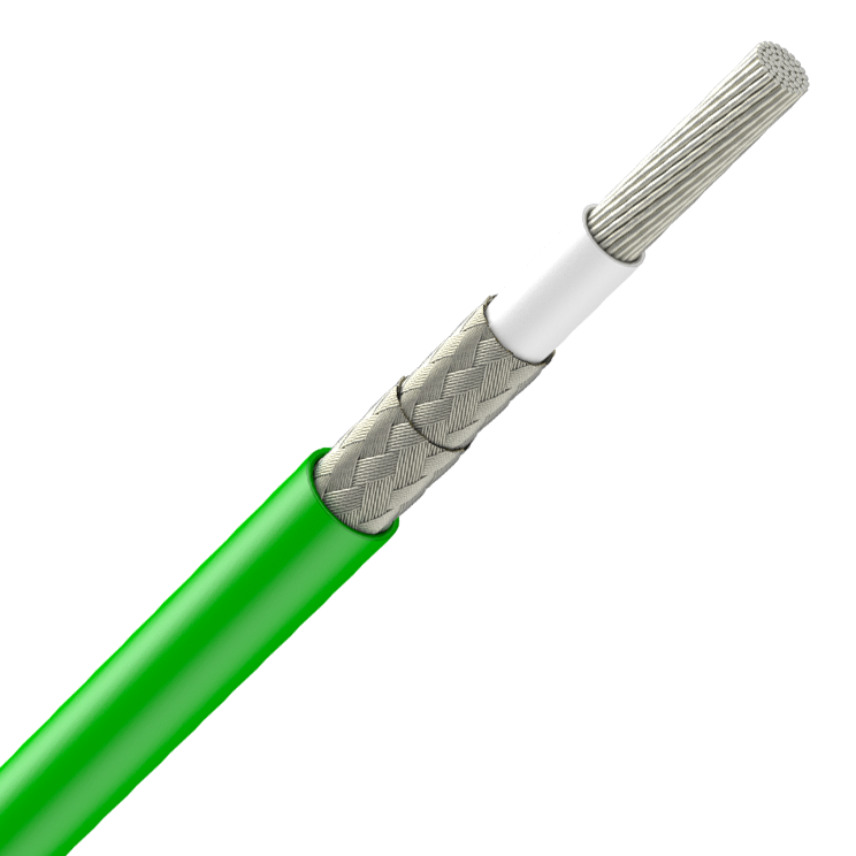

50 Ohms, Low Loss Light Weight Coaxial Cable.
Designed for high frequency signal transmission in aircraft electrical systems.
Beschreibung
Beschreibung
Product designed according to : EN 4604-001, -002 and -010
corE
Solid silver plated copper
Diameter : 1.40 ± 0.02 mm
insulation
Fluoropolymer
Diameter : 4.20 +0.10/-0.15 mm
shield
1st layer
Silver plated copper tape
2nd layer
Silver plated copper braid
Strand diameter : 0.13 mm
Diameter : 4.80 ± 0.20 mm
jacket
Fluoropolymer
Diameter : 5.40 ± 0.15 mm
Nominal weight : 74 g/m
Maximum weight : 80 g/m
Electrical Characteristics
| Operating frequency | : up to 6 GHz |
| Dielectric strength | : 2500 Vac |
| Operating voltage | : 1000 Vrms max. |
| Minimum insulation resistance | : 5000 MΩ.km |
| Characteristic impedance at 200MHz | : 50 ± 2 Ω |
| Maximum linear capacitance | : 88 pF/m |
| Minimum relative velocity of propagation | : 75% |
| Maximum conductor ohmic resistance | : 11.53 Ω/km |
High Frequency Performances
| Frequency | Max. Attenuation at 20°C | Max. Return Loss |
| (MHz) | (dB/100m) | |
| 50 | 5.5 | 1.10 |
| 100 | 7.8 | 1.10 |
| 150 | 9.7 | 1.10 |
| 200 | 11 | 1.15 |
| 400 | 15.5 | 1.15 |
| 1000 | 24.5 | 1.15 |
| 1600 | 31.5 | 1.20 |
| 2500 | 38.9 | 1.20 |
| 3000 | 43.8 | 1.20 |
| 6000 | 63.5 | 1.35 |
Transfert Impedance
| Maximum Values (mΩ/m) | : 9.0 from 0 to 0.01 MHz |
| : 9.0 at 0.1 MHz | |
| : 5.0 at 1 MHz | |
| : 1.8 at 5 MHz | |
| : 1.0 at 10 MHz | |
| : 0.5 at 30 MHz | |
| : 0.5 at 100 MHz |
Eigenschaften
Eigenschaften
Anwendungsmerkmale
Anwendungsmerkmale
Ressourcen
Ressourcen
Verkauf & Lieferung Informationen
Colour of jacket : Light Green
Colour of marking : Black
Marking text : " EN KX FRF** "
FR = Country of origin (FR = France)
F = Manufacturer (F = Nexans)
** = Year of manufacturing (i.e. 18 = 2018)
