50 Ohms Light Weight Coaxial Cable
Designed for signal transmission application in aeronautic environment.
Beschreibung
Beschreibung
Normen
-
ProduktEN 4604-003
-
TestsprEN 3475
Product designed according to : prEN 4604-001, -002 and -003.
Tested according to prEN 3475 and prEN 3838.

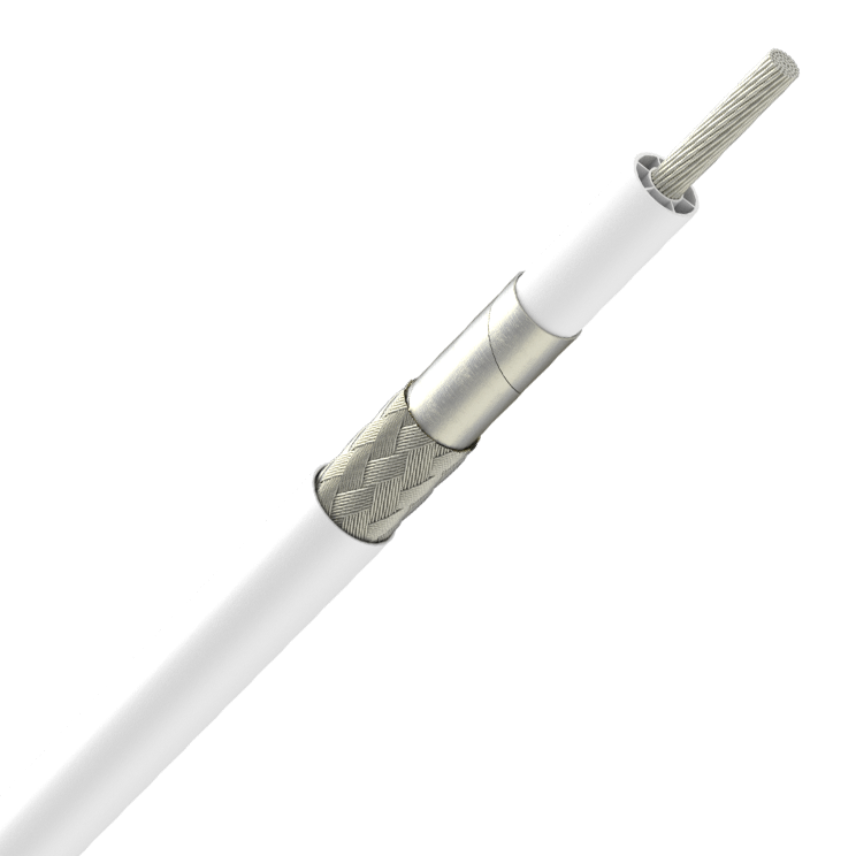

CORE
Solid silver plated copper
Diameter = 0.905 +/- 0.025 mm
INSULATION
Aerated Fluoropolymer
Diameter = 2.35 ± 0.15 mm
SHIELD
Metallized foil
Silver plated copper braid
Diameter = 3.05 ± 0.15 mm
JACKET
Fluoropolymer
UV laser marquable
Diameter = 3.55 ± 0.15 mm
Max. weight = 30 g/m
Electrical Characteristics
| Operating frequency | : up to 3 GHz |
| Dielectric strength | : 4000 Vac |
| Insulation resistance | : ≥ 1000 MΩ.km |
| Characteristic impedance | : 50 ± 2 Ω |
| Maximum linear capacitance | : 88 pF/m |
| Minimum relative velocity of propagation | : 75% |
| Maximum transfer impedance up to 3 GHz | : 30 mΩ/m |
Attenuation and Power Handling
| Frequency | Max. Rated Power | Max. Attenuation at 20°C |
| (MHz) | (W) | (dB/100m) |
| 50 | 110 | 11 |
| 200 | 660 | 19 |
| 400 | 450 | 28 |
| 1000 | 250 | 47 |
| 3000 | 150 | 90 |
Eigenschaften
Eigenschaften
Anwendungsmerkmale
Anwendungsmerkmale
Ressourcen
Ressourcen
Verkauf & Lieferung Informationen
Colour of jacket : White
Colour of marking: Black
Marking text : " EN WZ FRF** "
FR = Country of Origin (FR = France)
F = Manufacturer (F = Nexans)
(**) = Year of manufacturing (ie. 14 = 2014)
