ABS 0949 - AD AWG 24 to 4
ABS 0949 - AD AWG 24 to 4
Designed for general purpose aircraft wiring applications.
Nickel Copper Clad Aluminium Alloy Conductors, UV laser printable
Beschreibung
Beschreibung
Normen
-
ProduktABS 0958; ABS 0949 AD

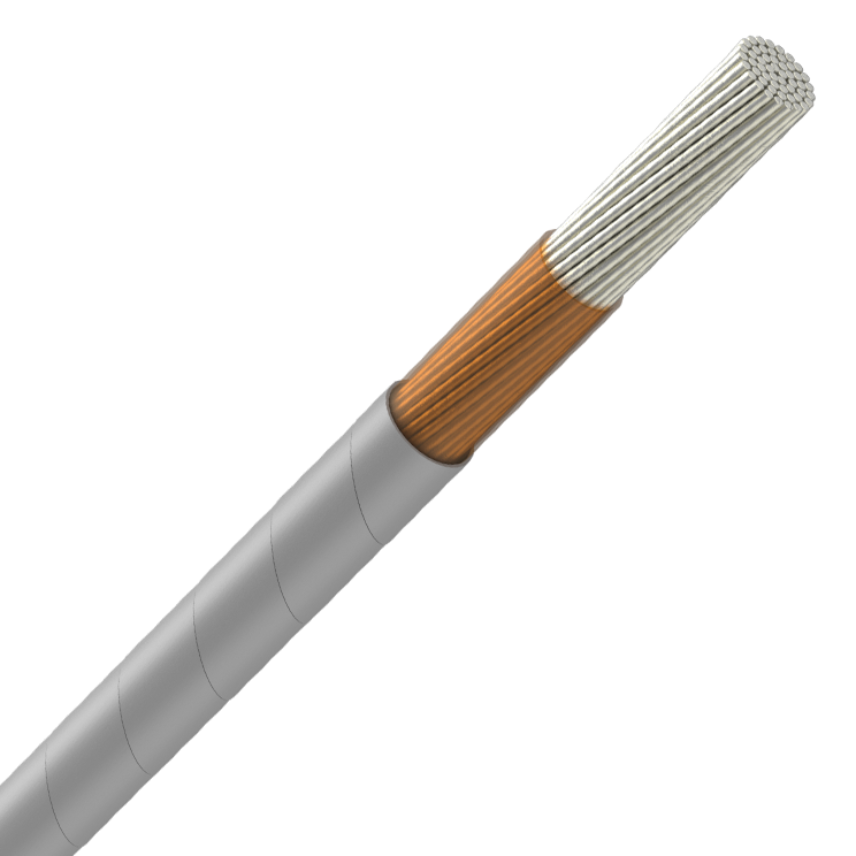

CONDUCTOR
- AWG 24 and 22
- 1 nickel plated copper alloy wire
- + 6 nickel copper clad aluminium alloy wire
- AWG 20 to 8
- Nickel copper clad aluminium alloy concentric conductor
- AWG 6 and 4
- Nickel copper clad aluminium alloy rope-lay conductor
INSULATION
- High performance polyimide tape
- Special UV PTFE tape
IDENTIFICATION
- Standard colour : Grey
Colour of marking : Green for AWG22, Blue for other gauges
Marking text : " AD ** FR F++ "
** = AWG
FR = Country of origin (FR = France)
F = Manufacturer (F = Nexans)
++= Year of production (i.e. 14 = 2014)
STANDARDS
International EN3475
National ABS 0958, ABS 0949 AD
Eigenschaften
Eigenschaften
Konstruktionsmerkmale
Konstruktionsmerkmale
Aderkennzeichnung
-
Isolationsfarbe
-
Isolationsmaterial
-
Elektrische Eigenschaften
Elektrische Eigenschaften
Betriebsspannung
600 V
Maximale Betriebsfrequenz
- MHz
Max. DC resistance of the conductor at 20°C (Ohm/km)
-
Anwendungsmerkmale
Anwendungsmerkmale
Betriebstemperatur
-60 ... 180 °C
Ölbeständig
Very good resistance to aircraft fluids
Arc tracking resistant
Ja
RoHS konform
ja
