EN 2714-014 MMD, MME, MMF, MMG, MMH, MMJ, MMK
EN 2714-014 MMD, MME, MMF, MMG, MMH, MMJ, MMK
Designed for general Purpose Aircraft Wiring Applications.
260°C, Screened and Jacketed,
Light Weight,
UV cable,
Arc Tracking Resistant
Beschreibung
Beschreibung
Normen
-
ProduktEN 2267-009; EN 2714-014

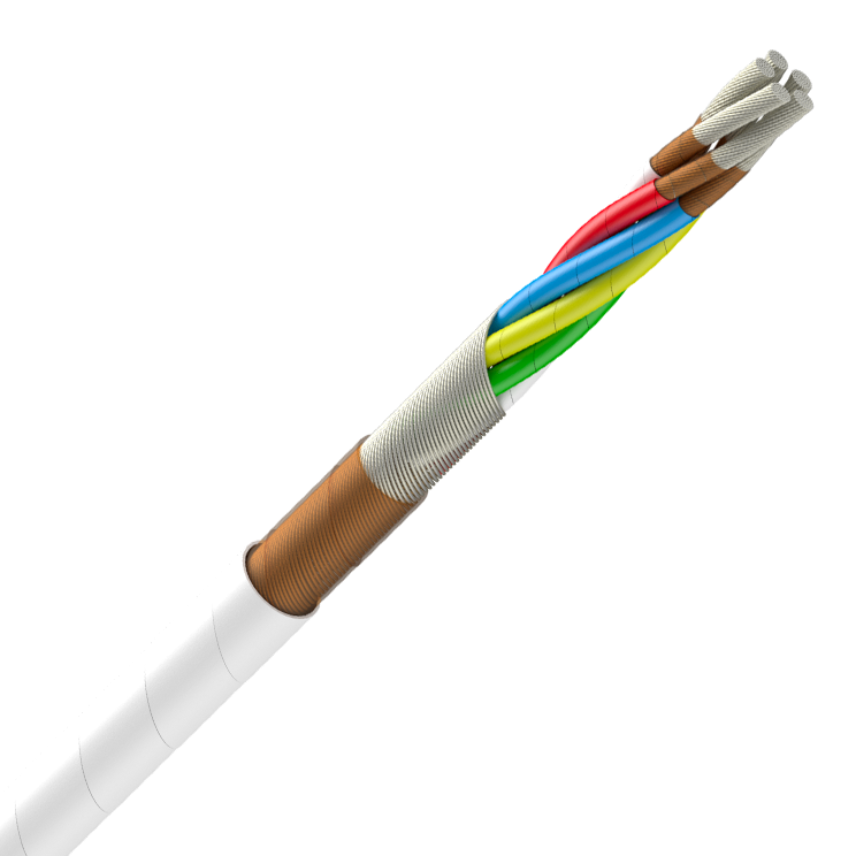

CORES
EN 2267-009A
Polyimide tape
SCREEN
Nickel plated copper braid
JACKET
Polyimide tape
UV PTFE tape
Identification
| Short Designation | |
| 4 cores | : MMD |
| 5 cores | : MME |
| 6 cores | : MMF |
| 7 cores | : MMG |
| 8 cores | : MMH |
| 9 cores | : MMJ |
| 10 cores | : MMK |
| 11 cores | : MML |
| Cores | |
| Colours | : See table on this datasheet |
| Marking | : EN DR A ++ FRF** |
| Colour of marking | : White for Black / Red / Brown / Green and Violet core |
| Green for Blue / Yellow / White / Orange / Grey and Light green core | |
| Jacket | |
| Colours | : See table on this datasheet |
| Marking | : EN xxx ++ FRF** |
| Colour of marking | : Green |
| xxx = Short designation (MMD, MME, ...) | |
| ++ = AWG | |
| FR = Country Origin (FR = France) | |
| F = Manufacturer (F = NEXANS) | |
| ** = Year of manufacturing (ie. 19 = 2019) |
Eigenschaften
Eigenschaften
Elektrische Eigenschaften
Elektrische Eigenschaften
Maximale Betriebsfrequenz
- MHz
Betriebsspannung Vo DC
28 V
Max. DC resistance of the conductor at 20°C (Ohm/km)
-
Operating voltage between phase and neutral
115 V
Operating voltage between phases
200 V
Anwendungsmerkmale
Anwendungsmerkmale
Betriebstemperatur
-55 ... 260 °C
Flammwidrig
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3)
Ölbeständig
Very good resistance to aircraft fluids
Arc tracking resistant
Ja
